- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
- Solid construction with machined base was designed for minimal gaps and no fillers
- Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
CRPS-PN31 RMT

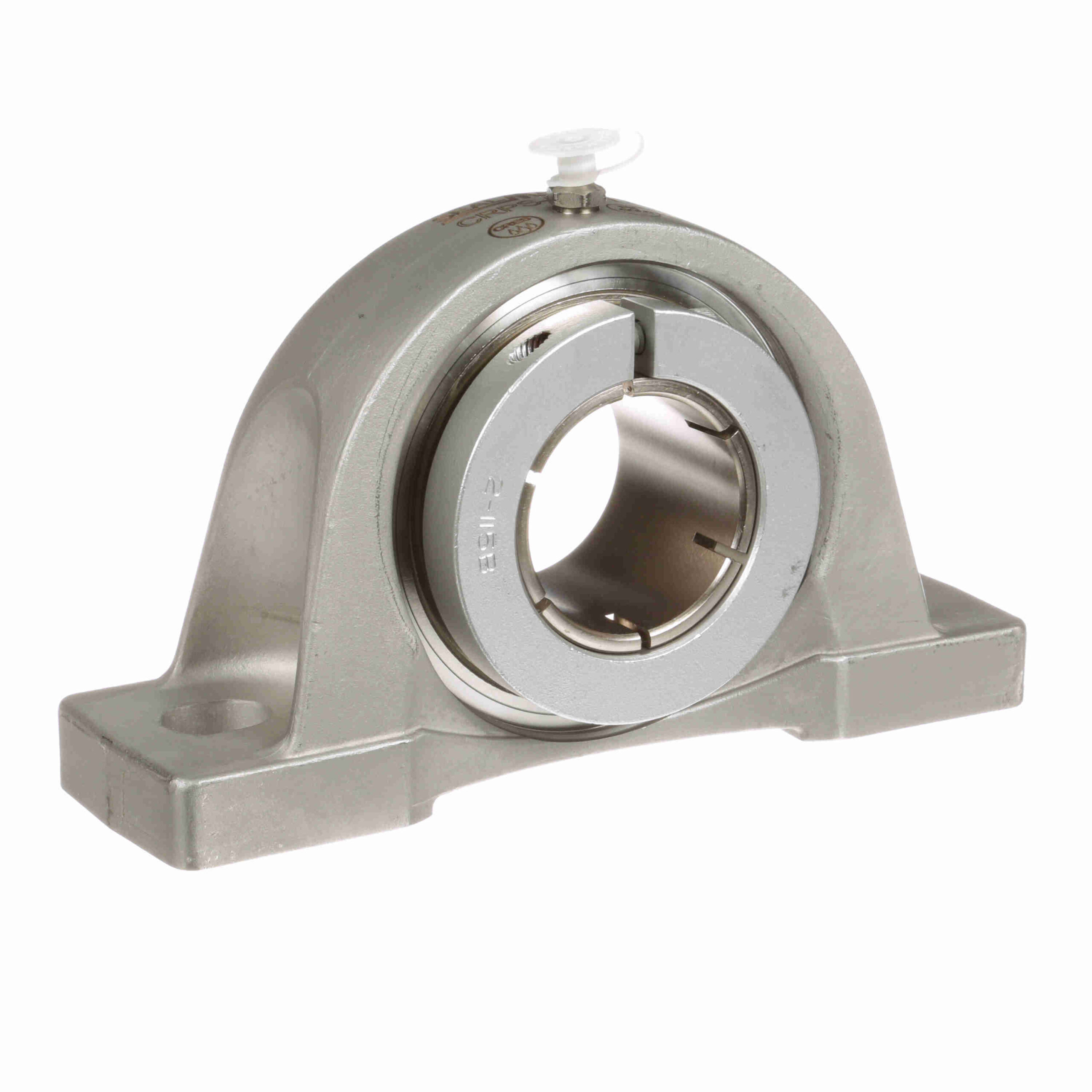

Sealmaster Mounted Stainless Steel Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Setscrew Lock – Corrosion Resistant – Reduced Maintenance – Lubed for Life – CRPS-PN31 RMT
$2,028.35
Out of stock
Out of stock
| Internal Clearance: | Standard | Insert Material: | 52100 Bearing Steel, Phosphorus Nickel Coated |
|---|---|---|---|
| Measure Units: | Inch | Housing Base: | Solid |
| Rolling Element: | Ball Bearing | Seal Type: | V Spring Seal Seal |
| Radial Dynamic Load Capacity (lb): | 7, 889 lb | Bore Shape: | Straight |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Construction: | One Piece |
| Replaceable Insert: | Yes | Platform: | PN Gold |
| Bearing Insert Coating: | Phosphorus Nickel Coated | Options: | Corrosion Resistant - Reduced Maintenance - Lubed for Life |
| Misalignment Type: | Static Only | End Cap: | No |
| Outer Ring Land Profile: | Tapered Lands | Housing Color: | Silver |
| Certifications: | IP69K | Radial Static Load Capacity (lb): | 5, 216 lb |
| Cage Material: | PPS | Housing Type: | Pillow Block, Two Bolt |
| Lubrication Type: | Lithium Complex Grease With Synthetic Oil | Maximum Speed (RPM): | 1500 rpm |
| Housing Material: | Stainless Steel | Fixed vs. Expansion: | Fixed |
| Housing Style: | Pillow Block | Locking Type: | Setscrew |
| Duty/Series: | Standard Duty | Retainer Type: | Land Riding Retainer |
| Inner Race Heat Treat Method: | Zone-Hardened | Ability to Relubricate: | No |
| Maximum Operating Temperature (F): | 220 °F | Insert Number: | PN-31 RMG |
| UPC: | 662461000000 | Weight: | 7.90 LB |
| Packaged Length: | 9 Inches | Packaged Width: | 5.19 Inches |
| Packaged Height: | 2.38 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
