- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
- Solid construction with machined base was designed for minimal gaps and no fillers
- Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
CRFTS-PN210T RMW

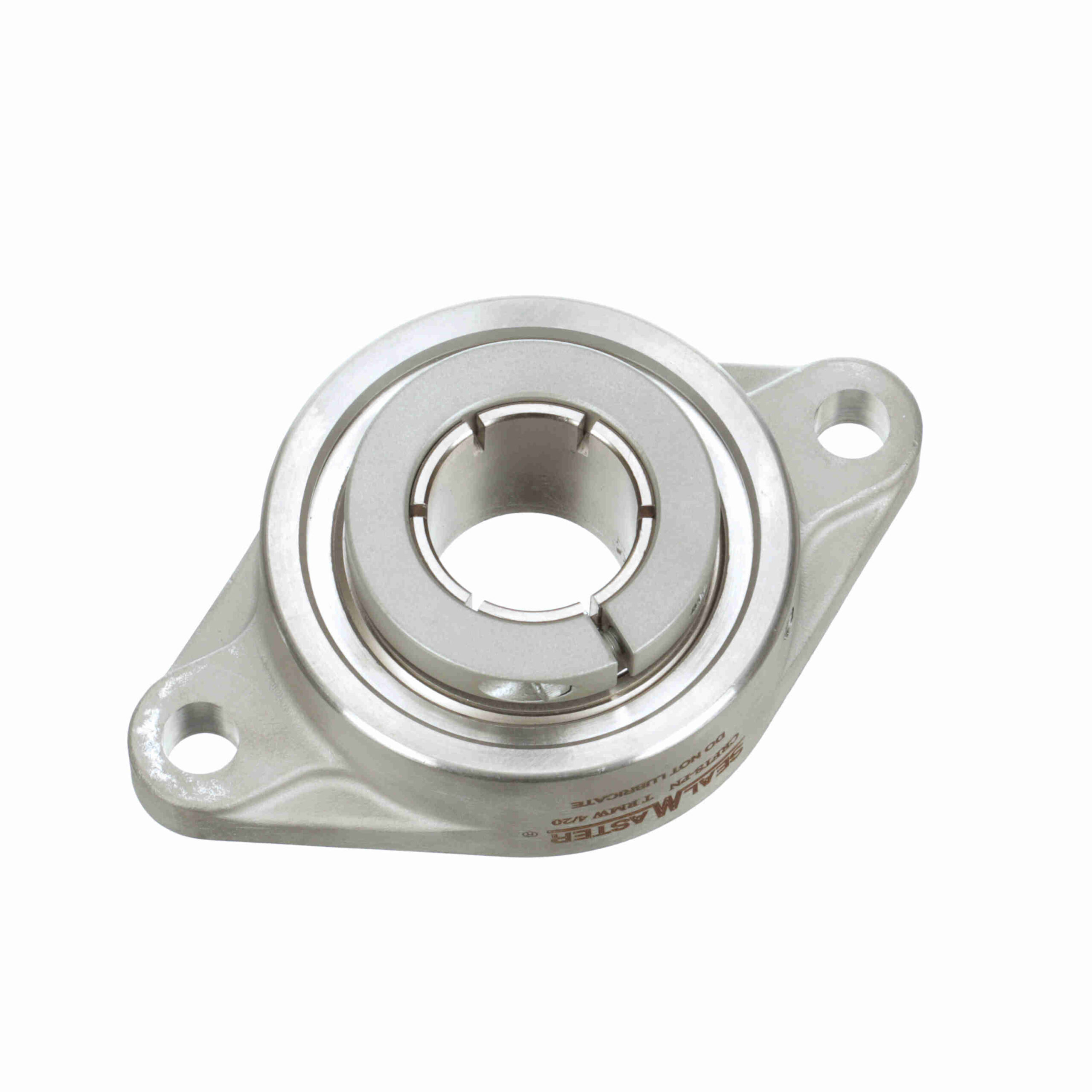

Sealmaster Mounted Stainless Steel Two Bolt Flange Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Concentric Lock – Corrosion Resistant – Reduced Maintenance – Lubed for Life – CRFTS-PN210T RMW
$623.07
Out of stock
Out of stock
| Insert No.: | PN-210T | Inner-Race Heat-Treat Method: | Zone-Hardened |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Seal Type: | Multi-Lip Contact Seal |
| Maximum Operating Temperature: | 220 °F | Expansion: | No |
| Insert Material: | 52100 Bearing Steel, Phosphorus Nickel Coated | Retainer Type: | Land Riding Retainer |
| Housing Material: | Stainless Steel | Housing Base: | Solid |
| Measure Units: | Metric | Duty Series: | Standard Duty |
| Pilot Configuration: | No Pilot | Relubricatable: | No |
| Speed (Max): | 1500 | Housing Type: | Flange, Two Bolt |
| Locking Type: | Concentric | Internal Clearance: | Standard |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Construction: | One Piece |
| Bore Shape: | Straight | Lubrication: | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease |
| Radial Dynamic Load Capacity (lb): | 7, 889 | Outer Ring Land Profile: | Tapered Lands |
| Housing Color: | Silver | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | End Cap: | Yes |
| Bearing Insert Coating: | Phosphorus Nickel Coated | Platform: | PN Gold |
| Backside Shield/Seal: | Optional backside shield available order separate | Options: | Corrosion Resistant - Reduced Maintenance - Lubed for Life |
| Certifications: | IP69K | Radial Static Load Capacity (lb): | 5, 216 |
| Cage Material: | PPS | Grease Fitting Thread Size: | 1/ 8-27 |
| UPC: | 662461370773 | Weight: | 6.70 LB |
| Packaged Length: | 4.63 Inches | Packaged Width: | 2.31 Inches |
| Packaged Height: | 7.5 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
