- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
- Solid construction with machined base was designed for minimal gaps and no fillers
- Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
CRFS-PN16T

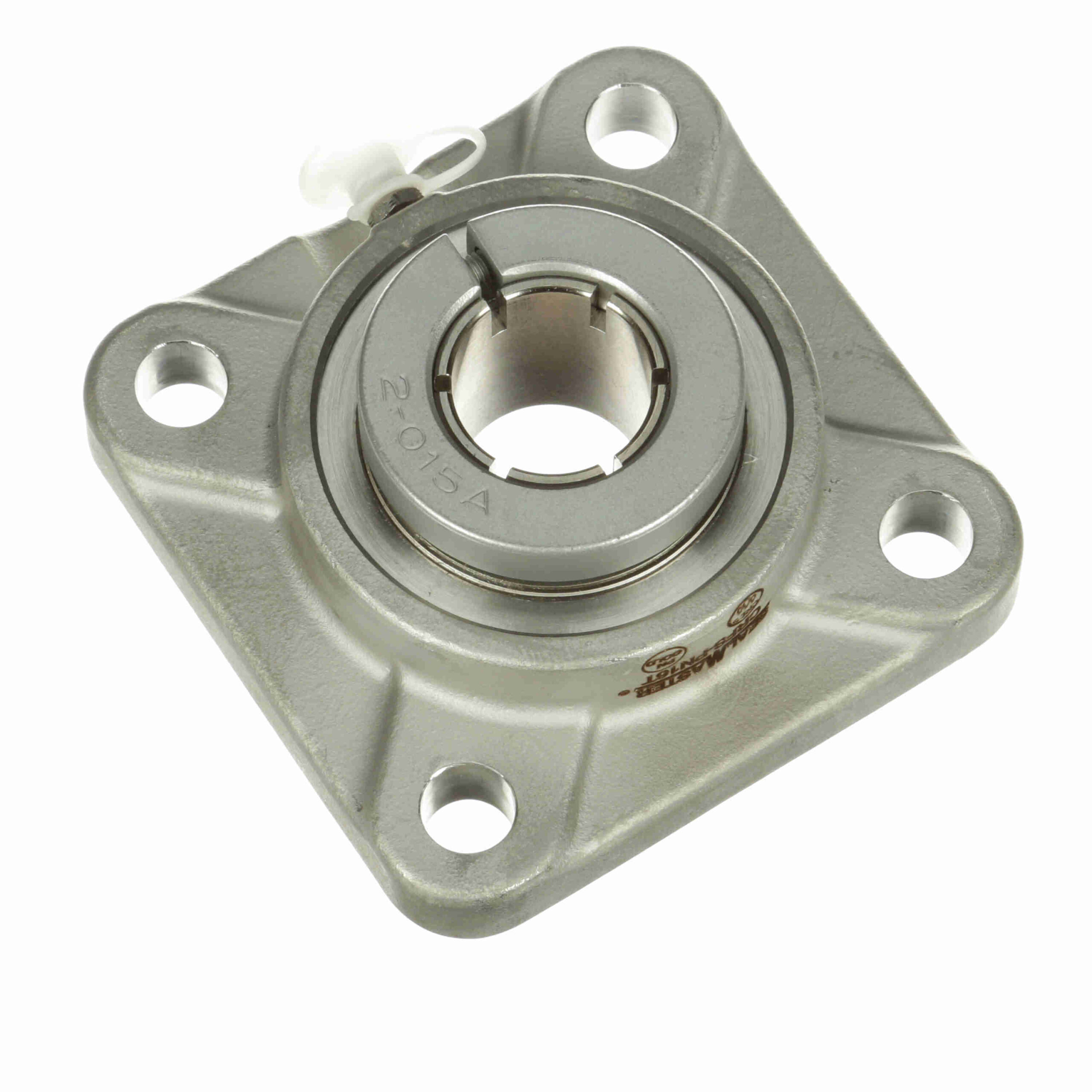

Sealmaster Mounted Stainless Steel Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Concentric Lock – Corrosion Resistant – CRFS-PN16T
$344.72
Out of stock
Out of stock
| Insert Material: | 52100 Bearing Steel, Phosphorus Nickel Coated | Housing Type: | Flange, Four Bolt |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Maximum Operating Temperature: | 220 °F |
| Seal Type: | Multi-Lip Contact Seal | Housing Material: | Stainless Steel |
| Retainer Type: | Land Riding Retainer | Measure Units: | Inch |
| Insert No.: | PN-16T | Housing Base: | Solid |
| Duty Series: | Standard Duty | Bore Shape: | Straight |
| Expansion: | No | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Radial Dynamic Load Capacity (lb): | 2, 801 | Relubricatable: | Yes |
| Pilot Configuration: | No Pilot | Speed (Max): | 2700 |
| Locking Type: | Concentric | Internal Clearance: | Standard |
| Lubrication: | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease | Housing Construction: | One Piece |
| Misalignment: | ±2.0° Misalignment - Static Only | Outer Ring Land Profile: | Standard |
| Replaceable Insert: | Yes | Options: | Corrosion Resistant |
| Housing Color: | Silver | Misalignment Type: | Static Only |
| Platform: | PN Gold | End Cap: | Yes |
| Bearing Insert Coating: | Phosphorus Nickel Coated | Backside Shield/Seal: | Optional backside shield available order separate |
| T Core: | 2.38 | Certifications: | IP69K |
| Radial Static Load Capacity (lb): | 1, 651 | Cage Material: | PPS |
| UPC: | 662461347829 | Weight: | 2.10 LB |
| Packaged Length: | 4 Inches | Packaged Width: | 1.5 Inches |
| Packaged Height: | 3.94 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
