- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- High strength composite with reinforced stainless steel bolt ferrules for high load capacity and increased strength around the bolt holes.
- Solid construction with machined base was designed for minimal gaps and no fillers
- Zone hardened inner ring with 120? spacing setscrew lock with corrosion resistant setscrews
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity , ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
CRFC-PN22

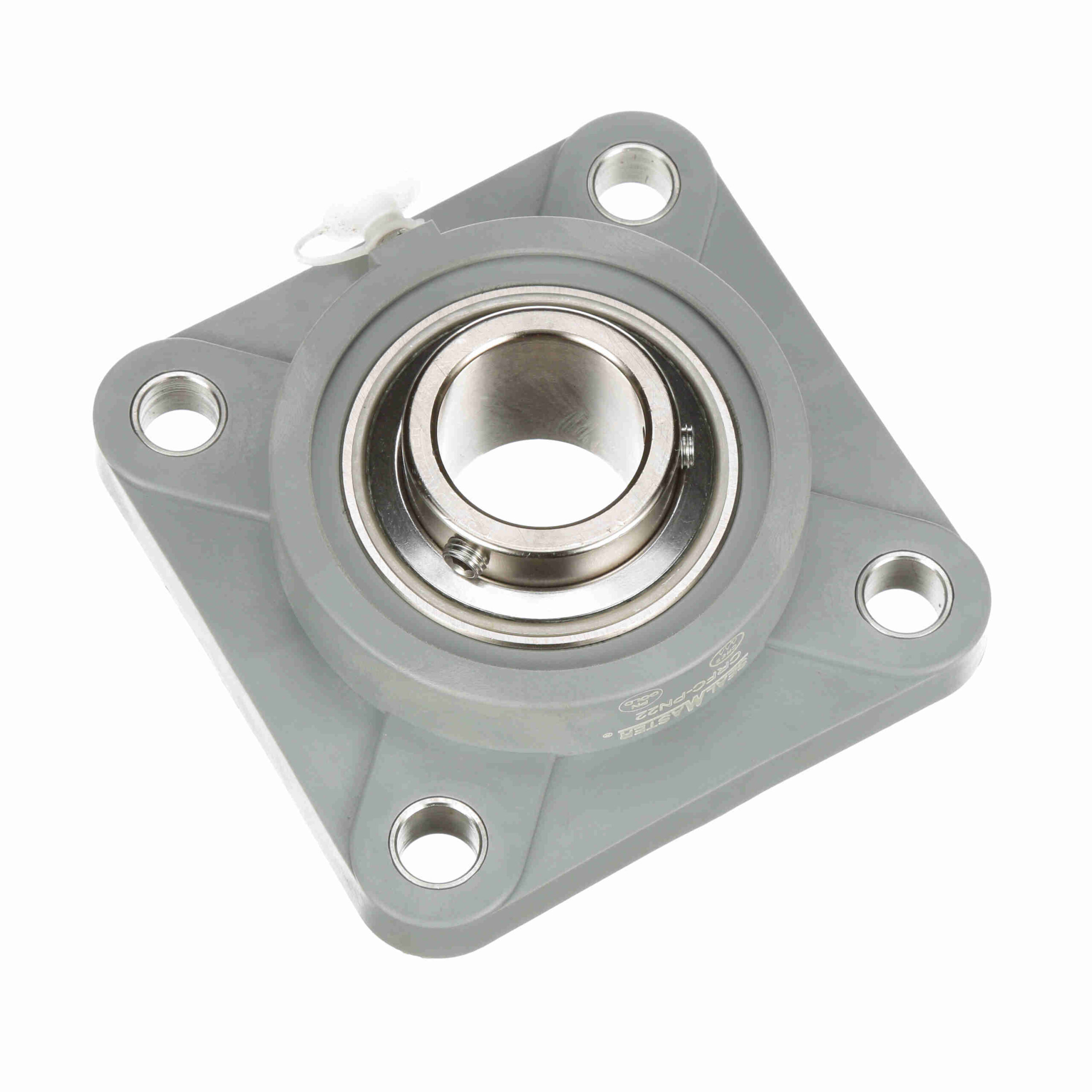

Sealmaster Mounted Composite Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Setscrew Lock – Corrosion Resistant – CRFC-PN22
$191.75
Out of stock
Out of stock
| Insert Material: | 52100 Bearing Steel; Phosphorus Nickel Coated | Duty Series: | Standard Duty |
|---|---|---|---|
| Insert No.: | PN-22 | Housing Base: | Solid |
| Seal Type: | Multi-Lip Contact Seal | Maximum Operating Temperature: | 220 °F |
| Retainer Type: | Land Riding Retainer | Housing Type: | Flange; Four Bolt |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Bore Shape: | Straight |
| Measure Units: | Inch | Expansion: | No |
| Housing Material: | Composite | Rolling Element: | Ball Bearing |
| Radial Dynamic Load Capacity (lb): | 5, 782 | Relubricatable: | Yes |
| Pilot Configuration: | No Pilot | Misalignment: | ±2.0° Misalignment - Static Only |
| Locking Type: | Setscrew | Lubrication: | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease |
| Set Screw Thread: | 5/16-24 UNF X .25 | Speed (Max): | 2000 |
| Internal Clearance: | Standard | Housing Construction: | One Piece |
| Replaceable Insert: | Yes | End Cap: | Yes |
| Outer Ring Land Profile: | Standard | Housing Color: | Light Gray |
| Bearing Insert Coating: | Phosphorus Nickel Coated | Options: | Corrosion Resistant |
| Platform: | PN Gold | Misalignment Type: | Static Only |
| T Core: | 2.9375 | Certifications: | IP69K |
| Radial Static Load Capacity (lb): | 3, 493 | Cage Material: | PPS |
| Grease Fitting Thread Size: | 1/4-28 NF | UPC: | 662461338711 |
| Weight: | 1.94 LB | Packaged Length: | 5 Inches |
| Packaged Width: | 2 Inches | Packaged Height: | 5 Inches |
| HTC: | 8483.20.4040 |
