- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal
VTBE-120S

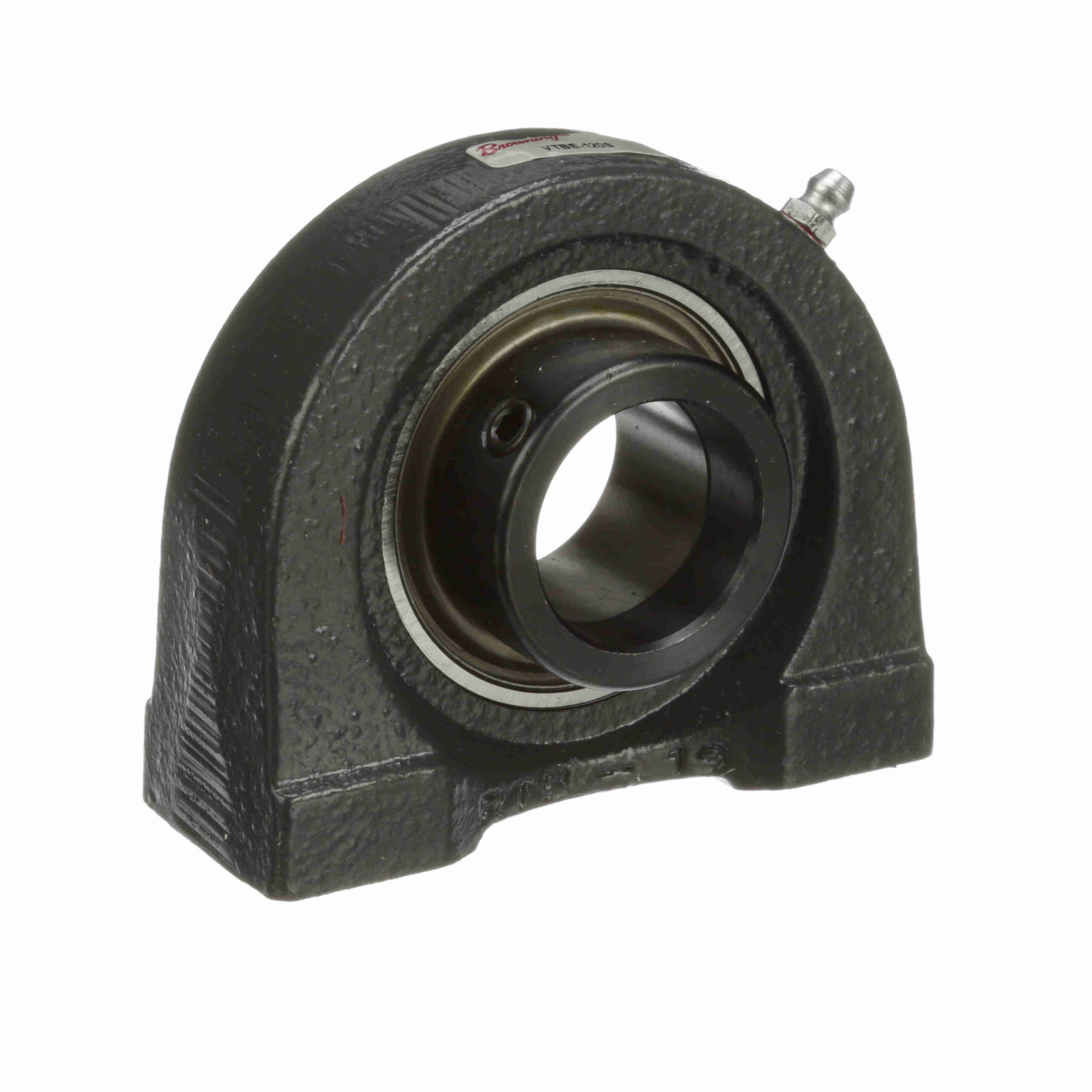

Browning Mounted Cast Iron Tapped Base Pillow Block Ball Bearing – 52100 Bearing Steel – Eccentric Lock – VTBE-120S
$86.90
Out of stock
Out of stock
| Seal Type: | Single Lip Contact Seal | Housing Base: | Semi-Solid |
|---|---|---|---|
| Housing Type: | Pillow Block; Tapped Base | Housing Material: | Cast Iron |
| Measure Units: | Inch | Insert No.: | VE-120S |
| Duty Series: | Intermediate Duty | Speed (Max): | 3000 |
| Rolling Element: | Ball Bearing | Retainer Type: | Ball Riding Retainer |
| Expansion: | No | Maximum Operating Temperature: | 200 °F |
| Insert Material: | 52100 Bearing Steel | Internal Clearance: | Standard |
| Locking Type: | Eccentric | Housing Construction: | One Piece |
| Bore Shape: | Straight | Misalignment: | ±1.5° Misalignment - Static Only |
| Lubrication: | Lithium Complex NLGI 2 Grease | Relubricatable: | Yes |
| Radial Dynamic Load Capacity (lb): | 4, 381 | Outer Ring Land Profile: | Standard |
| End Cap: | No | Retainer Material: | Molded fiber glass reinforced nylon |
| Replaceable Insert: | Yes | Bearing Insert Coating: | Uncoated |
| Misalignment Type: | Static Only | Housing Color: | Gray |
| Radial Static Load Capacity (lb): | 2, 567 | UPC: | 662460339429 |
| Weight: | 2.67 LB | Packaged Length: | 3.7 Inches |
| Packaged Width: | 6 Inches | Packaged Height: | 1.8 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
