- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
- Solid construction with machined base was designed for minimal gaps and no fillers
- Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
CRBFRS-PN207T RMW

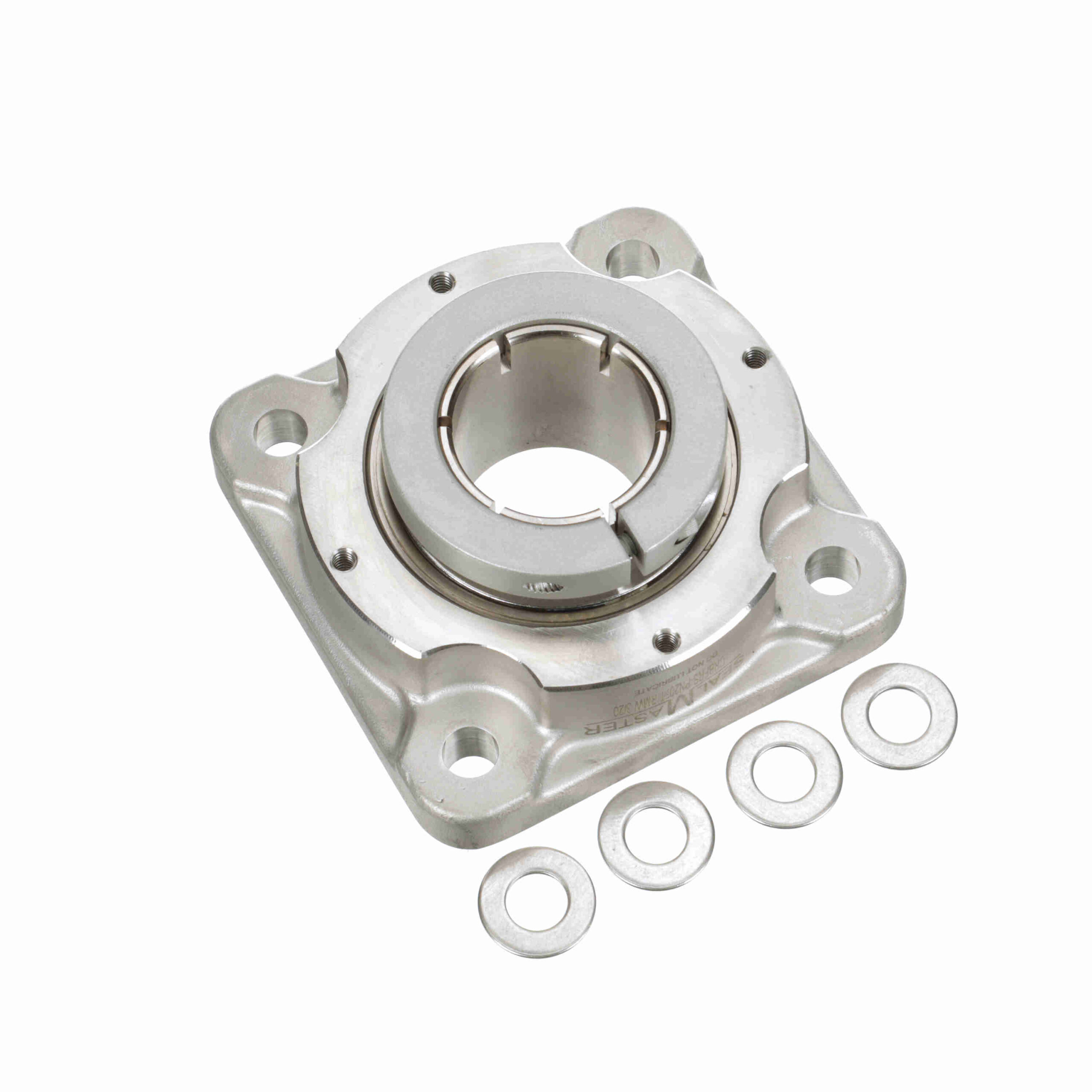

Sealmaster Mounted Stainless Steel Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Concentric Lock – Corrosion Resistant – Reduced Maintenance – Lubed for Life – CRBFRS-PN207T RMW
Out of stock
| Measure Units: | Metric | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Bore Shape: | Straight | Seal Type: | Multi-Lip Contact Seal |
| Housing Base: | Solid | Insert Material: | 52100 Bearing Steel, Phosphorus Nickel Coated |
| Radial Dynamic Load Capacity (lb): | 7, 340 lb | Pilot Configuration: | No Pilot |
| Housing Construction: | One Piece | Internal Clearance: | Standard |
| Misalignment: | ±2.0° Misalignment - Static Only | Outer Ring Land Profile: | Tapered Lands |
| End Cap: | No | Bearing Insert Coating: | Phosphorus Nickel Coated |
| Replaceable Insert: | Yes | Misalignment Type: | Static Only |
| Options: | Corrosion Resistant - Reduced Maintenance - Lubed for Life | Platform: | PN Gold |
| Backside Shield/Seal: | Backside Shield included loose in box | Housing Color: | Silver |
| Certifications: | IP69K | Radial Static Load Capacity (lb): | 4, 467 lb |
| Cage Material: | PPS | Maximum Speed (RPM): | 1750 rpm |
| Housing Type: | Flange, Four Bolt | Retainer Type: | Land Riding Retainer |
| Duty/Series: | Standard Duty | Housing Material: | Stainless Steel |
| Fixed vs. Expansion: | Fixed | Lubrication Type: | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease |
| Housing Style: | Flange Block | Locking Type: | Concentric |
| Maximum Operating Temperature (F): | 220 °F | Inner Race Heat Treat Method: | Zone-Hardened |
| Ability to Relubricate: | No | Insert Number: | SK-2624 |
| UPC: | 662461395387 | Weight: | 5.50 LB |
| Packaged Length: | 5.5 Inches | Packaged Width: | 2.13 Inches |
| Packaged Height: | 5.5 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
