- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Slot hole
- LUBRI-DISC® seal
- Heavy stud configuration

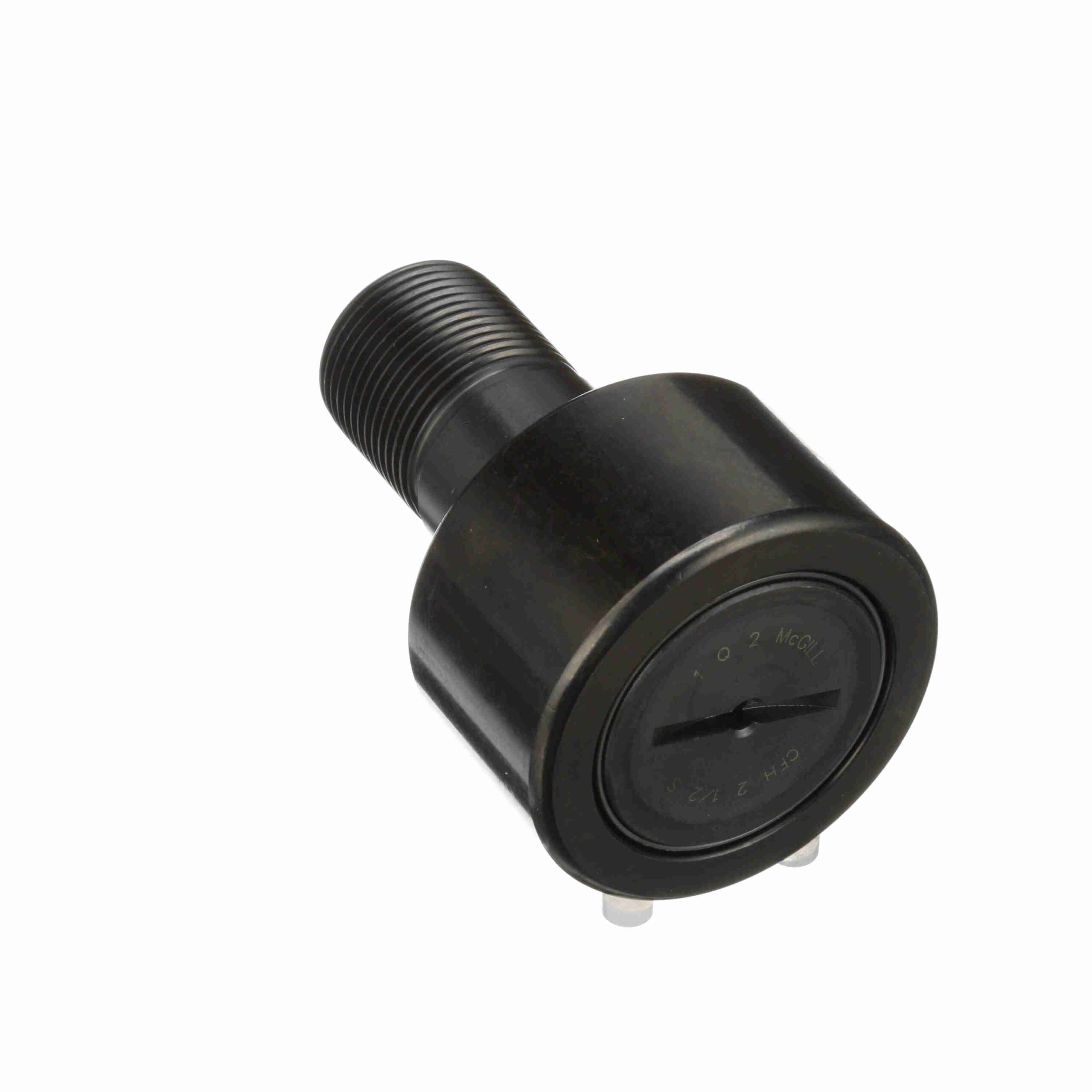

CFH 2 1/2 S
McGill Heavy Stud CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Screwdriver Slot – Sealed – CFH 2 1/2 S
$94.13
Availability: 11 in stock
Availability: 11 in stock
| O.D. Configuration: | Cylindrical | Sealing: | Sealed |
|---|---|---|---|
| Rolling Element: | Needle Roller - Full Complement | Hex/Slot: | Screwdriver Slot |
| Adjustment: | None | Series: | Inch CAMROL® |
| Limiting Speed: | 1 | Material: | Bearing Steel, Black Oxide Finish |
| Stud Type: | Heavy Stud | Tolerance Class: | P0 Equivalent |
| Dynamic Load Rating (lb): | 11, 720 lb | Platform: | CAMROL® |
| Static Load Rating: | 21 | Roller Shape: | Cylindrical |
| Clamping Torque (in-lbf): | 3, 450 lbs | Ability to Relubricate: | Yes |
| UPC: | 726166038472 | Weight: | 2.64 LB |
| Packaged Length: | 2.81 Inches | Packaged Width: | 2.81 Inches |
| Packaged Height: | 3.93 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
