- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- Heavy stud configuration

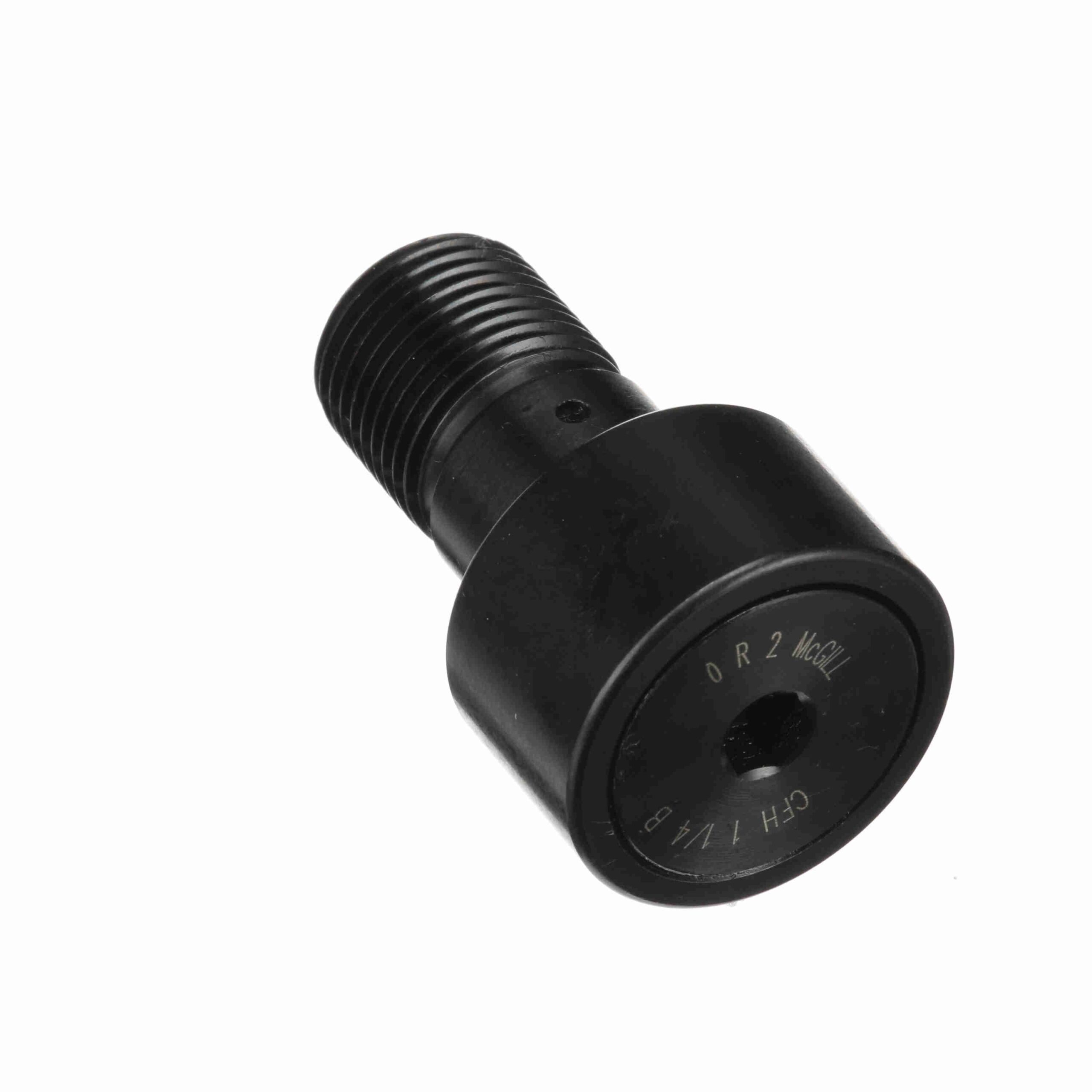

CFH 1 1/4 B
McGill Heavy Stud CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Hex Hole – CFH 1 1/4 B
$37.15
Availability: 83 in stock
Availability: 83 in stock
| Adjustment: | None | Limiting Speed: | 3 |
|---|---|---|---|
| Series: | Inch CAMROL® | Rolling Element: | Needle Roller - Full Complement |
| Sealing: | Unsealed | Hex/Slot: | Hex Hole |
| O.D. Configuration: | Cylindrical | Material: | Bearing Steel, Black Oxide Finish |
| Dynamic Load Rating (lb): | 3, 930 lb | Platform: | CAMROL® |
| Tolerance Class: | P0 Equivalent | Roller Shape: | Cylindrical |
| Stud Type: | Heavy Stud | Static Load Rating: | 8 |
| Ability to Relubricate: | Yes | Clamping Torque (in-lbf): | 1, 250 lbs |
| UPC: | 726166034603 | Weight: | 0.40 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
