- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- Eccentric configuration
CFE 2 1/2 B

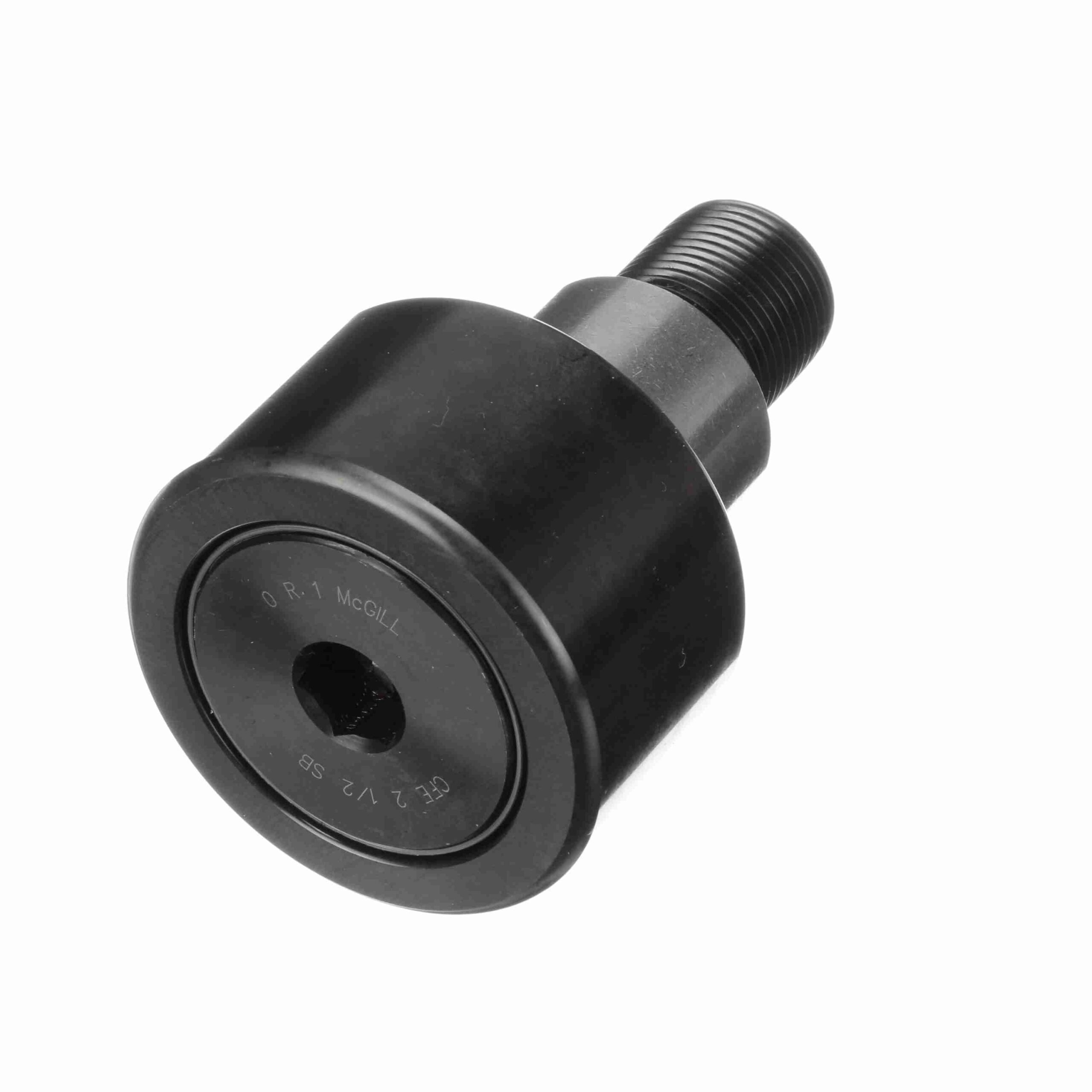

McGill CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Hex Hole – CFE 2 1/2 B
Out of stock
| Dynamic Radial Rating: | 12 | Rolling Element: | Needle Roller - Full Complement |
|---|---|---|---|
| Hex/Slot: | Hex Hole | Adjustment: | Eccentric Bushing |
| Limiting Speed: | 1 | Series: | Inch CAMROL® |
| Sealing: | Unsealed | O.D. Configuration: | Cylindrical |
| Material: | Bearing Steel, Black Oxide Finish | Static Load Rating: | 10 |
| Stud Type: | Standard Stud with Eccentric Bushing | Roller Shape: | Cylindrical |
| Dynamic Load Rating (lb): | 11, 720 lb | Platform: | CAMROL® |
| Tolerance Class: | P0 Equivalent | Clamping Torque (in-lbf): | 2, 250 lbs |
| Ability to Relubricate: | Yes | UPC: | 726166038359 |
| Weight: | 2.72 LB | Packaged Length: | 2.81 Inches |
| Packaged Width: | 2.81 Inches | Packaged Height: | 3.93 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
