- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SK 1 3/16

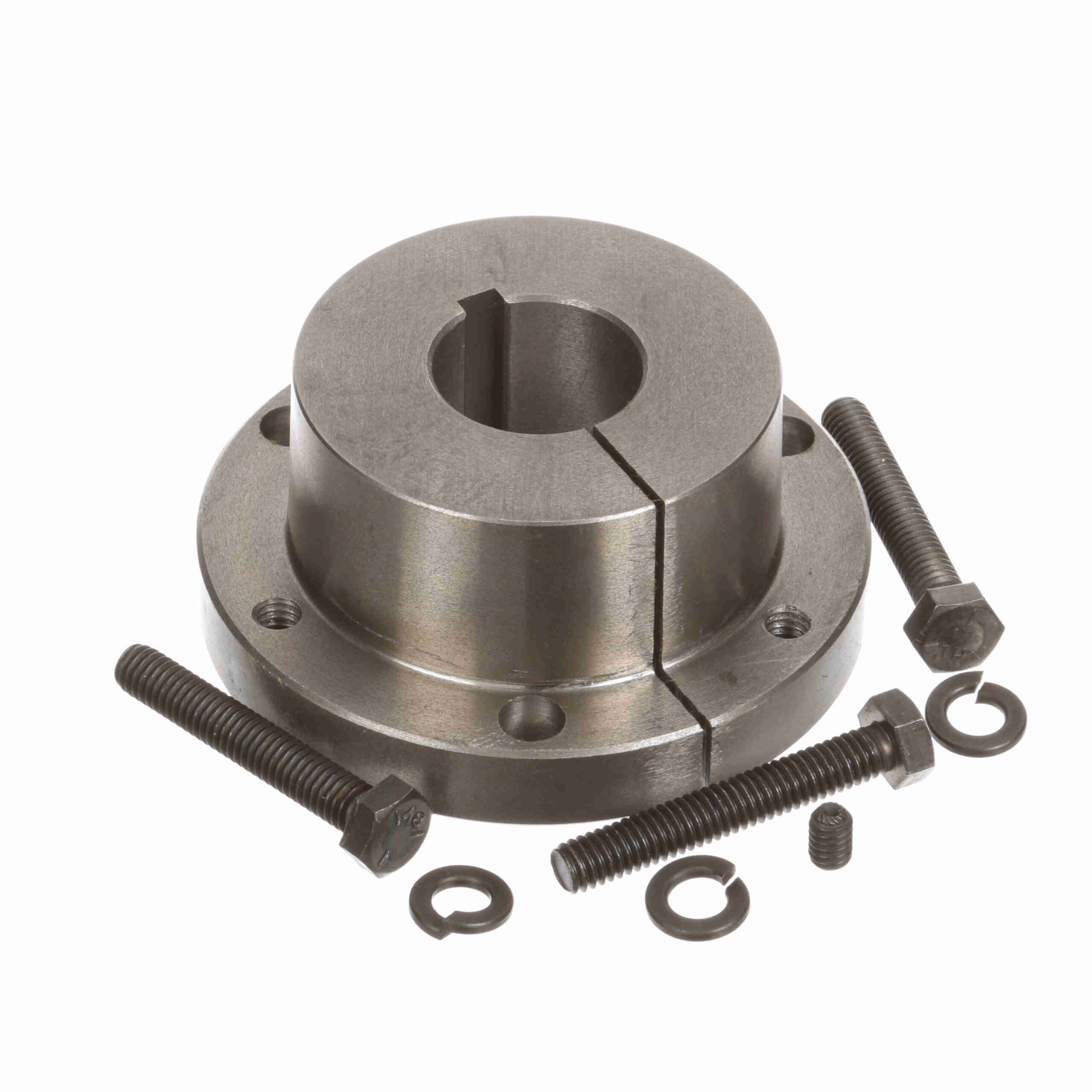

Browning Q-D Bushing – Inch Bore Type – SK 1 3/16
Out of stock
| Total Length (in): | 1.75 in | Compatible Bore Size [Max] (in): | 1.1875 in |
|---|---|---|---|
| Bore Type: | Inch | Mounting Type: | Conventional |
| Bushing Type: | SK | Keyway: | 1/4 x 1/8 |
| Product Type: | Q-D Bushing | Length Through Bore (in): | 1.75 in |
| Wrench Torque (ft.-lbs.): | 15 | Torque Capacity (in-lb): | 7, 000 |
| Cap Screws (No.): | 3 | Cap Screws (Bolt Circle): | 3.3125 |
| Outside Diameter (in): | 3.875 in | Model Name: | QD-SK_Bushing_Master |
| Cap Screws (Size): | 5/16-18 x 2 | Bore Size (in): | 1.1875 in |
| Flange Thickness: | 0.5625 in | Barrel Length: | 1.1875 in |
| Barrel Diameter: | 2.8125 in | Material: | Ductile Iron - 65-45-41 |
| UPC: | 662289415717 | Weight: | 3.10 LB |
| Packaged Length: | 4.19 Inches | Packaged Width: | 4.19 Inches |
| Packaged Height: | 2.5 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
