- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
- Eccentric configuration
CFE 1 3/4 SB

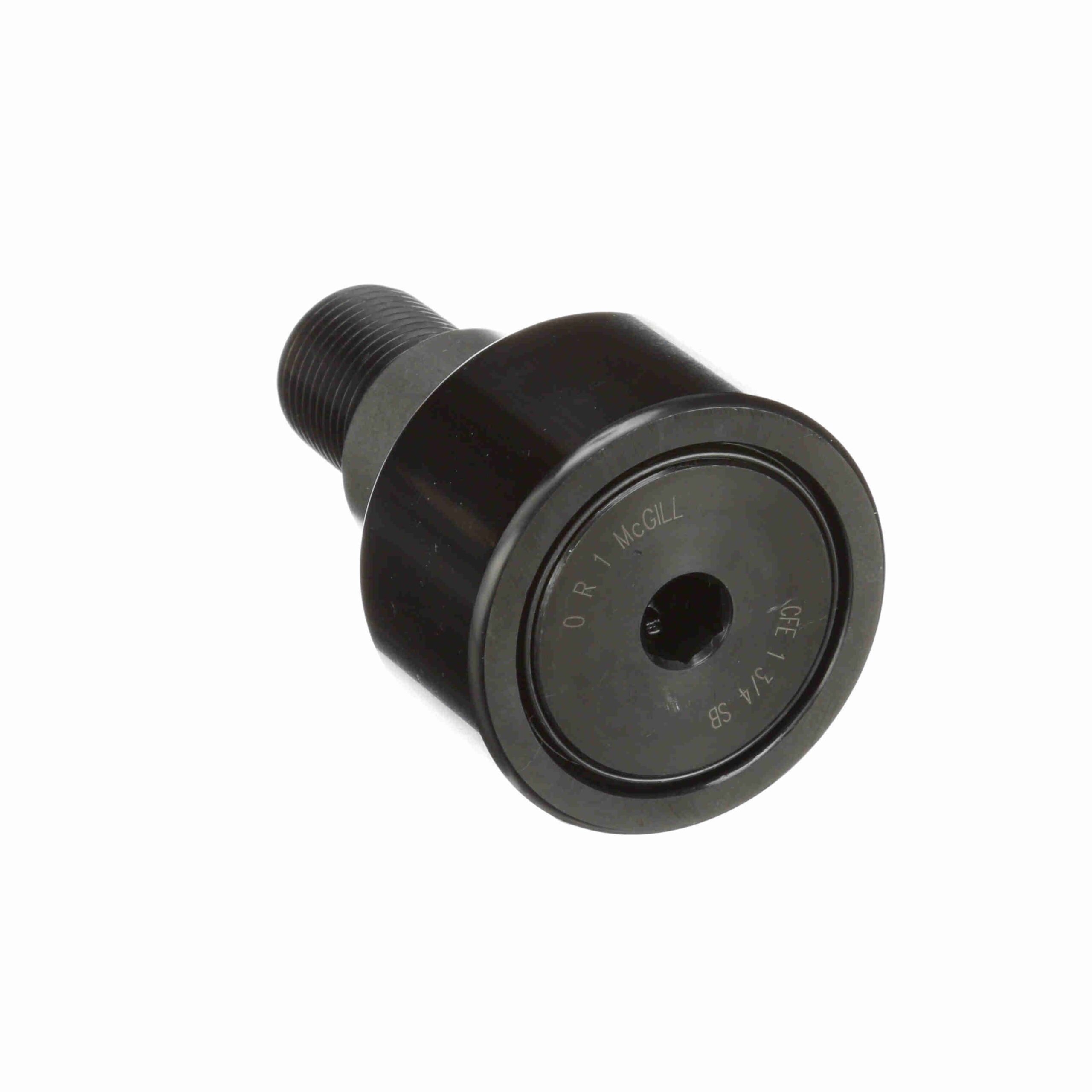

McGill CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Hex Hole – Sealed – CFE 1 3/4 SB
$51.35
Availability: 42 in stock
Availability: 42 in stock
| Series: | Inch CAMROL® | Sealing: | Sealed |
|---|---|---|---|
| Rolling Element: | Needle Roller - Full Complement | Hex/Slot: | Hex Hole |
| O.D. Configuration: | Cylindrical | Limiting Speed: | 2 |
| Dynamic Radial Rating: | 6 | Adjustment: | Eccentric Bushing |
| Material: | Bearing Steel, Black Oxide Finish | Stud Type: | Standard Stud with Eccentric Bushing |
| Platform: | CAMROL® | Tolerance Class: | P0 Equivalent |
| Roller Shape: | Cylindrical | Static Load Rating: | 8 |
| Dynamic Load Rating (lb): | 6, 385 lb | Lubrication Hole Location: | Stud side |
| Clamping Torque (in-lbf): | 1, 250 lbs | Ability to Relubricate: | Yes |
| UPC: | 726166036560 | Weight: | 0.86 LB |
| Packaged Length: | 2 Inches | Packaged Width: | 2 Inches |
| Packaged Height: | 2.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
