- Heavy duty stud type cam follower
- Cylindrical outside diameter
- Full complement cylindrical rolling elements
- Hex hole

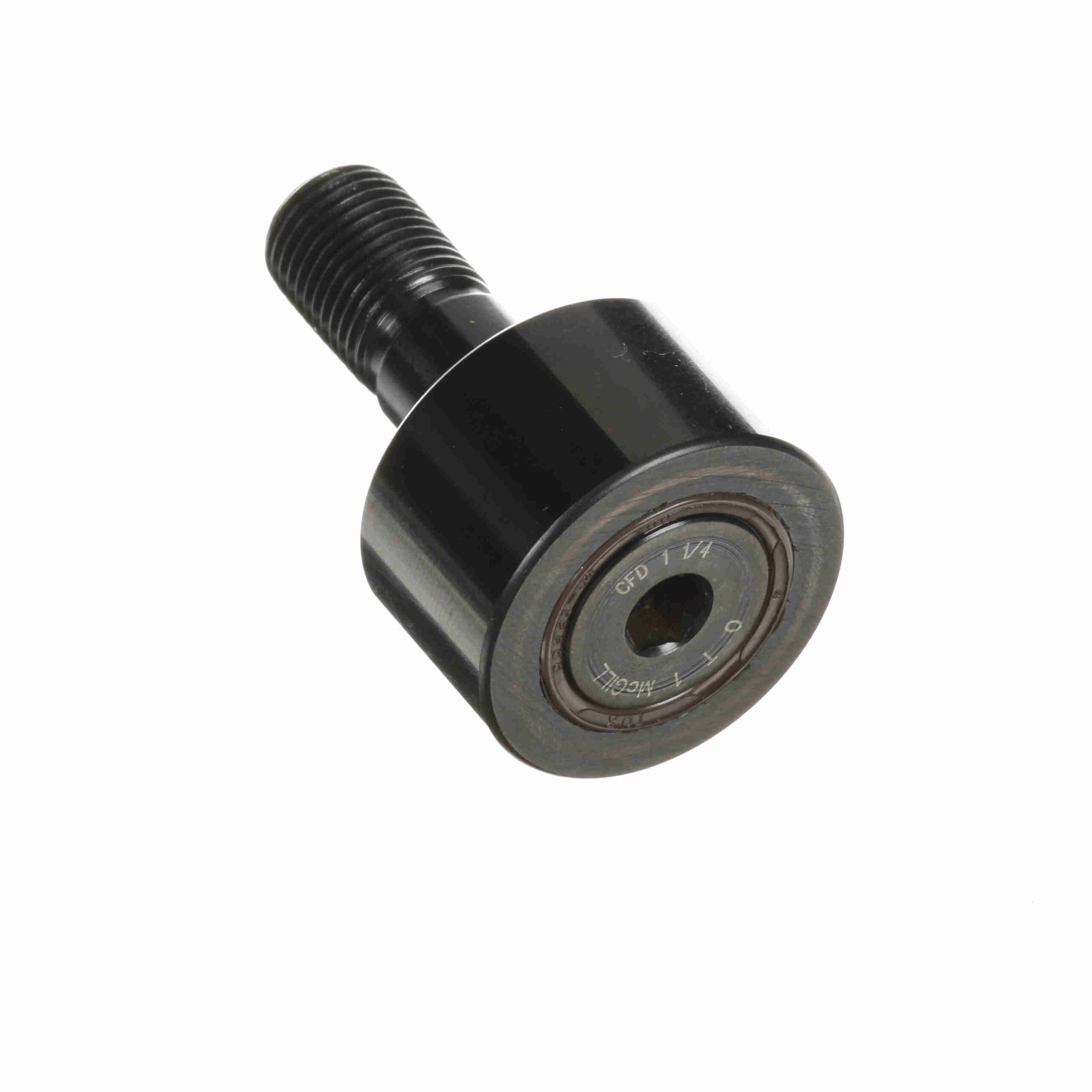

CFD 1 1/4
McGill HEAVY-DUTY CAMROL® Cylindrical Heavy Duty Inch Cam Follower – Stud Mount Roller – Hex Hole – Sealed – CFD 1 1/4
$45.90
Availability: 8 in stock
Availability: 8 in stock
| Adjustment: | None | Hex/Slot: | Hex Hole |
|---|---|---|---|
| Rolling Element: | Cylindrical Roller | Limiting Speed: | 3 |
| Series: | Heavy Duty Inch CAMROL® | O.D. Configuration: | Cylindrical |
| Dynamic Radial Rating: | 3 | Sealing: | Sealed |
| Material: | Bearing Steel, Black Oxide Finish | Tolerance Class: | P0 Equivalent |
| Dynamic Load Rating (lb): | 3, 300 lb | Platform: | HEAVY-DUTY CAMROL® |
| Static Load Rating: | 2 | Stud Type: | Standard Stud |
| Roller Shape: | Cylindrical | Lubrication Hole Location: | Stud side |
| Ability to Relubricate: | No | Clamping Torque (in-lbf): | 350 lbs |
| UPC: | 726166119164 | Weight: | 0.29 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.50.0000 |
| Country of Origin: | Mexico |
