- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Slot hole
CF 5/8

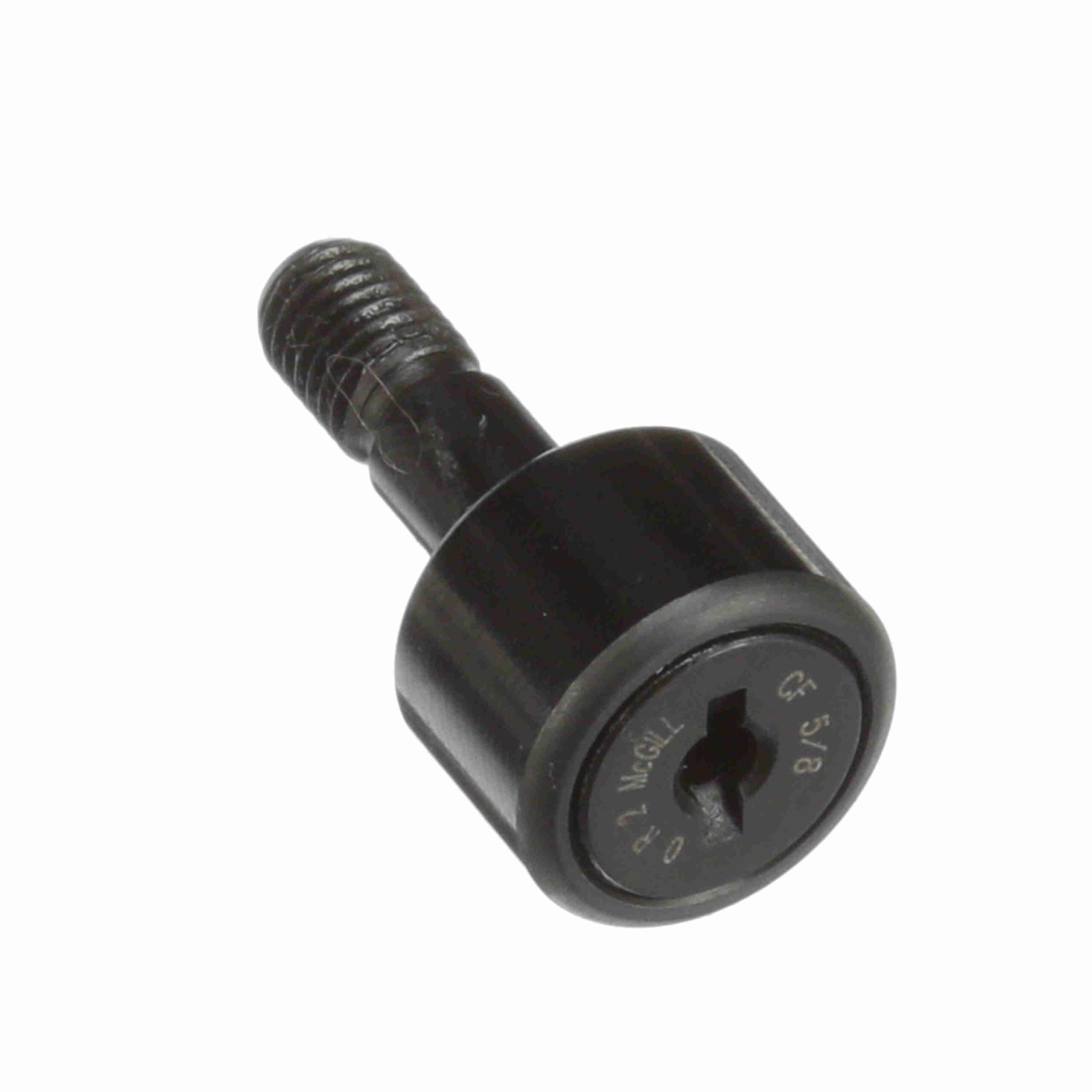

McGill CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Screwdriver Slot – CF 5/8
$17.85
Availability: 104 in stock
Availability: 104 in stock
| Series: | Inch CAMROL® | Adjustment: | None |
|---|---|---|---|
| Rolling Element: | Needle Roller - Full Complement | Limiting Speed: | 9 |
| Dynamic Radial Rating: | 955 | Hex/Slot: | Screwdriver Slot |
| O.D. Configuration: | Cylindrical | Sealing: | Unsealed |
| Material: | Bearing Steel, Black Oxide Finish | Platform: | CAMROL® |
| Dynamic Load Rating (lb): | 955 lb | Static Load Rating: | 600 |
| Tolerance Class: | P0 Equivalent | Roller Shape: | Cylindrical |
| Stud Type: | Standard Stud | Ability to Relubricate: | No |
| Clamping Torque (in-lbf): | 35 lbs | UPC: | 726166030681 |
| Weight: | 0.06 LB | Packaged Length: | 1.75 Inches |
| Packaged Width: | 1 Inches | Packaged Height: | 1.75 Inches |
| HTC: | 8482.40.0000 |
