- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal

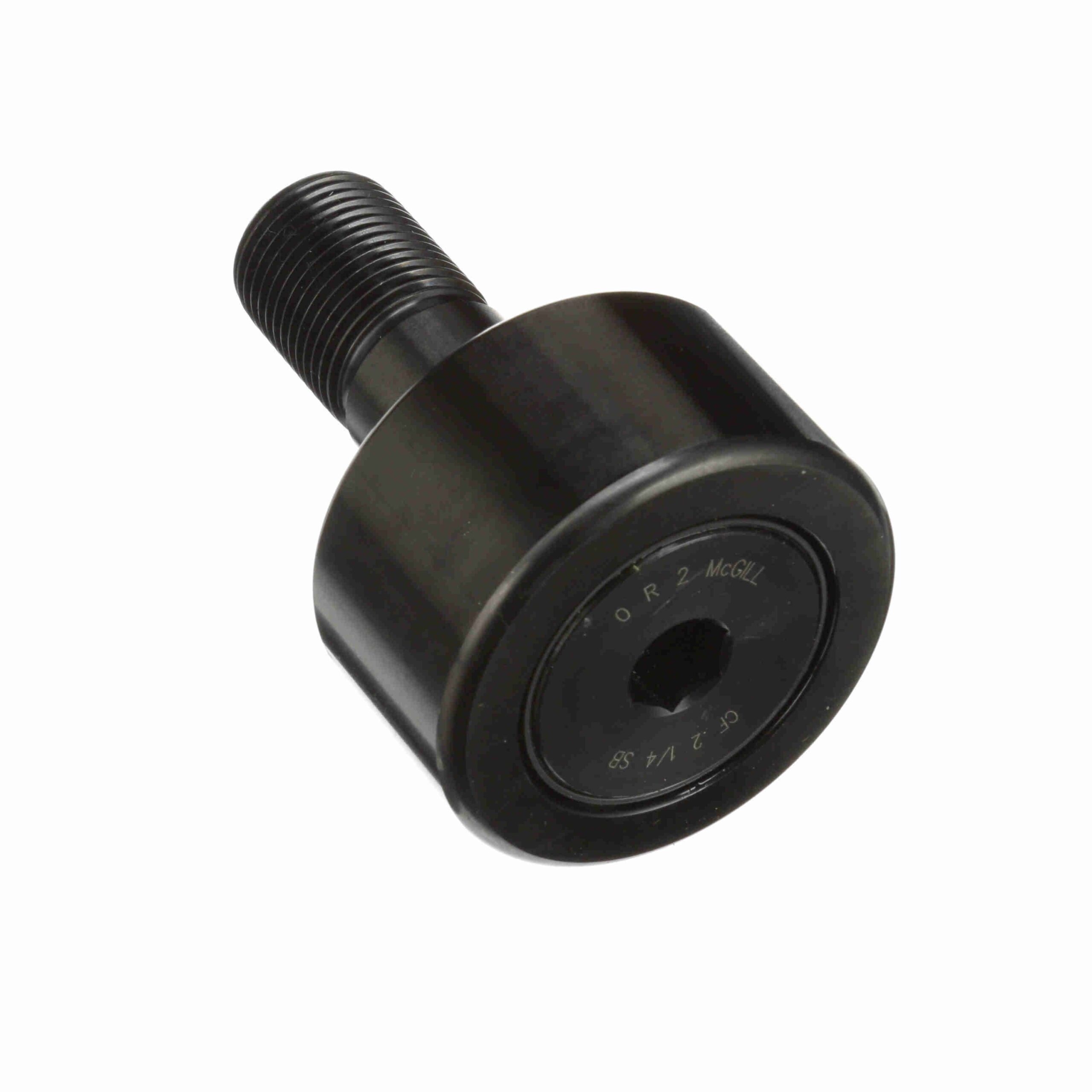

CF 2 1/4 SB
McGill CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Hex Hole – Sealed – CF 2 1/4 SB
$63.96
Availability: 91 in stock
Availability: 91 in stock
| Sealing: | Sealed | Limiting Speed: | 1 |
|---|---|---|---|
| Rolling Element: | Needle Roller - Full Complement | Hex/Slot: | Hex Hole |
| O.D. Configuration: | Cylindrical | Series: | Inch CAMROL® |
| Dynamic Radial Rating: | 8 | Adjustment: | None |
| Material: | Bearing Steel, Black Oxide Finish | Platform: | CAMROL® |
| Stud Type: | Standard Stud | Roller Shape: | Cylindrical |
| Static Load Rating: | 11 | Tolerance Class: | P0 Equivalent |
| Dynamic Load Rating (lb): | 8, 090 lb | Lubrication Hole Location: | Stud side |
| Clamping Torque (in-lbf): | 1, 500 lbs | Ability to Relubricate: | Yes |
| UPC: | 726166037932 | Weight: | 1.83 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 2.31 Inches |
| Packaged Height: | 3.43 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
