- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Slot hole
- LUBRI-DISC® seal
CF 1 5/8 S

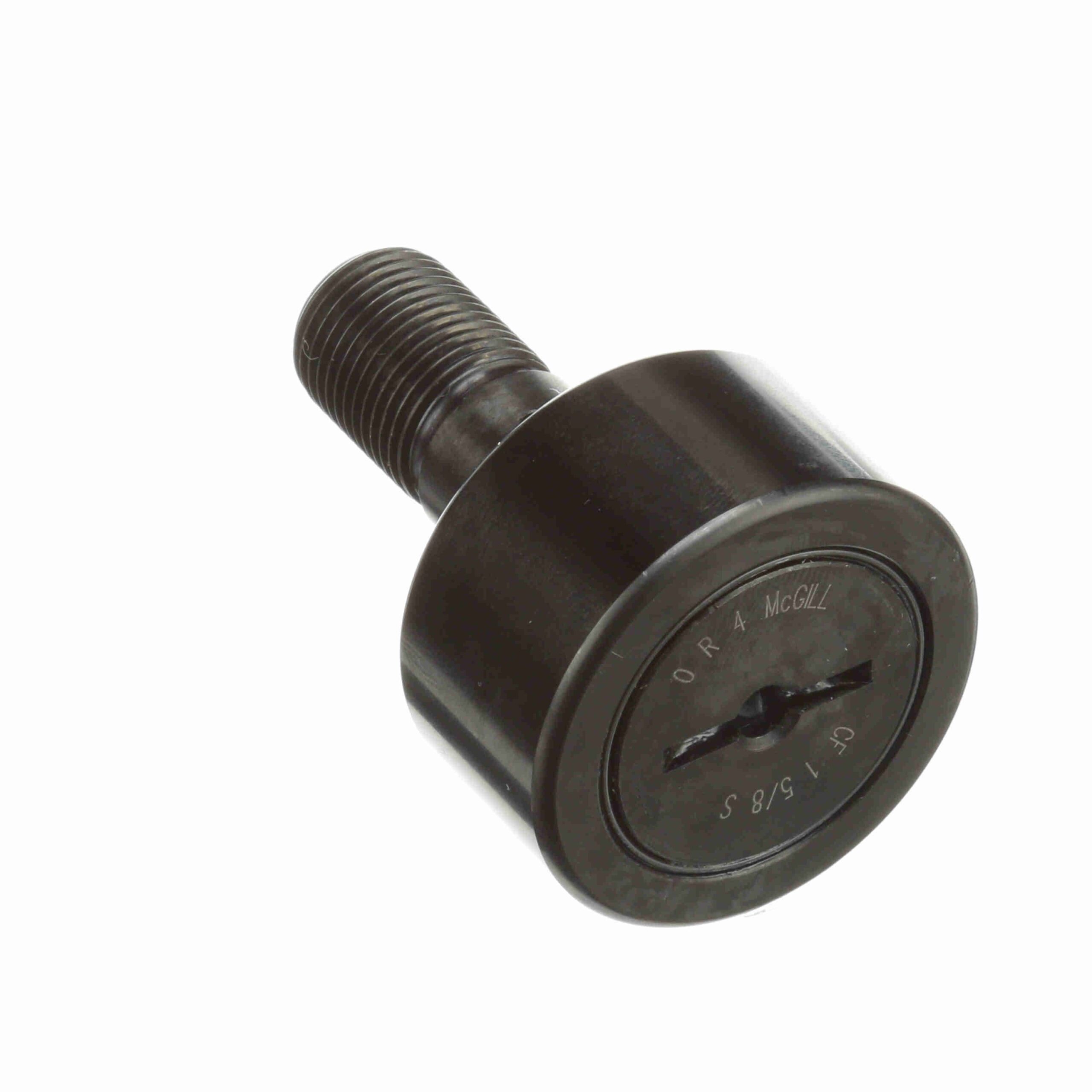

McGill CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Screwdriver Slot – Sealed – CF 1 5/8 S
$37.39
Availability: 14 in stock
Availability: 14 in stock
| Adjustment: | None | O.D. Configuration: | Cylindrical |
|---|---|---|---|
| Limiting Speed: | 2 | Hex/Slot: | Screwdriver Slot |
| Sealing: | Sealed | Series: | Inch CAMROL® |
| Rolling Element: | Needle Roller - Full Complement | Dynamic Radial Rating: | 5 |
| Material: | Bearing Steel, Black Oxide Finish | Stud Type: | Standard Stud |
| Roller Shape: | Cylindrical | Dynamic Load Rating (lb): | 4, 840 lb |
| Tolerance Class: | P0 Equivalent | Static Load Rating: | 6 |
| Platform: | CAMROL® | Lubrication Hole Location: | Stud side |
| Clamping Torque (in-lbf): | 650 lbs | Ability to Relubricate: | Yes |
| UPC: | 726166036119 | Weight: | 0.60 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
