- Stud type cam follower
- Crowned outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
CCF 1 1/8 SB

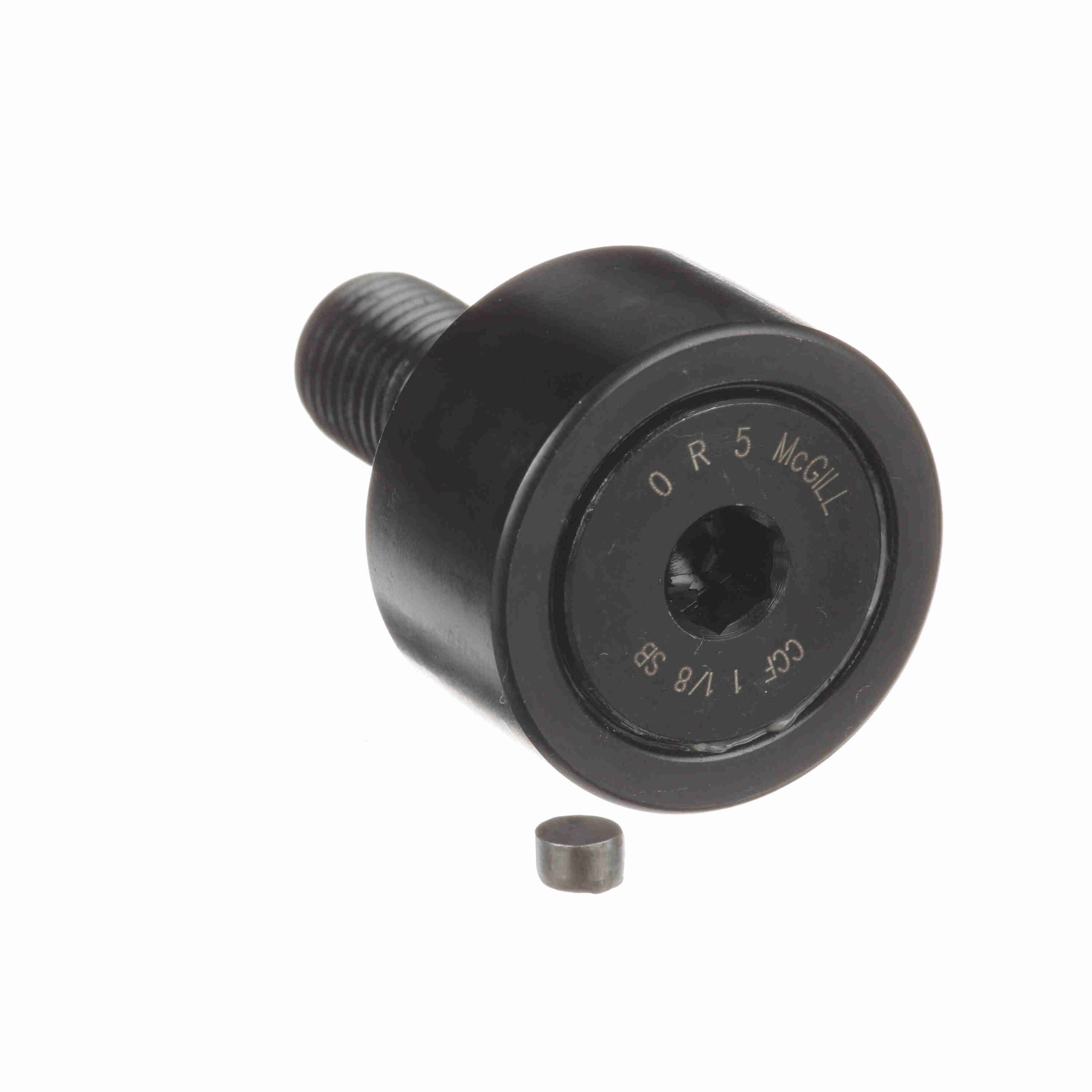

McGill CAMROL® Crowned Inch Cam Follower – Stud Mount Roller – Hex Hole – Sealed – CCF 1 1/8 SB
$31.50
Availability: 77 in stock
Availability: 77 in stock
| Limiting Speed: | 3 | Sealing: | Sealed |
|---|---|---|---|
| Adjustment: | None | Hex/Slot: | Hex Hole |
| Series: | Inch CAMROL® | Rolling Element: | Needle Roller - Full Complement |
| O.D. Configuration: | Crowned | Dynamic Radial Rating: | 2 |
| Material: | Bearing Steel, Black Oxide Finish | Static Load Rating: | 3 |
| Platform: | CAMROL® | Roller Shape: | Crowned |
| Tolerance Class: | P0 Equivalent | Stud Type: | Standard Stud |
| Dynamic Load Rating (lb): | 2, 225 lb | Clamping Torque (in-lbf): | 250 lbs |
| Ability to Relubricate: | Yes | UPC: | 726166034092 |
| Weight: | 0.21 LB | Packaged Length: | 1.5 Inches |
| Packaged Width: | 1.75 Inches | Packaged Height: | 2.18 Inches |
| HTC: | 8482.40.0000 |
