- Stud type cam follower
- Crowned outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
- Eccentric configuration
CCFE 1 3/4 SB

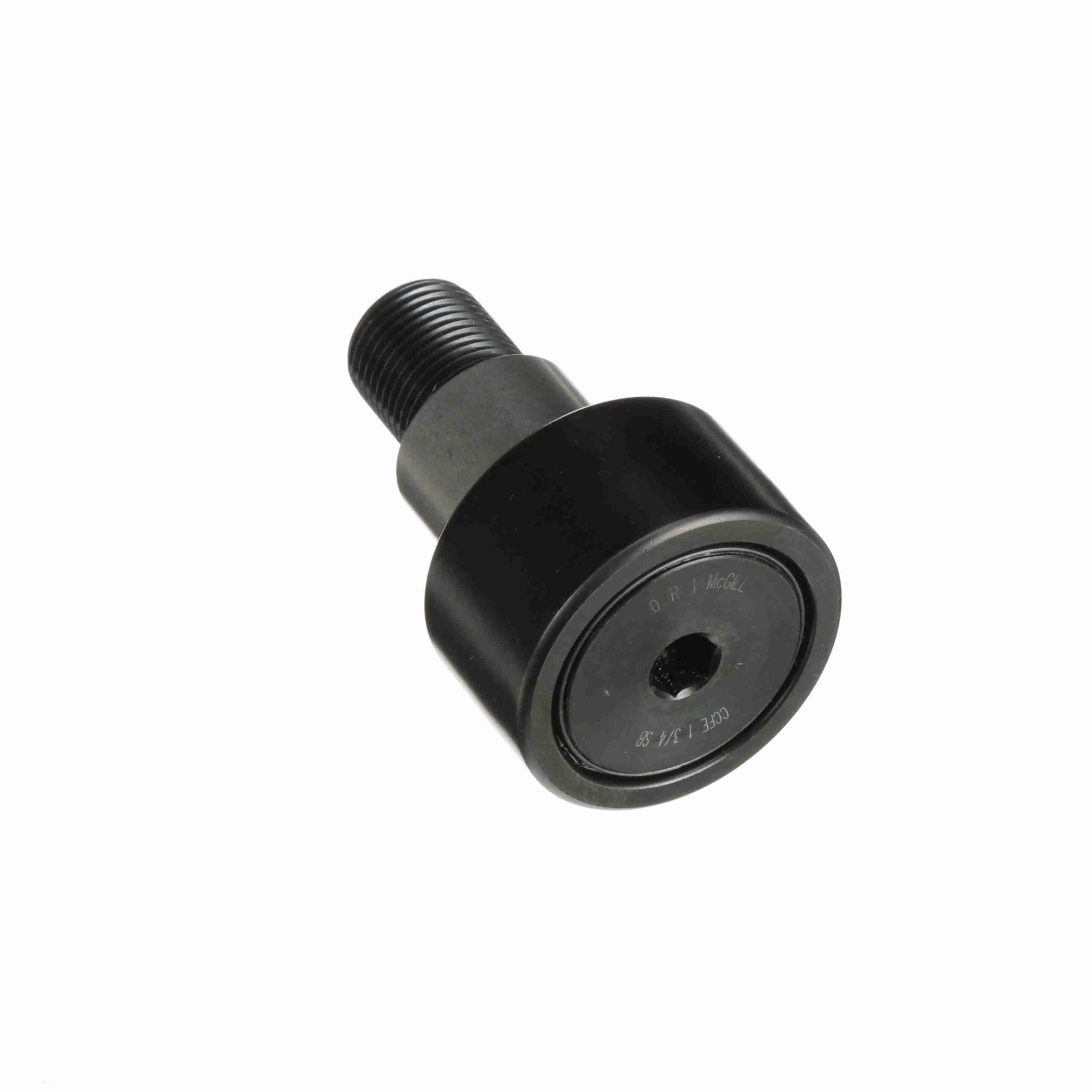

McGill CAMROL® Crowned Inch Cam Follower – Stud Mount Roller – Hex Hole – Sealed – CCFE 1 3/4 SB
$62.45
Availability: 20 in stock
Availability: 20 in stock
| Rolling Element: | Needle Roller - Full Complement | Series: | Inch CAMROL® |
|---|---|---|---|
| Limiting Speed: | 2 | Hex/Slot: | Hex Hole |
| Adjustment: | Eccentric Bushing | Sealing: | Sealed |
| Dynamic Radial Rating: | 6 | O.D. Configuration: | Crowned |
| Material: | Bearing Steel, Black Oxide Finish | Tolerance Class: | P0 Equivalent |
| Roller Shape: | Crowned | Dynamic Load Rating (lb): | 6, 385 lb |
| Static Load Rating: | 6 | Platform: | CAMROL® |
| Stud Type: | Standard Stud with Eccentric Bushing | Clamping Torque (in-lbf): | 1, 250 lbs |
| Ability to Relubricate: | Yes | UPC: | 726166036768 |
| Weight: | 0.90 LB | Packaged Length: | 2 Inches |
| Packaged Width: | 2 Inches | Packaged Height: | 2.87 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
