- Stud type cam follower
- Crowned outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
- Eccentric configuration
CCFE 1 1/2 SB

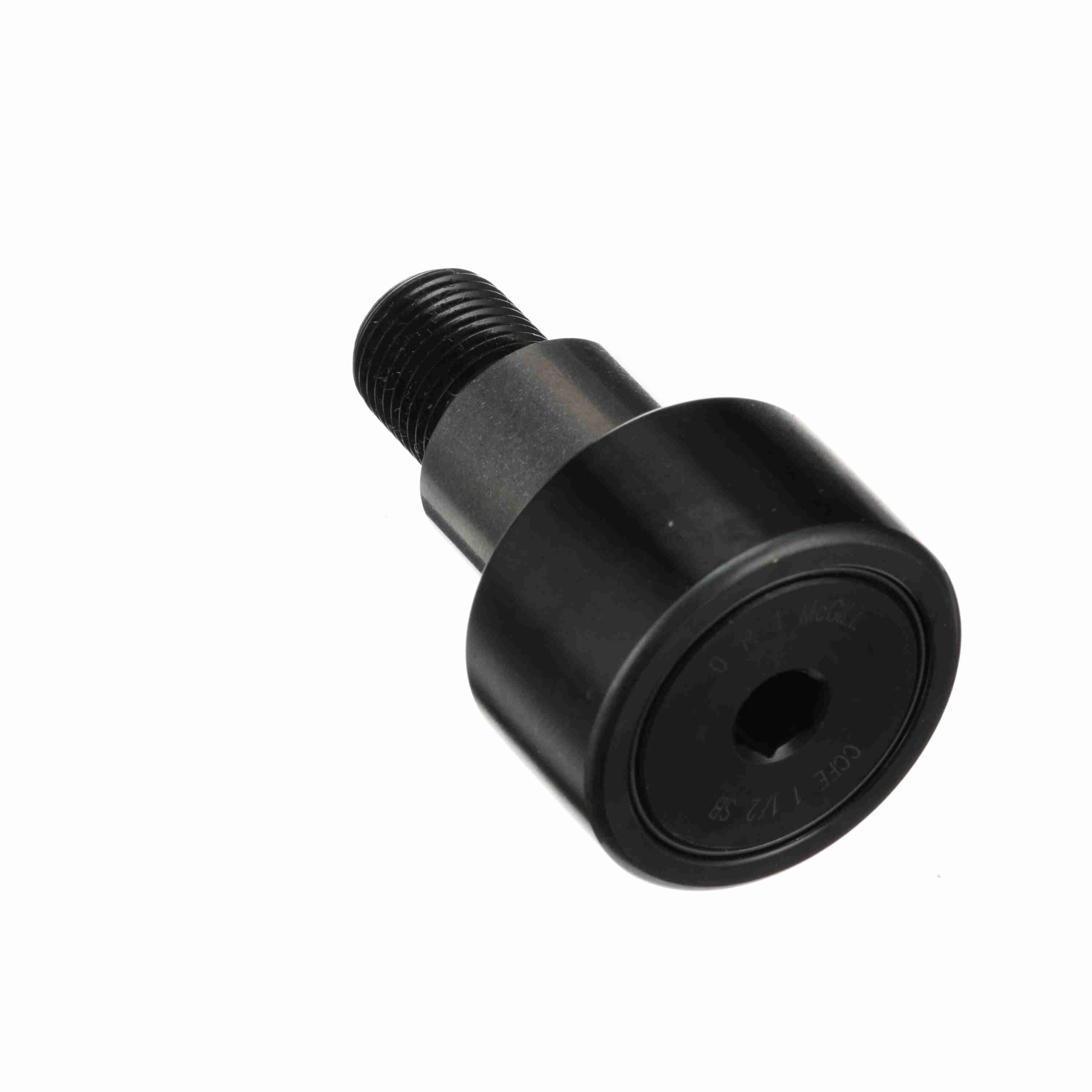

McGill CAMROL® Crowned Inch Cam Follower – Stud Mount Roller – Hex Hole – Sealed – CCFE 1 1/2 SB
$43.25
Availability: 55 in stock
Availability: 55 in stock
| Series: | Inch CAMROL® | Rolling Element: | Needle Roller - Full Complement |
|---|---|---|---|
| Limiting Speed: | 3 | Hex/Slot: | Hex Hole |
| Dynamic Radial Rating: | 5 | O.D. Configuration: | Crowned |
| Sealing: | Sealed | Adjustment: | Eccentric Bushing |
| Material: | Bearing Steel, Black Oxide Finish | Platform: | CAMROL® |
| Stud Type: | Standard Stud with Eccentric Bushing | Dynamic Load Rating (lb): | 4, 840 lb |
| Static Load Rating: | 4 | Tolerance Class: | P0 Equivalent |
| Roller Shape: | Crowned | Clamping Torque (in-lbf): | 650 lbs |
| Ability to Relubricate: | Yes | UPC: | 726166035884 |
| Weight: | 0.55 LB | Packaged Length: | 1.68 Inches |
| Packaged Width: | 1.68 Inches | Packaged Height: | 2.62 Inches |
| HTC: | 8482.40.0000 |
