- Largest Selection of finished bore sheaves of any other manufacturer – Browning offers finished bore sheaves in both A& B Combination (A/B) configuration. 1& 2 Grooves are available to meet any fractional horsepower requirement.
- Combination Groove – All Browning BK Sheaves permit the running of A, 4L, B& 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
BK62X15/16

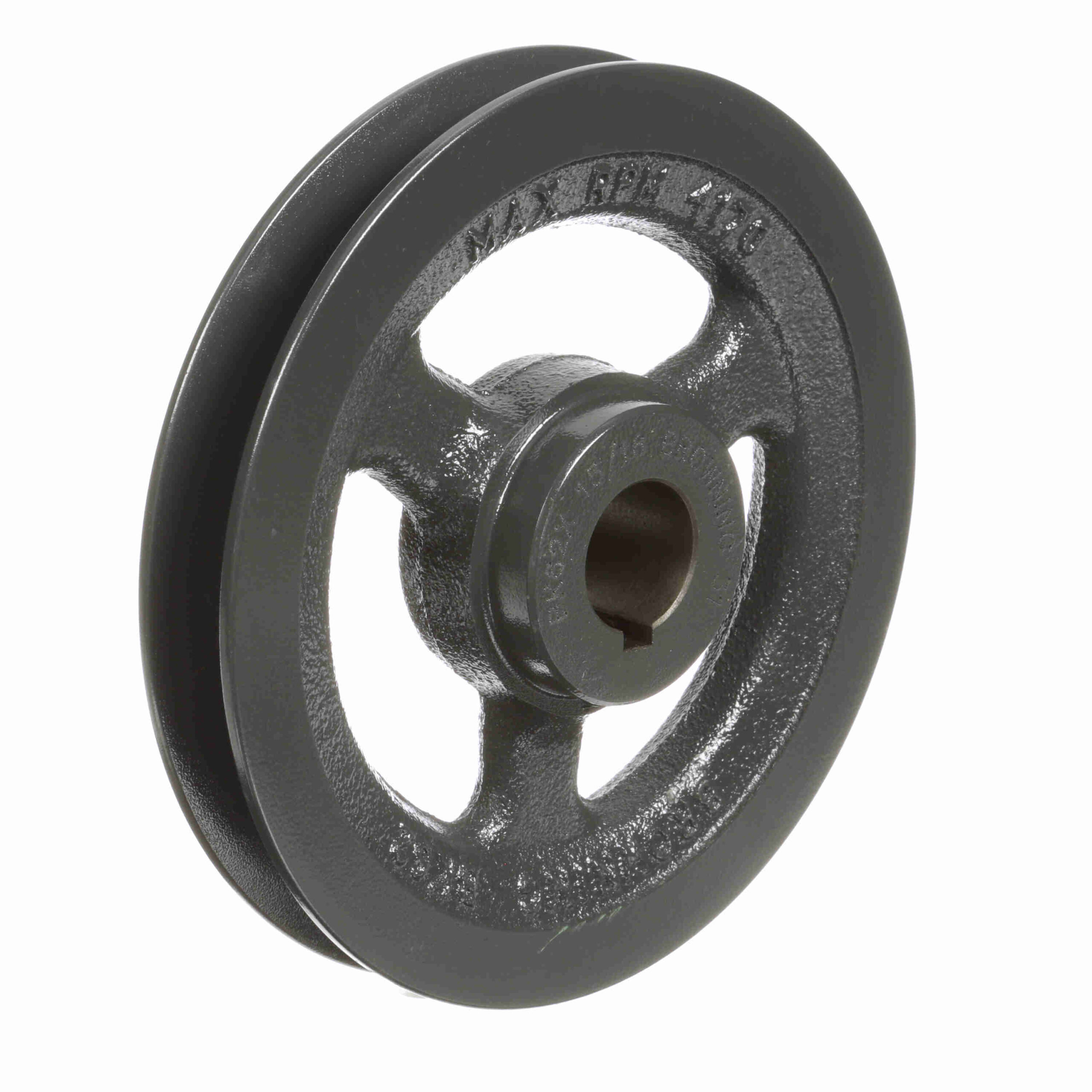

Browning 1 Groove Cast Iron FHP – Finished Bore Sheave – BK62X15/16
$206.33
Out of stock
Out of stock
| Material: | Cast Iron | Number of Grooves: | 1 |
|---|---|---|---|
| Model Name: | BK_Sheave_Master2 | Outside Diameter (in): | 5.95 in |
| Pitch Diameter (A): | 5.4 | Pitch Diameter (B): | 5.9 |
| Bore (in): | 0.9375 in | Belt Section: | 4L or A, 5L or B |
| Product Type: | FHP - Finished Bore | Bore Type: | Finished with Keyway and SS |
| Keyway Size: | .250 | Set Screw Tightening Torque (in-lb): | 165 |
| Set Screw Thread: | 5/16-18UNC-3AX3/8 | UPC: | 662289308309 |
| Weight: | 2.98 LB | Packaged Length: | 6.70 Inches |
| Packaged Width: | 6.80 Inches | Packaged Height: | 1.40 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
