- Largest Selection of H Bushed sheaves of any other manufacturer – Browning offers bushed sheaves in both A& B Combination (A/B) configuration. 1& 2 Grooves are available to meet any fractional horsepower requirement.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
- Combination Groove – All Browning BK H Sheaves permit the running of A, 4L, B& 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Clear Pack packaging for end cap display
BK32H CLEAR PK

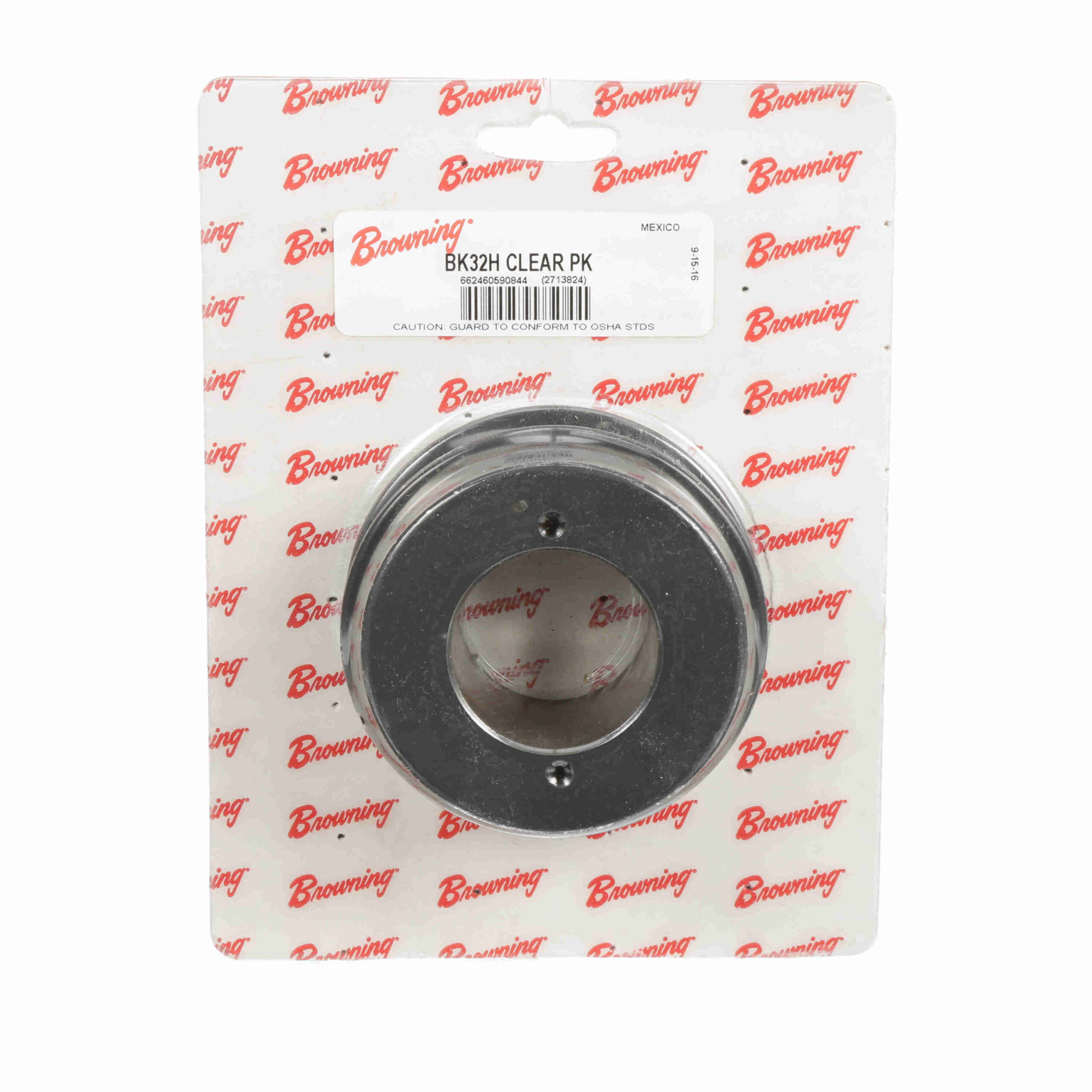

Browning 1 Groove Cast Iron FHP – Bushed Sheave Clear Pack – BK32H CLEAR PK
$95.42
Out of stock
Out of stock
| Pitch Diameter (B): | 3.3 | Type of Bore: | Bushed |
|---|---|---|---|
| Pitch Diameter (A): | 2.8 | Material: | Cast Iron |
| Number of Grooves: | 1 | Model Name: | BKH_Sheave_Master |
| Datum Diameter (B): | 3 | Bushing: | H |
| Datum Diameter (A): | 2.6 | Outside Diameter (in): | 3.35 in |
| Belt Section: | 4L or A, 5L or B | Bore (Min) (in): | 0.375 in |
| Product Type: | FHP - Bushed | Outside Length (in): | 1.9375 in |
| Bore Type: | Split Taper Bushed | Bushing Bore Range: | 0.375 - 1.500 |
| Face Width (in): | 0.875 | Pulley Construction: | Solid |
| Overall Width (in): | 1.9375 | UPC: | 662460590844 |
| Weight: | 1.75 LB | Packaged Length: | 5.45 Inches |
| Packaged Width: | 7.75 Inches | Packaged Height: | 1.55 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
