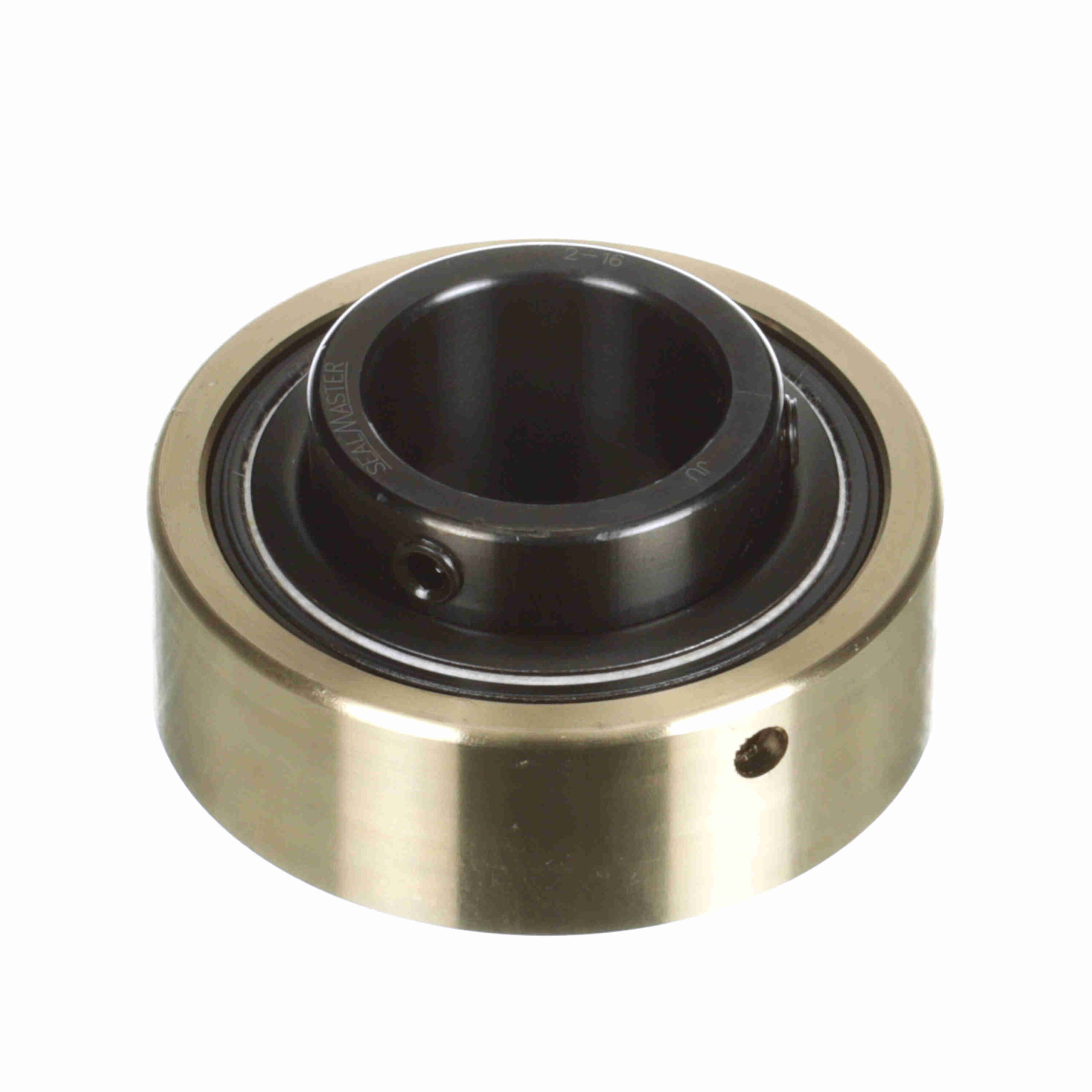

AR-2-16

Bearing insert installed in brass expansion ring
Skwezloc® concentric locking for near perfect concentricity
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Maximum Operating Temperature:	220 °F	Rolling Element:	Ball Bearing
Set Screw Thread:	5/16-24	Seal Type:	Felt Labyrinth Seal
Bore Shape:	Straight	Retainer Type:	Land Riding Retainer
Housing Type:	Insert Only	Measure Units:	Inch
Inner-Race Heat-Treat Method:	Zone-Hardened	Insert Material:	52100 Bearing Steel, Black Oxided
Radius:	0.04	Duty Series:	Standard
Misalignment:	±2.0° Misalignment - Static Only	Locking Type:	Setscrew
Expansion:	No	Speed (Max):	4650
Lubrication:	Lithium Complex NLGI 2 Grease	Relubricatable:	Yes
Internal Clearance:	Standard	Radial Dynamic Load Capacity (lb):	5, 782
Platform:	Gold Line Ball Bearing	Misalignment Type:	Static Only
Outer Ring Land Profile:	Standard	Bearing Insert Coating:	Black Oxide Coated
End Cap:	No	Radial Static Load Capacity (lb):	3, 493
Series:	AR	Precision Rating:	ABEC 1
Cage Material:	PPS	Outer Race Profile:	Cylindrical
Inner Race Profile:	Wide Inner Ring	UPC:	662461009543
Weight:	2.09 LB	Packaged Length:	3.13 Inches
Packaged Width:	1.75 Inches	Packaged Height:	3.13 Inches
HTC:	8482.10.5052	Country of Origin:	Mexico
