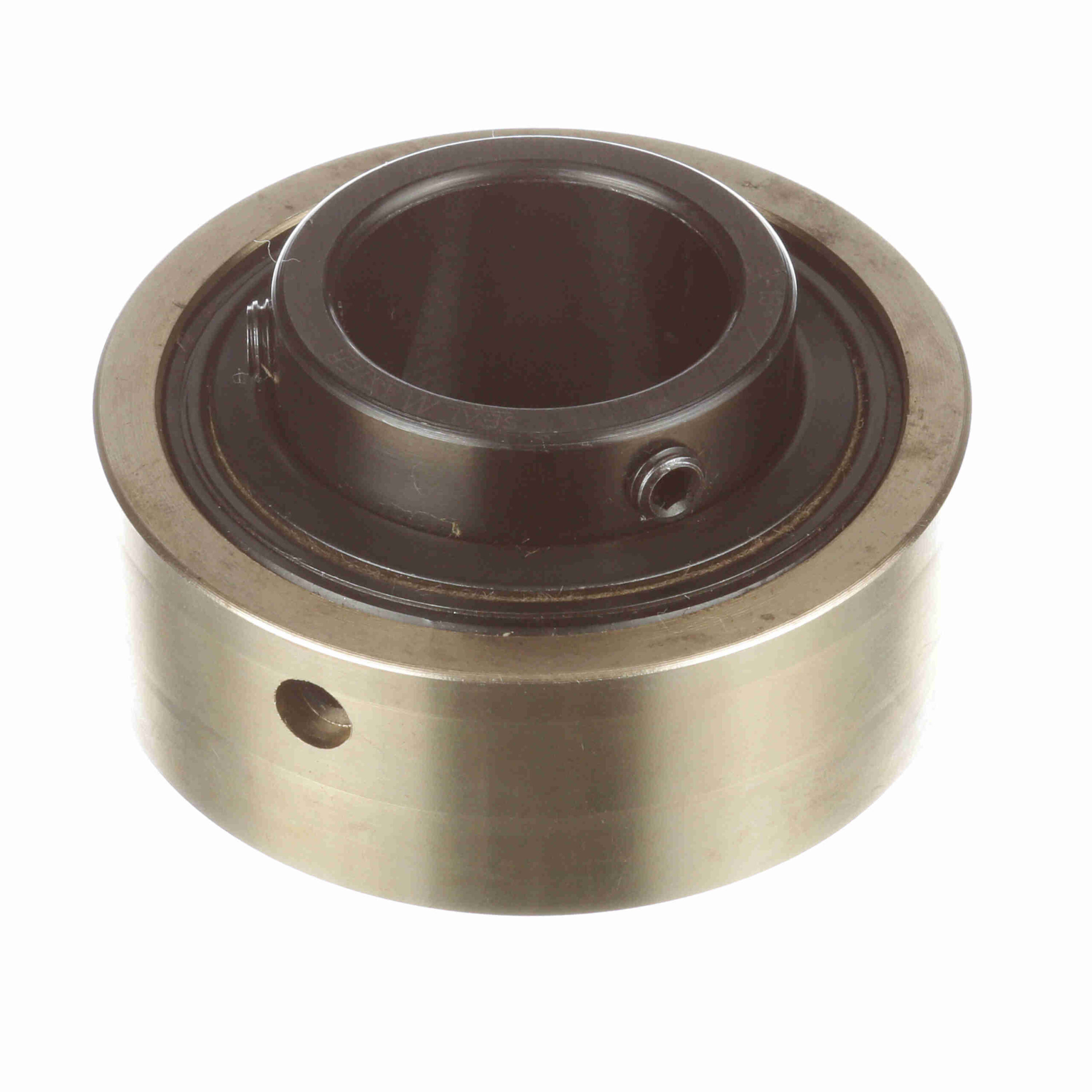

AR-2-13

Bearing insert installed in brass expansion ring
Skwezloc® concentric locking for near perfect concentricity
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Duty Series:	Standard	Measure Units:	Inch
Retainer Type:	Land Riding Retainer	Inner-Race Heat-Treat Method:	Zone-Hardened
Seal Type:	Felt Labyrinth Seal	Insert Material:	52100 Bearing Steel, Black Oxided
Maximum Operating Temperature:	220 °F	Radius:	0.04
Housing Type:	Insert Only	Set Screw Thread:	1/4-28
Bore Shape:	Straight	Rolling Element:	Ball Bearing
Expansion:	No	Locking Type:	Setscrew
Lubrication:	Lithium Complex NLGI 2 Grease	Relubricatable:	Yes
Internal Clearance:	Standard	Radial Dynamic Load Capacity (lb):	4, 381
Speed (Max):	5450	Misalignment:	±2.0° Misalignment - Static Only
Outer Ring Land Profile:	Standard	Misalignment Type:	Static Only
End Cap:	No	Bearing Insert Coating:	Black Oxide Coated
Platform:	Gold Line Ball Bearing	Radial Static Load Capacity (lb):	2, 567
Precision Rating:	ABEC 1	Outer Race Profile:	Cylindrical
Inner Race Profile:	Wide Inner Ring	UPC:	662461009512
Weight:	1.15 LB	Packaged Length:	2.75 Inches
Packaged Width:	1.56 Inches	Packaged Height:	2.75 Inches
HTC:	8482.10.5052	Country of Origin:	Mexico
