- Bearing insert installed in brass expansion ring
- Skwezloc® concentric locking for near perfect concentricity
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
AR-1-14

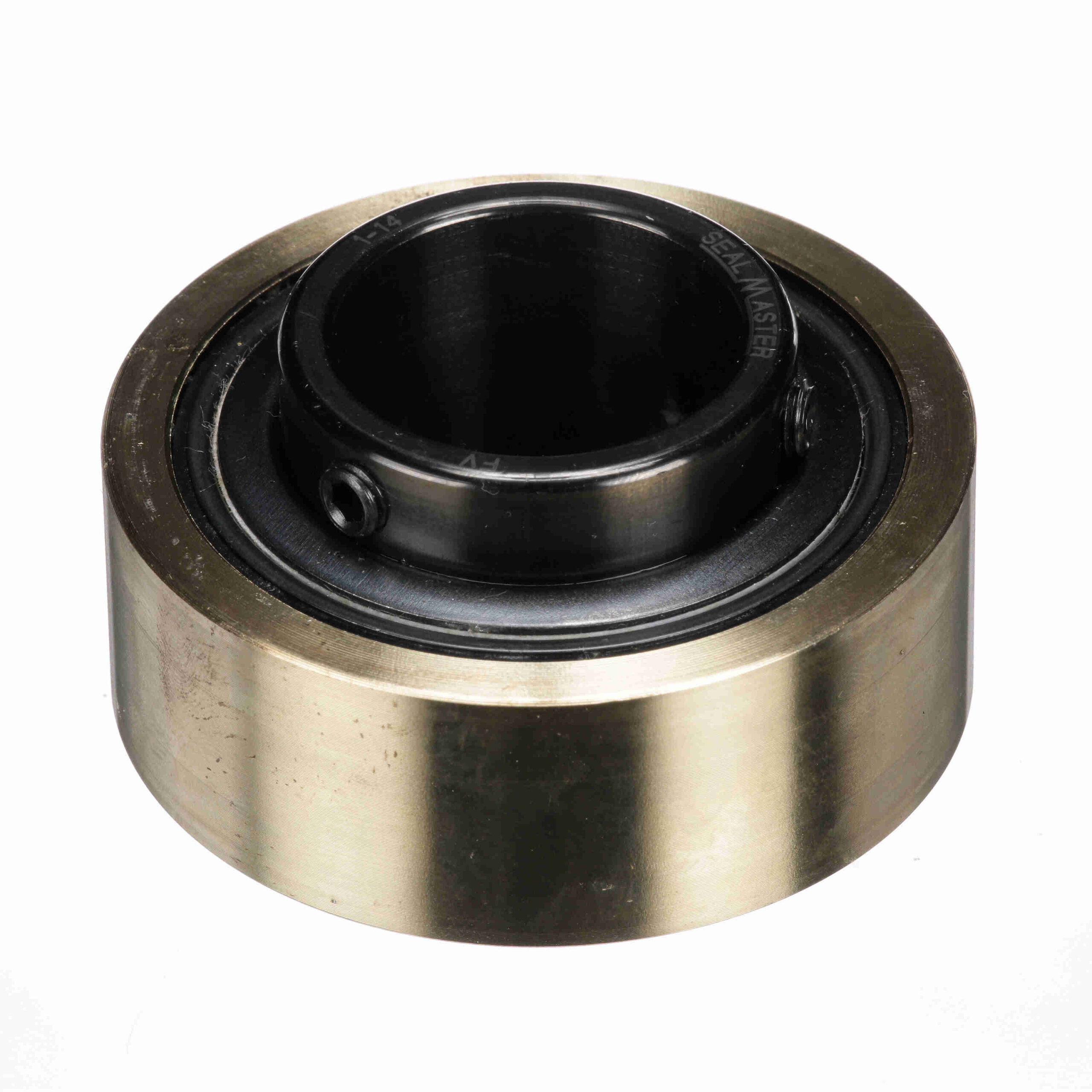

Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – AR-1-14
$238.02
Availability: 3 in stock
Availability: 3 in stock
| Rolling Element: | Ball Bearing | Maximum Operating Temperature: | 220 °F |
|---|---|---|---|
| Housing Type: | Insert Only | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Seal Type: | Felt Labyrinth Seal | Duty Series: | Standard |
| Bore Shape: | Straight | Measure Units: | Inch |
| Radius: | 0.04 | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Retainer Type: | Land Riding Retainer | Set Screw Thread: | 1/4-28 |
| Internal Clearance: | Standard | Lubrication: | Lithium Complex NLGI 2 Grease |
| Speed (Max): | 5450 | Locking Type: | Setscrew |
| Radial Dynamic Load Capacity (lb): | 4, 381 | Relubricatable: | Yes |
| Expansion: | No | Misalignment: | ±2.0° Misalignment - Static Only |
| Bearing Insert Coating: | Black Oxide Coated | Outer Ring Land Profile: | Standard |
| Platform: | Gold Line Ball Bearing | End Cap: | No |
| Misalignment Type: | Static Only | Radial Static Load Capacity (lb): | 2, 567 |
| Series: | AR | Precision Rating: | ABEC 1 |
| Cage Material: | PPS | Inner Race Profile: | Wide Inner Ring |
| Outer Race Profile: | Cylindrical | UPC: | 662461009390 |
| Weight: | 1.48 LB | Packaged Length: | 2.75 Inches |
| Packaged Width: | 1.56 Inches | Packaged Height: | 2.75 Inches |
| HTC: | 8482.10.5052 | Country of Origin: | Mexico |
