- Largest Selection of finished bore sheaves of any other manufacturer – Browning offers finished bore sheaves in both A& B Combination (A/B) configuration. 1& 2 Grooves are available to meet any fractional horsepower requirement.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
AK69X 1 1/8

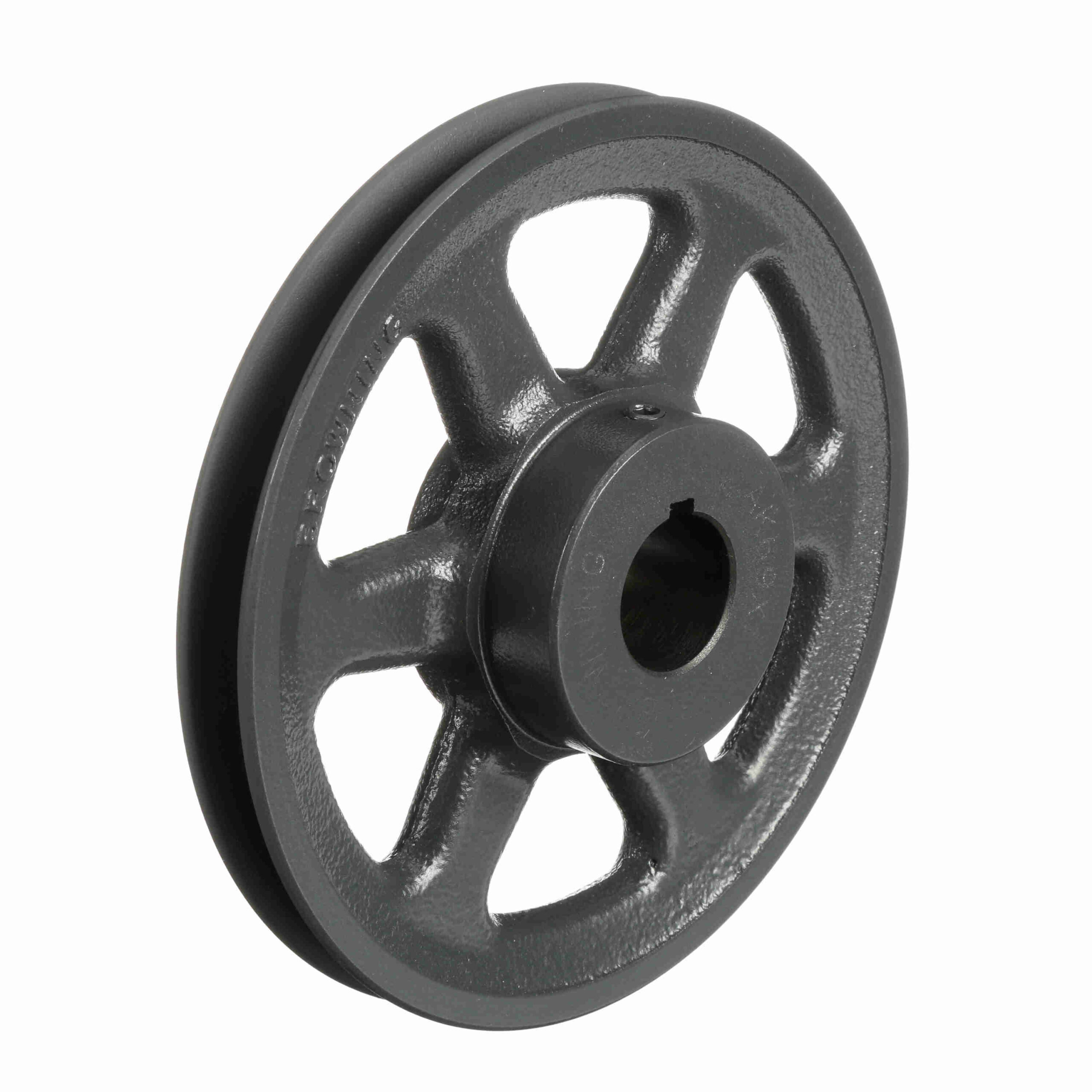

Browning 1 Groove Cast Iron FHP – Finished Bore Sheave – AK69X 1 1/8
$148.18
Out of stock
Out of stock
| Material: | Cast Iron | Datum (3L): | 6.16 |
|---|---|---|---|
| Number of Grooves: | 1 | Model Name: | AK_Sheave_Master3 |
| Outside Diameter (in): | 6.75 in | Pitch Diameter (A): | 6.7 |
| Bore (in): | 1.125 in | Product Type: | FHP - Finished Bore |
| Belt Section: | 4L or A, 3L | Pitch Diameter (3L): | 6.1600 |
| Bore Type: | Finished | Face Width (in): | 0.75 |
| Pulley Construction: | Spoke | Keyway Size: | 2.5 x .125 |
| Overall Width (in): | 1.47 | Number of Hubs: | 1 |
| Set Screw Thread: | 5/16-18UNC-3AX3/8 | Set Screw Tightening Torque (in-lb): | 165 |
| UPC: | 662289591145 | Weight: | 3.96 LB |
| Packaged Length: | 7.00 Inches | Packaged Width: | 7.00 Inches |
| Packaged Height: | 2.00 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
