- Stud type cam follower
- Crowned outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal

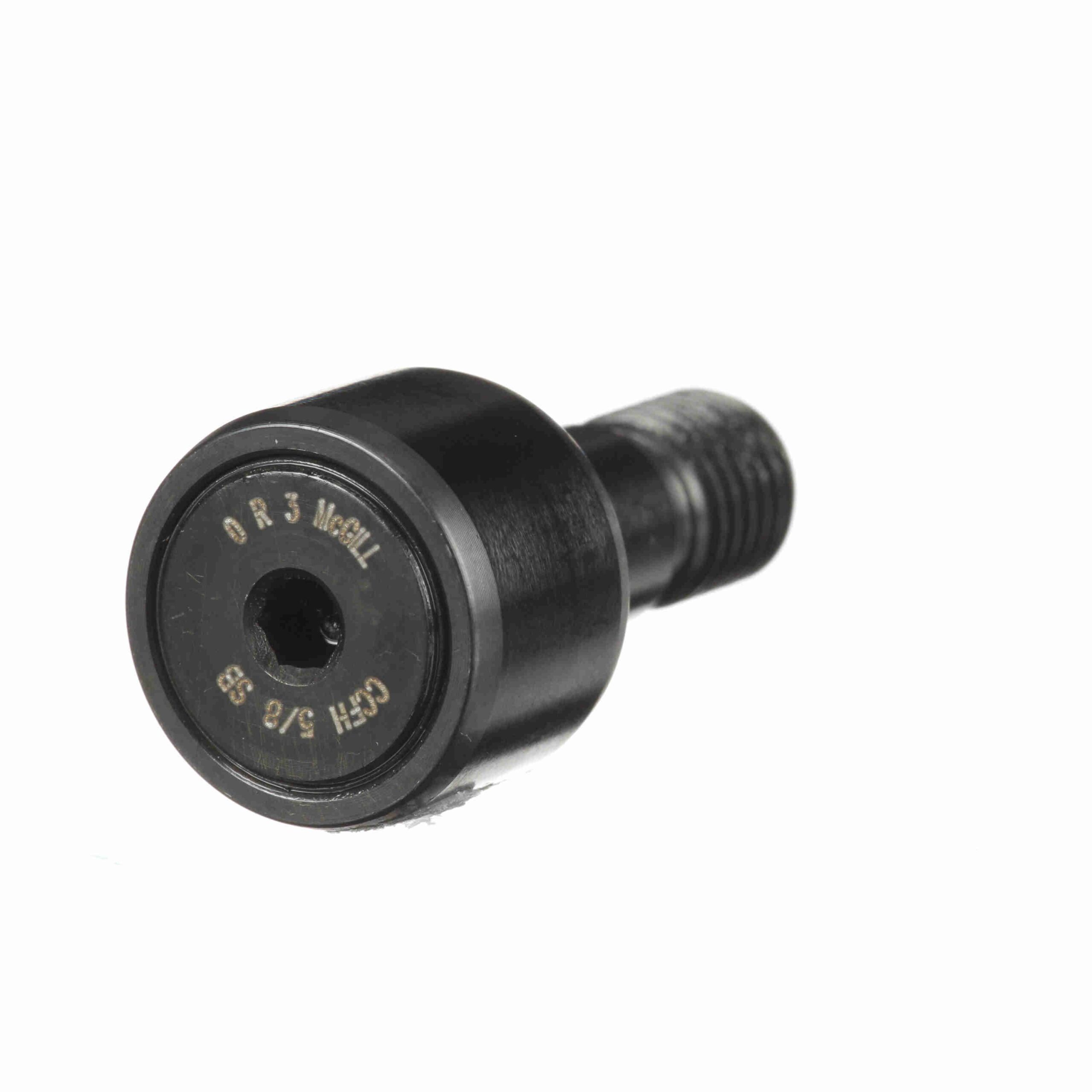

CCFH 5/8 SB
McGill Heavy Stud CAMROL® Crowned Inch Cam Follower – Stud Mount Roller – Hex Hole – Sealed – CCFH 5/8 SB
$30.19
Out of stock
Out of stock
| O.D. Configuration: | Crowned | Rolling Element: | Needle Roller - Full Complement |
|---|---|---|---|
| Adjustment: | None | Sealing: | Sealed |
| Hex/Slot: | Hex Hole | Series: | Inch CAMROL® |
| Limiting Speed: | 9 | Material: | Bearing Steel, Black Oxide Finish |
| Static Load Rating: | 1 | Roller Shape: | Crowned |
| Stud Type: | Heavy Stud | Platform: | CAMROL® |
| Dynamic Load Rating (lb): | 955 lb | Tolerance Class: | P0 Equivalent |
| Ability to Relubricate: | No | Clamping Torque (in-lbf): | 90 lbs |
| UPC: | 726166031398 | Weight: | 0.05 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
