- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
96H100SF

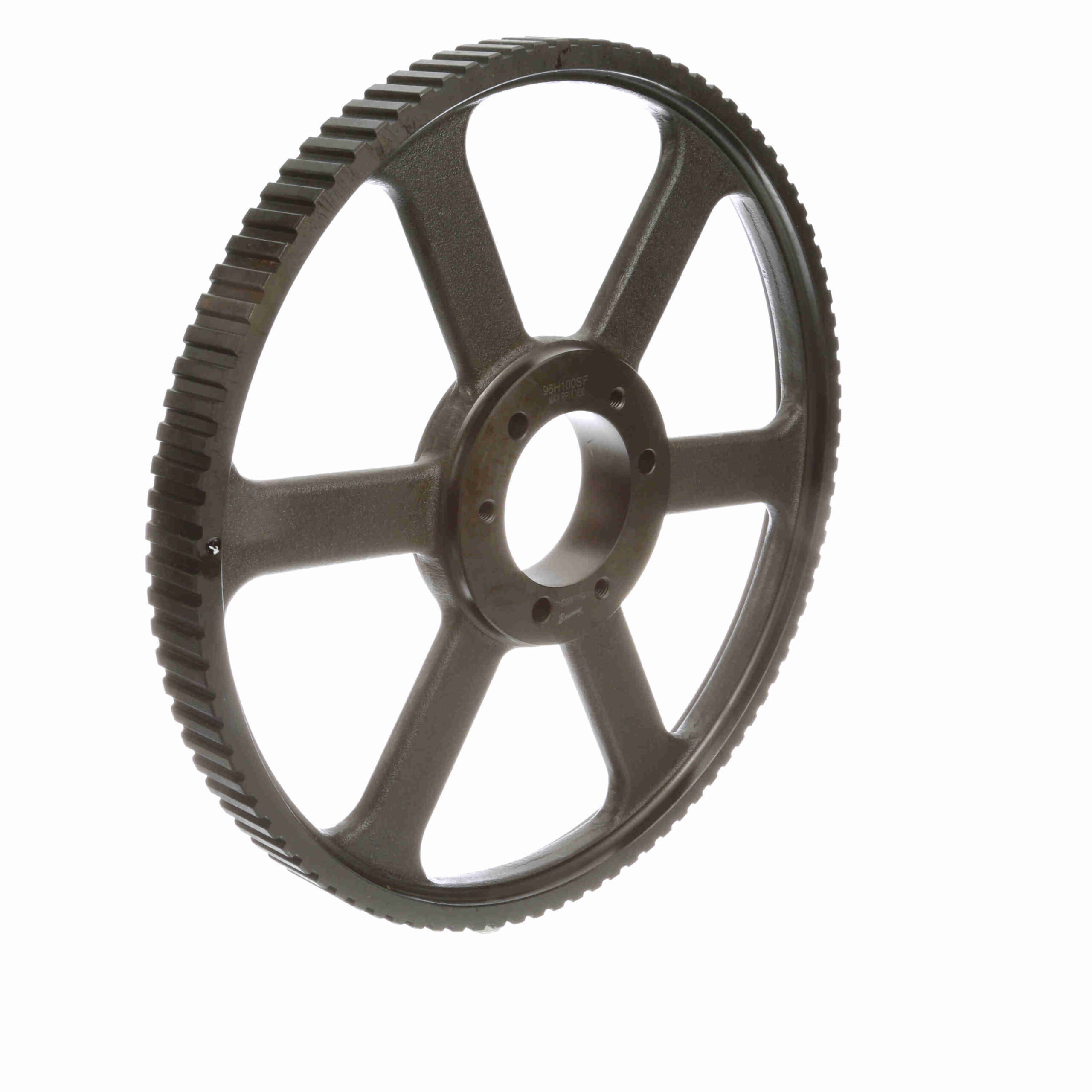

Browning Steel Bushed Bore Gearbelt Pulley – 96H100SF
$1,100.33
Out of stock
Out of stock
| Bore Range: | 1/2 to 2 15/16 | Product Type: | Gearbelt Pulley |
|---|---|---|---|
| Width (mm): | 25.4 mm | Number of teeth: | 96 |
| Material: | Cast Iron | Bore Type: | Bushed Bore |
| Width (in): | 1 in | Inside Diameter (in): | 14.125 in |
| Pitch Diameter (in): | 15.279 in | Outside Diameter (mm): | 386.715 mm |
| Outside Diameter (in): | 15.225 in | Belt Section: | H |
| Face Width: | 1.3125 | Hub Diameter (in): | 4.625 in |
| Pulley Construction: | Arm | Overall Length (in): | 2.3722 in |
| With Flanges: | No Flanges | Number of Hubs: | 1 |
| Length Through Bore: | 2 | Hub Projection: | 1.062 |
| UPC: | 662289354610 | Weight: | 26.04 LB |
| Packaged Length: | 15.25 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 15.25 Inches | HTC: | 8483.50.9080 |
| Country of Origin: | United States of America |
