- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
8Q3V50

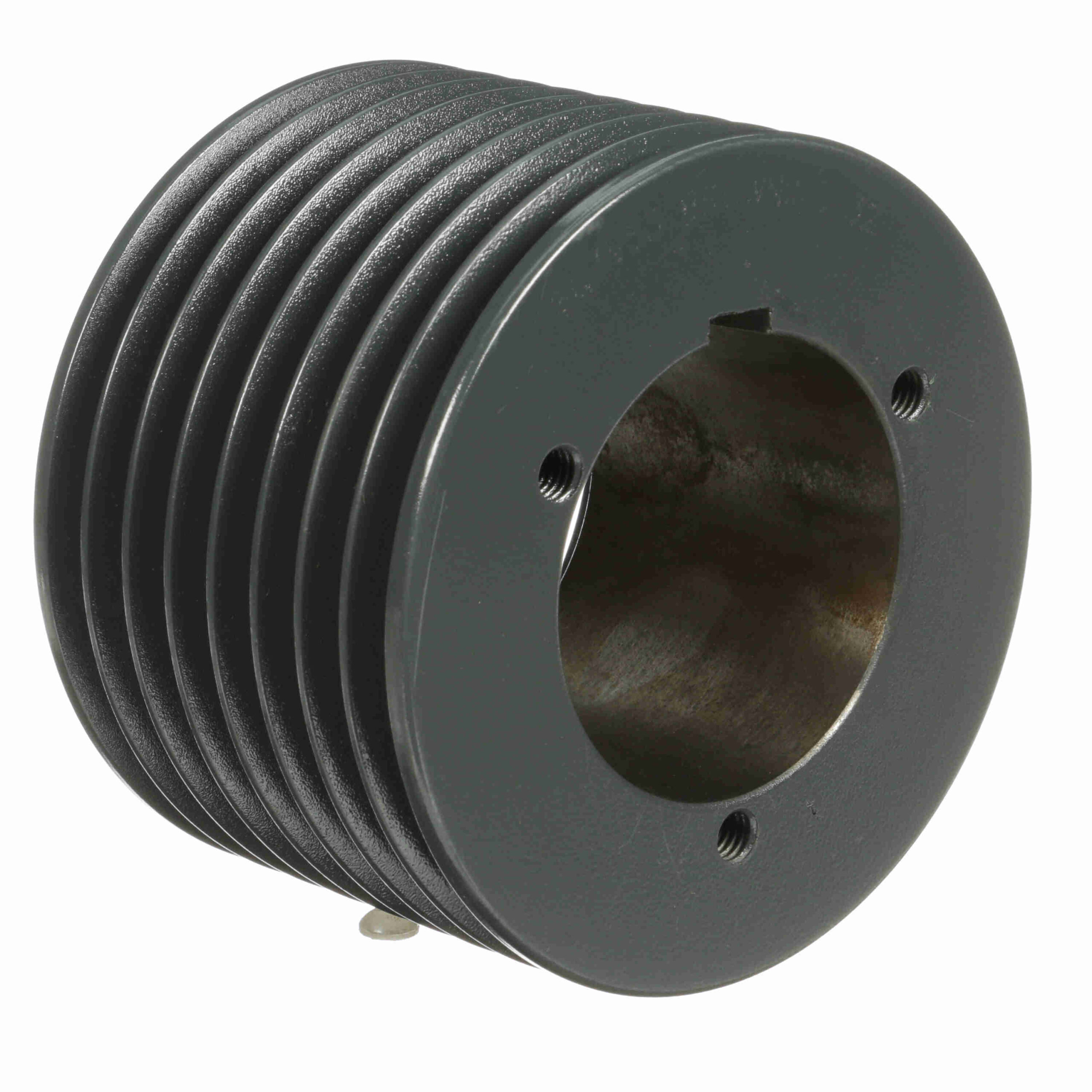

Browning 8 Groove Cast Iron Bushed Bore Multiple Sheave – 8Q3V50
Out of stock
| Outside Diameter (in): | 5 in | Overall Length (in): | 4.609375 in |
|---|---|---|---|
| Material: | Cast Iron | Pulley Material: | Cast Iron |
| Bushing Used: | Q2 | Number of Grooves: | 8 |
| Pitch Diameter (3V): | 4.95 | Bore (Min) (in): | 1 in |
| Product Type: | Multiple Sheaves | Belt Section: | 3V |
| Bore Type: | Split Taper Bushed | Keyway Size: | .500 |
| Pulley Construction: | Plain | Bushing Bore Range: | 1.000 - 2.625 |
| Overall Width (in): | 4.5625 | Face Width (in): | 3.5313 |
| UPC: | 662289199600 | Weight: | 8.86 LB |
| Packaged Length: | 5.44 Inches | Packaged Width: | 5.44 Inches |
| Packaged Height: | 4.00 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
