- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
84XHR200

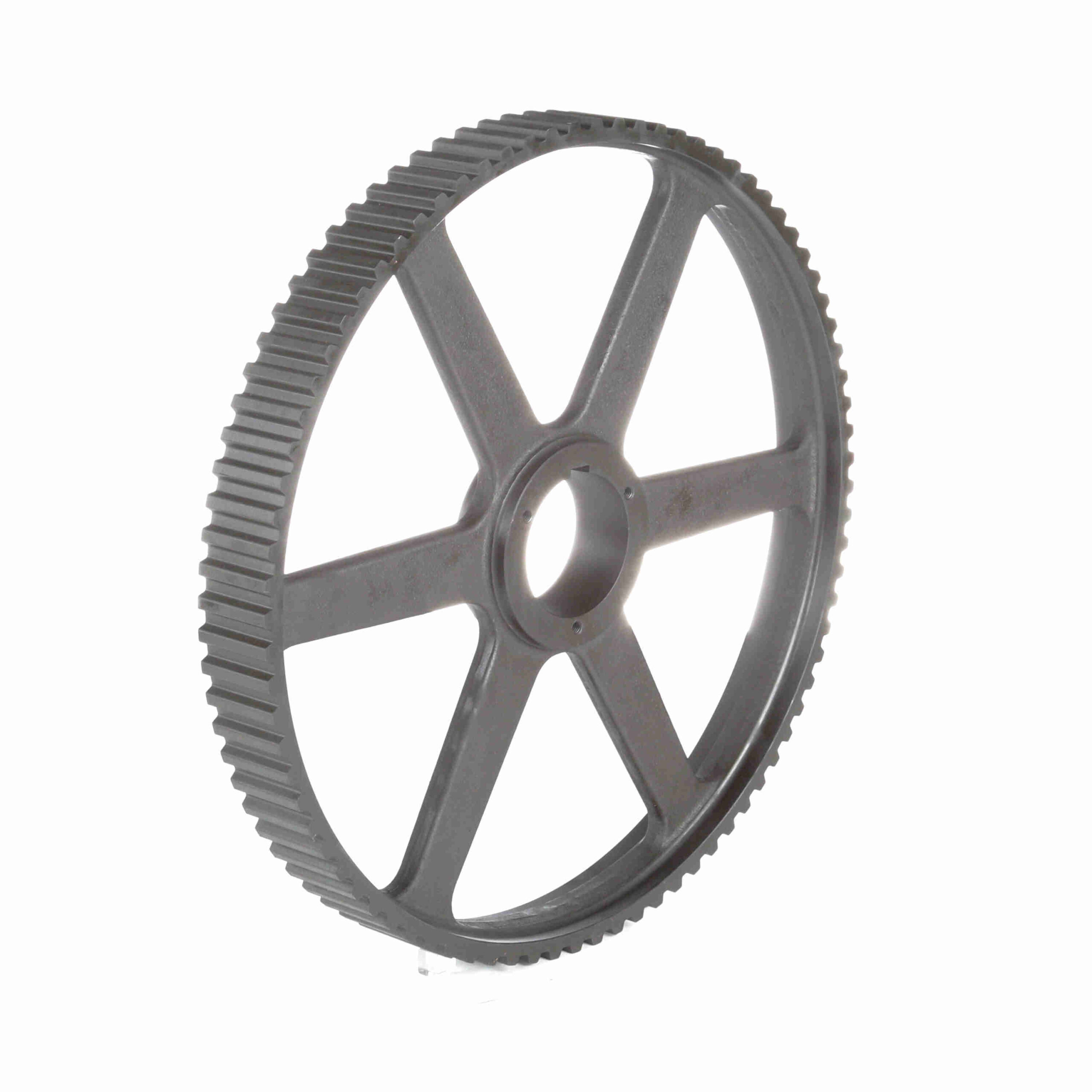

Browning Steel Bushed Bore Gearbelt Pulley – 84XHR200
$2,597.52
Out of stock
Out of stock
| Number of teeth: | 84 | Bore Range: | 1 1/8 to 3 3/4 |
|---|---|---|---|
| Width (mm): | 50.8 mm | Product Type: | Gearbelt Pulley |
| Bore Type: | Bushed Bore | Material: | Cast Iron |
| Outside Diameter (in): | 23.286 in | Belt Section: | XH |
| Pitch Diameter (in): | 23.396 in | Width (in): | 2 in |
| Inside Diameter (in): | 22 in | Outside Diameter (mm): | 591.4644 mm |
| Face Width: | 2.5625 | Pulley Construction: | Arm |
| Hub Projection: | 0.87525 | Length Through Bore: | 2.875 |
| Number of Hubs: | 1 | Overall Length (in): | 3.43725 in |
| With Flanges: | No Flanges | Hub Diameter (in): | 5.375 in |
| UPC: | 662289184477 | Weight: | 54.70 LB |
| HTC: | 8483.50.9080 | Country of Origin: | United States of America |
