- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
80R60

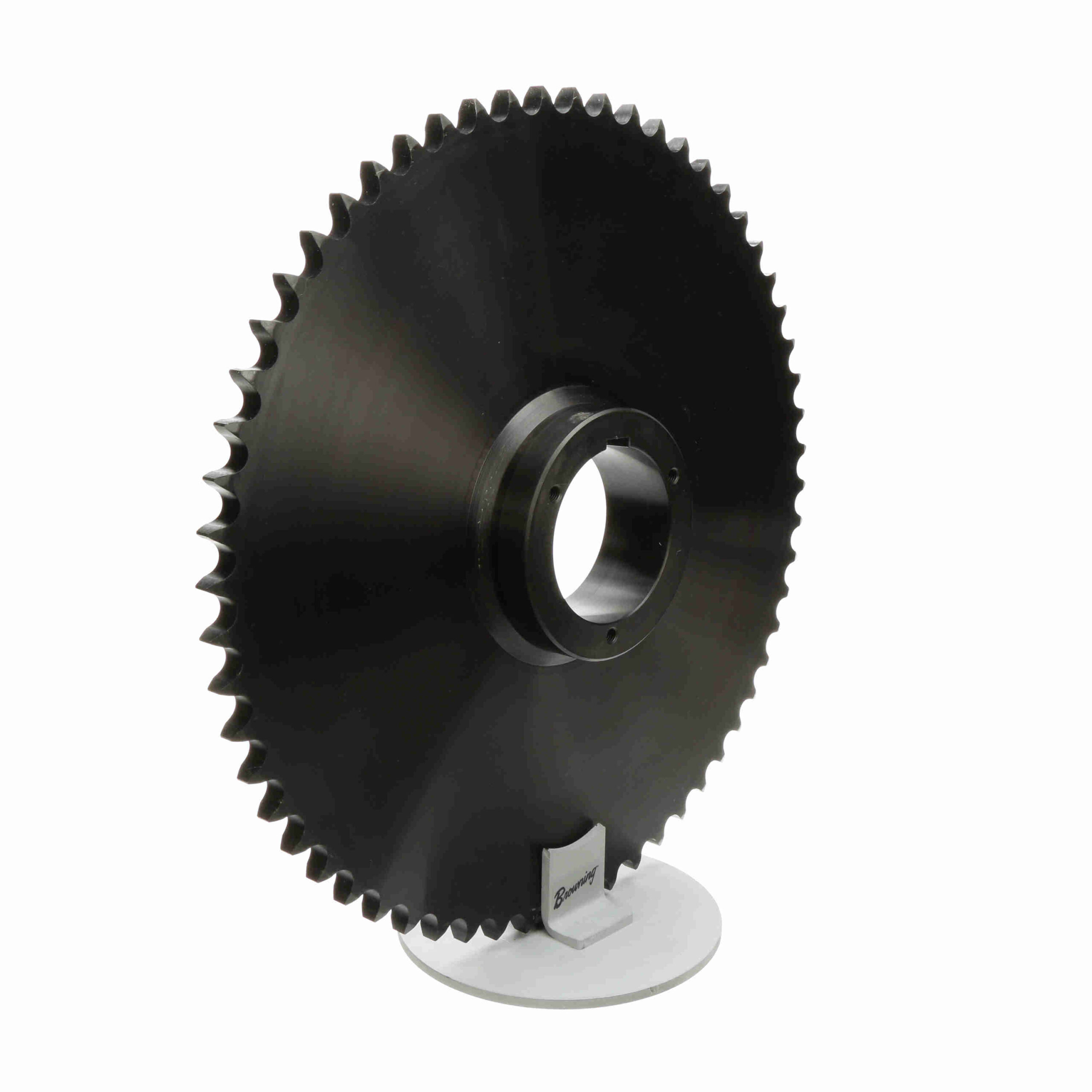

Browning Steel Bushed Bore Roller Chain Sprocket – 80R60
$1,135.83
Out of stock
Out of stock
| Bore (Max) (in): | 3.75 in | Product Type: | Bushed Roller Chain Sprocket |
|---|---|---|---|
| Chain Used: | No. 80, 1 in. Pitch ANSI Chain | Bushing Used: | Split Taper |
| Chain Pitch (in): | 1 in | Material: | Steel |
| Number of teeth: | 60 | Pitch Diameter (in): | 19.107 in |
| Bore (Min) (in): | 1.125 in | Overall Length (in): | 3.15625 in |
| Bore Type: | Bushed Bore | Outside Diameter (in): | 19.695 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 5.375 in |
| Minimum Bore (in): | 1 | Maximum Bore (in): | 3.75 |
| Pitch Type: | Single | Number of Hubs: | 1 |
| Width Across Tooth Sets: | 0.575 | UPC: | 662289137039 |
| Weight: | 49.08 LB | Packaged Length: | 19.80 Inches |
| Packaged Width: | 19.30 Inches | Packaged Height: | 1.40 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
