- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
80R48

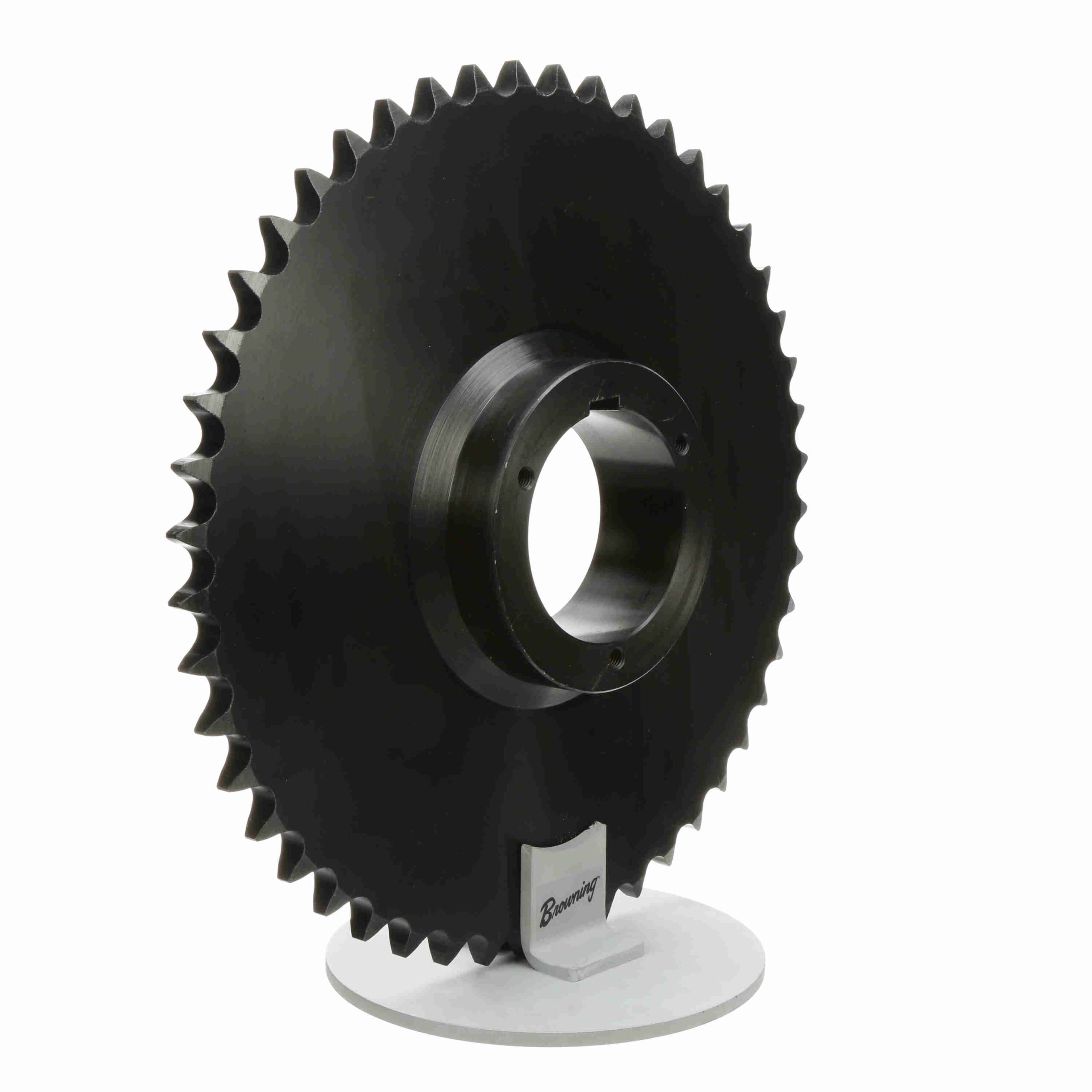

Browning Steel Bushed Bore Roller Chain Sprocket – 80R48
$756.51
Out of stock
Out of stock
| Bore (Max) (in): | 3.75 in | Bore (Min) (in): | 1.125 in |
|---|---|---|---|
| Chain Used: | No. 80, 1 in. Pitch ANSI Chain | Material: | Steel |
| Bushing Used: | Split Taper | Number of teeth: | 48 |
| Product Type: | Bushed Roller Chain Sprocket | Chain Pitch (in): | 1 in |
| Pitch Diameter (in): | 15.29 in | Overall Length (in): | 3.15625 in |
| Outside Diameter (in): | 15.857 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 5.375 in |
| Maximum Bore (in): | 3.75 | Minimum Bore (in): | 1.125 |
| Width Across Tooth Sets: | 0.575 | Number of Hubs: | 1 |
| Pitch Type: | Single | UPC: | 662289147045 |
| Weight: | 32.30 LB | Packaged Length: | 15.86 Inches |
| Packaged Width: | 15.86 Inches | Packaged Height: | 3.16 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
