- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
80Q42

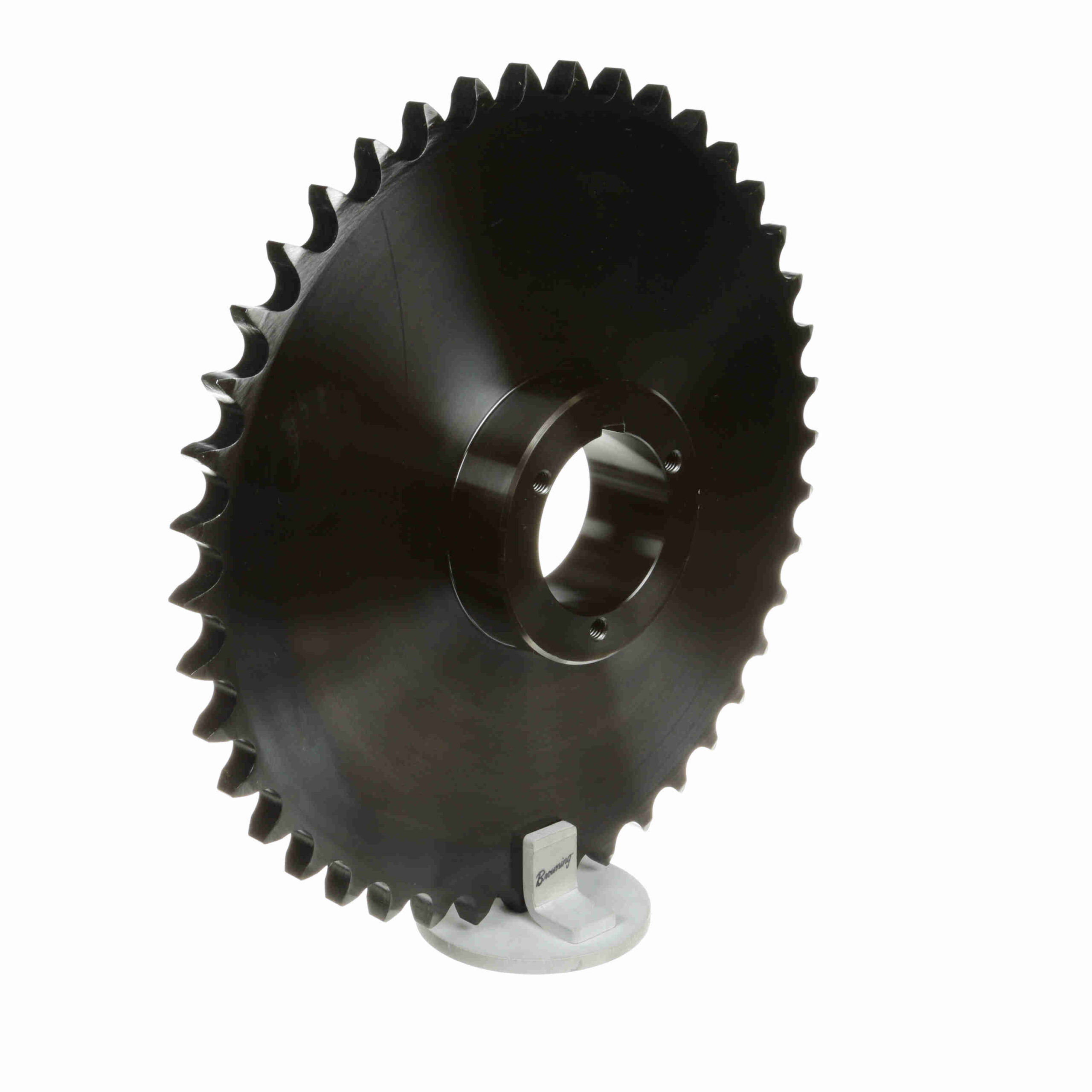

Browning Steel Bushed Bore Roller Chain Sprocket – 80Q42
$699.46
Availability: 1 in stock
Availability: 1 in stock
| Pitch Diameter (in): | 13.381 in | Product Type: | Bushed Roller Chain Sprocket |
|---|---|---|---|
| Bore (Max) (in): | 2.6875 in | Material: | Steel |
| Chain Used: | No. 80, 1 in. Pitch ANSI Chain | Bore (Min) (in): | 0.75 in |
| Bushing Used: | Split Taper | Chain Pitch (in): | 1 in |
| Number of teeth: | 42 | Outside Diameter (in): | 13.944 in |
| Overall Length (in): | 2.828125 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Minimum Bore (in): | 0.75 | Maximum Bore (in): | 2.6875 |
| Width Across Tooth Sets: | 0.575 | Number of Hubs: | 1 |
| Pitch Type: | Single | UPC: | 662289206926 |
| Weight: | 24.74 LB | Packaged Length: | 15.10 Inches |
| Packaged Width: | 15.30 Inches | Packaged Height: | 3.50 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
