- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Browning type A steel plate roller chain sprockets are offered in single pitch range of 25-200
80A28

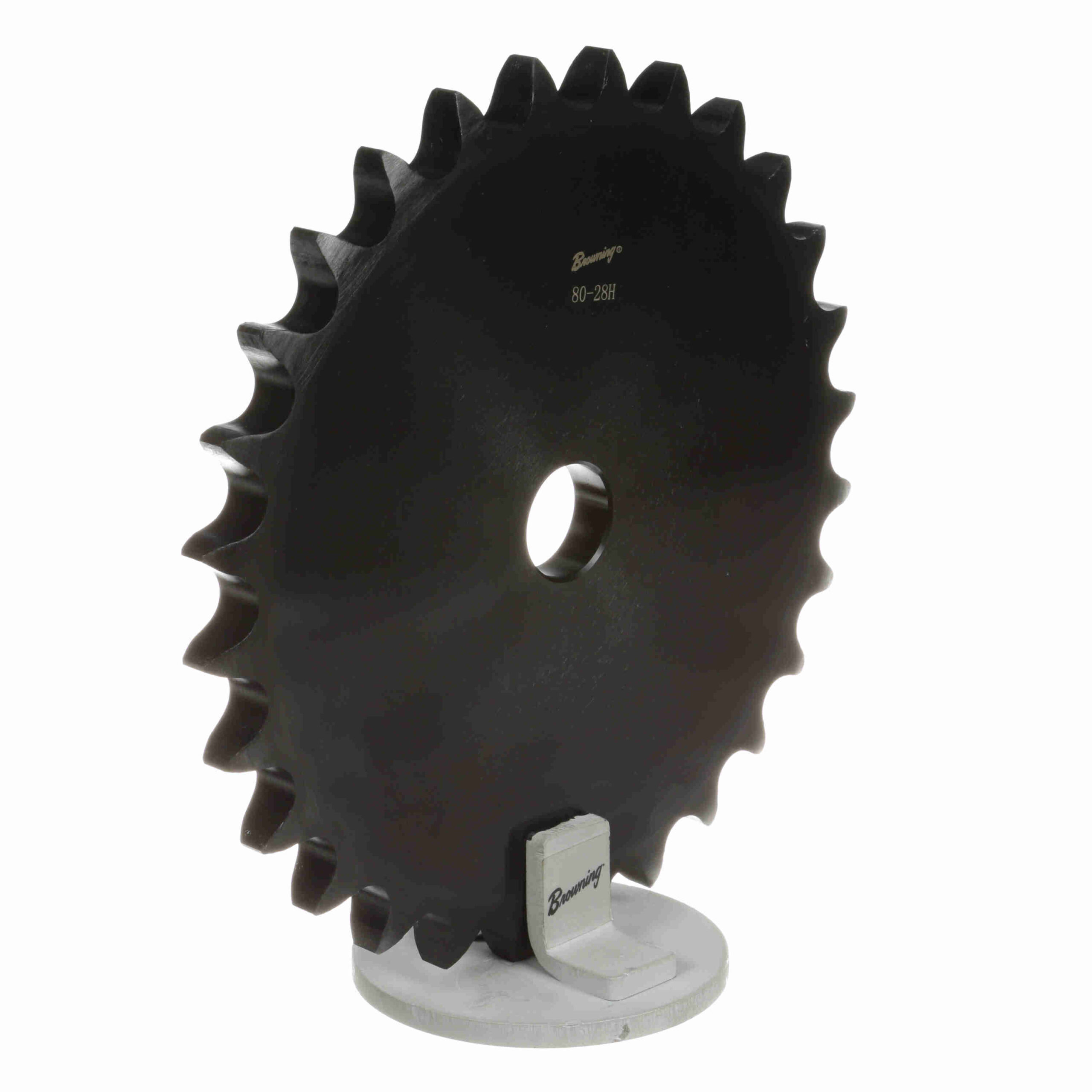

Browning Steel Minimum Plain Bore Roller Chain Sprocket – 80A28
$126.60
Out of stock
Out of stock
| Chain Pitch (in): | 1 in | Product Type: | Type "A" Plate Sprocket |
|---|---|---|---|
| Number of teeth: | 28 | Chain Used: | No. 80, 1 in. Pitch ANSI Chain |
| Material: | Steel | Bore Type: | Minimum Plain Bore |
| Outside Diameter (in): | 9.475 in | Pitch Diameter (in): | 8.931404 in |
| Bore (in): | 1.1875 in | Number of Strands/Width: | 1 |
| Hub Type: | Type A | Length Through Bore (in): | 0.575 in |
| Maximum Bore (in): | 1 | Width Across Tooth Sets: | 0.575 |
| Hardened Teeth: | With Hardened Teeth | Number of Hubs: | 0 |
| UPC: | 662289302413 | Weight: | 9.66 LB |
| Packaged Length: | 10.50 Inches | Packaged Width: | 10.50 Inches |
| Packaged Height: | 1.30 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
