- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
80 C/L S/C S/F

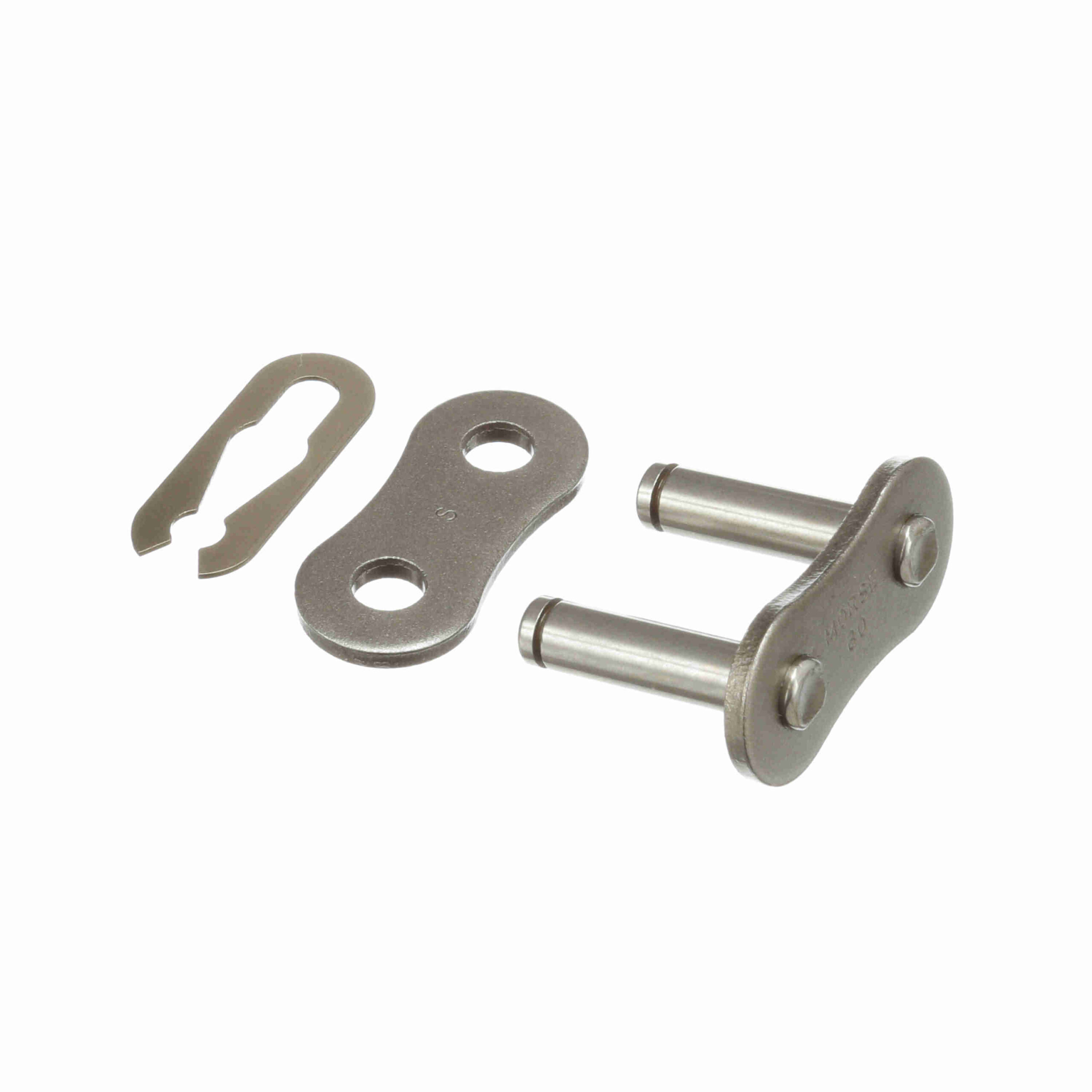

Morse Standard Roller Chain Spring Clip Connecting Link – 80 C/L S/C S/F
$4.96
Out of stock
Out of stock
| Number of Connecting Links Included: | 20 | Connecting Link - Slip Fit: | Spring Clip |
|---|---|---|---|
| Material: | Steel | Number of Strands/Width: | 1 |
| Centerline to Opposite cotter Pin Side: | 0.637 | Average Ultimate Tensile Strength (psi): | 14, 500 |
| Roller Diameter (in): | 0.625 in | Roller Width (in): | 0.625 in |
| Side Plate Cfg.: | Hourglass | Plate Thickness: | 0.125 |
| Width Over Pins/Total Width: | 1.274 | Inside Plate Height: | 0.934 |
| Pin Diameter (in): | 0.312 in | Chain Size: | 80 |
| Centerline to Outside of cotter Pin: | 0.741 | Total Length: | 10 FT ft |
| Chain Type: | Standard | Chain Pitch (in): | 1 in |
| Product Type: | Roller Chain | Chain Construction: | Spring Clip |
| Link Type: | Connecting Link | UPC: | 662288593232 |
| Weight: | 0.14 LB | Packaged Length: | 2.95 Inches |
| Packaged Width: | 2.80 Inches | Packaged Height: | 1.25 Inches |
| HTC: | 7315.19.0000 | Country of Origin: | Taiwan, Republic of China |
