- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
80-3C 10FT

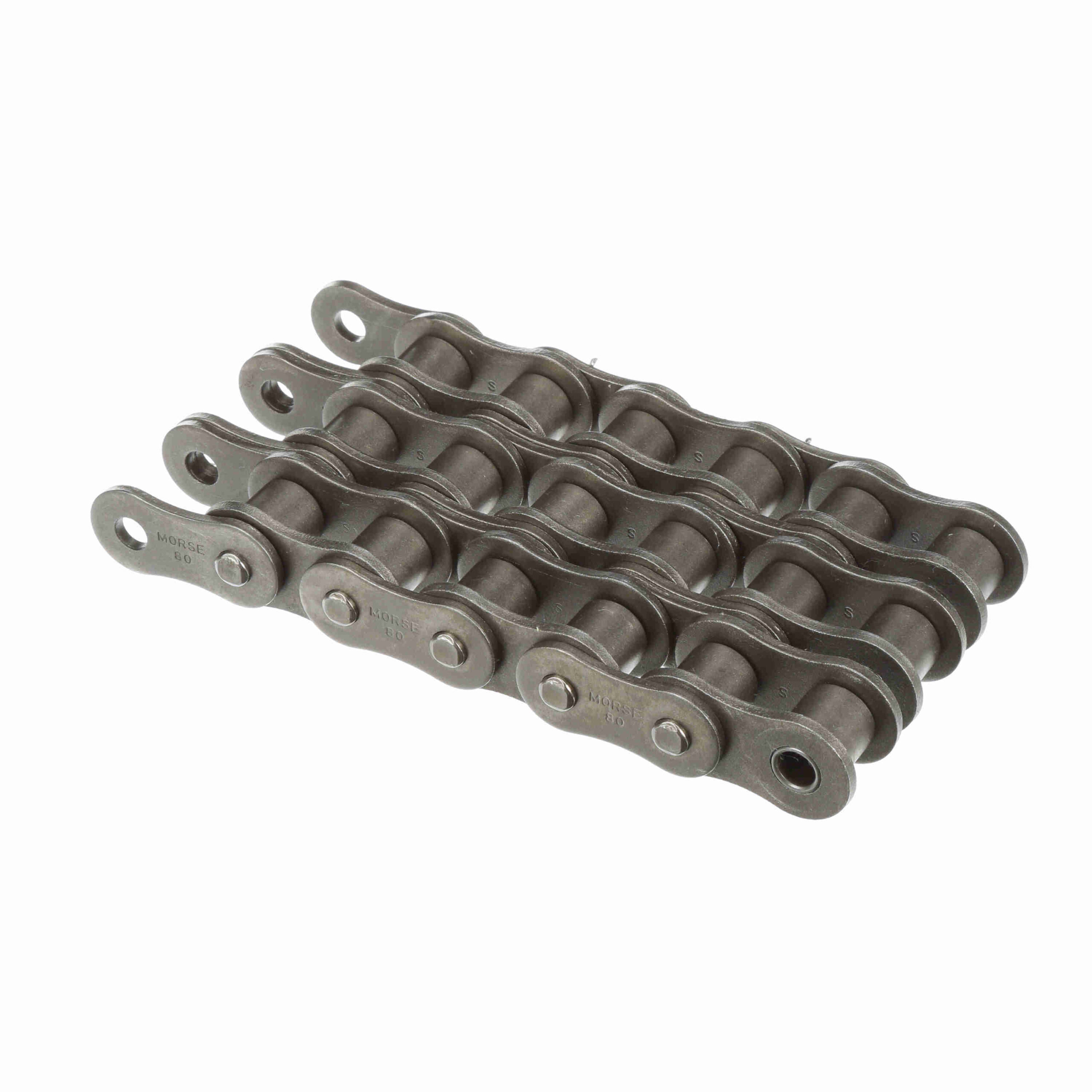

Morse Standard Cottered Roller Chain – 80-3C 10FT
$155.81
Out of stock
Out of stock
| Chain Size: | 80 | Average Ultimate Tensile Strength (psi): | 43, 500 |
|---|---|---|---|
| Side Plate Cfg.: | Hourglass | Inside Plate Height: | 0.934 |
| Plate Thickness: | 0.125 | Number of Connecting Links Included: | 1 |
| Width Over Pins/Total Width: | 3.585 | Center Plates: | Loose Fit, Press Fit Optional |
| Roller Diameter (in): | 0.625 in | Chain Construction: | Cottered |
| Roller Width (in): | 0.625 in | Centerline to Outside of cotter Pin: | 1.905 |
| Centerline to Opposite cotter Pin Side: | 1.792 | Number of Strands/Width: | 3 |
| Material: | Steel | Pin Diameter (in): | 0.312 in |
| Chain Pitch (in): | 1 in | Chain Type: | Standard |
| Product Type: | Roller Chain | Total Length: | 10 FT ft |
| Coating: | Uncoated | Measurement System: | Imperial |
| Standard Met: | ANSI B29.1 | Transverse Pitch: | 1.153 |
| Pin Length - Riveted: | 3.585 | UPC: | 662288455400 |
| Weight: | 5.34 LB | Packaged Length: | 11.90 Inches |
| Packaged Width: | 11.60 Inches | Packaged Height: | 4.10 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
