- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Morse torque limiter is a spring loaded device. The load on the friction pads is adjusted so that process torque is transmitted. An overload causes the unit to slip.
- Morse torque limiters are simple design, economical, easy adjustment, compact and dependable
700A-1 TL 1-3/4 FB

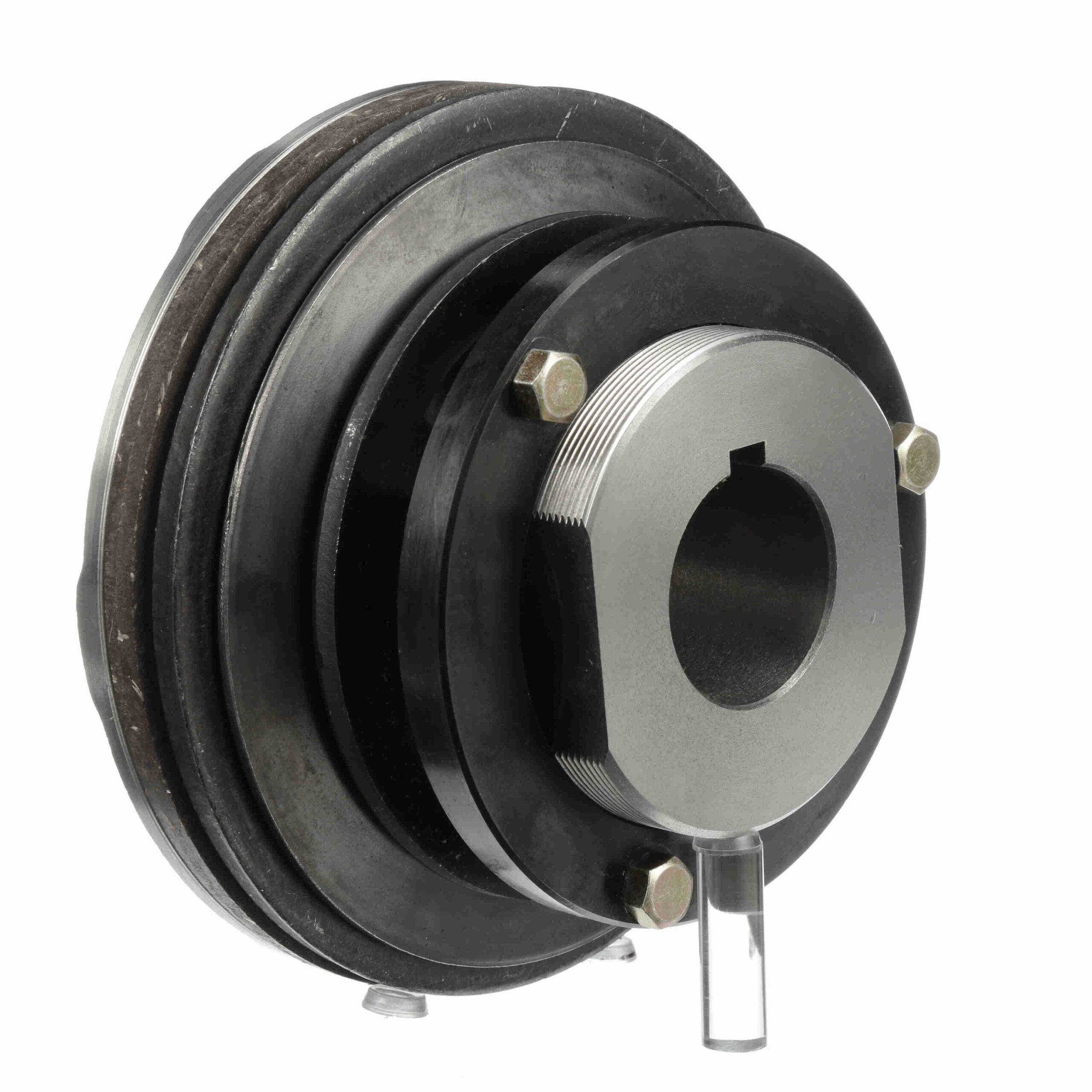

Morse Torque Limiter Model – 700A – 700A-1 TL 1-3/4 FB
$736.10
Out of stock
Out of stock
| Reset Type: | Automatic | Backlash: | Zero |
|---|---|---|---|
| Outside Diameter (in): | 7 in | Total Length (mm): | 98.425 mm |
| Outside Diameter (mm): | 177.8 mm | Type: | Torque Overload Devices |
| Series / Model: | 700A | Unit Accuracy: | 0.25 |
| Bore Shape: | Straight Bore | Bore Size (in): | 1.75 in |
| Recovery Style: | Automatic | Detection Method: | Friction Pad |
| Total Length (in): | 3.875 in | Torque [Min] (N-m): | 115.6 |
| Trip Torque [Min]: | 85 | Sprocket Bore Diameter: | 4.129/4.131 |
| Maximum Bore w/ Key, Setscrew: | 2.625 | Disconnect Method: | Friction Pad |
| Sensor Plate: | No | Torque Capacity [Max] (lb-ft): | 420 |
| Product Type: | Torque Limiter | Torque Capacity [Min] (lb-ft): | 85 |
| Max RPM: | 1, 000 | Torque [Max] (N-m): | 571.2 |
| Bore (Max) (in): | 1.75 in | Bore (Min) (in): | 1.75 in |
| Minimum Sprocket Teeth: | #40 (48 Teeth) | #80 (26 Teeth) | #100 (21 Teeth) |
| #160 (15 Teeth) | 1 | Finished w/ Keyway | 1 |
| 662288479154 | 1 | 17.08 LB | 1 |
| 7.50 Inches | 1 | 6.20 Inches | 1 |
| 8483.60.8000 | 1 | United States of America | 1 |
