- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
6TB34

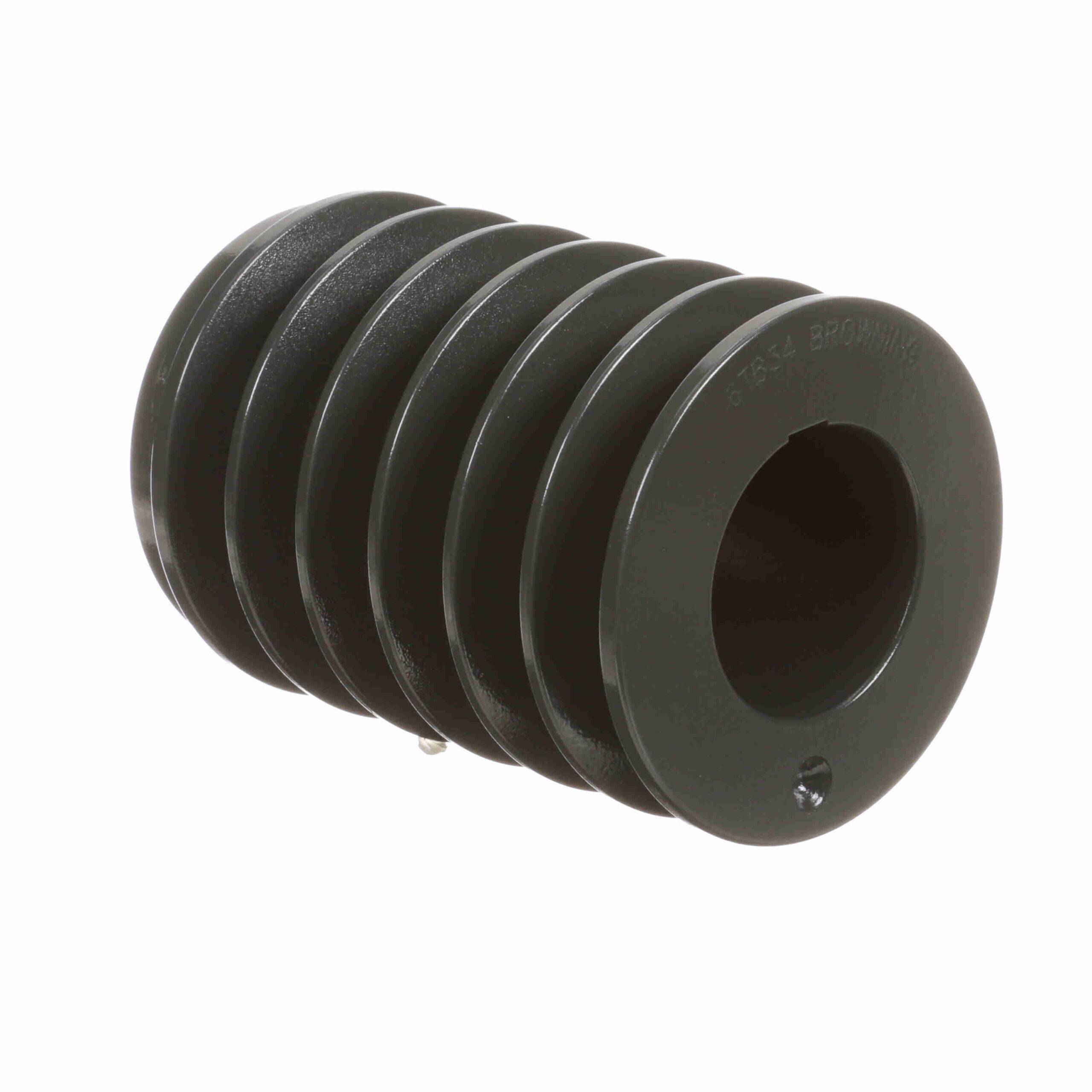

Browning 6 Groove Cast Iron Bushed Bore Multiple Sheave – 6TB34
$700.88
Out of stock
Out of stock
| Model Name: | 6TB-S_Sheave_Master | Pulley Material: | Cast Iron |
|---|---|---|---|
| Material: | Cast Iron | Bushing Used: | P2 |
| Number of Grooves: | 6 | Overall Length (in): | 6.015625 in |
| Outside Diameter (in): | 3.75 in | Pitch Diameter (B): | 3.7 |
| Pitch Diameter (A): | 3.2 | Datum Diameter (B): | 3.4 |
| Datum Diameter (A): | 3 | Product Type: | Multiple Sheaves |
| Belt Section: | A, B | Bore (Min) (in): | 0.75 in |
| Bore Type: | Split Taper Bushed | Pulley Construction: | Plain |
| Bushing Bore Range: | 0.750 - 1.750 | Keyway Size: | .375 |
| Face Width (in): | 4.75 | Overall Width (in): | 6.0625 |
| UPC: | 662289241088 | Weight: | 6.44 LB |
| Packaged Length: | 7.80 Inches | Packaged Width: | 8.00 Inches |
| Packaged Height: | 4.00 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
