- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
6S8V180

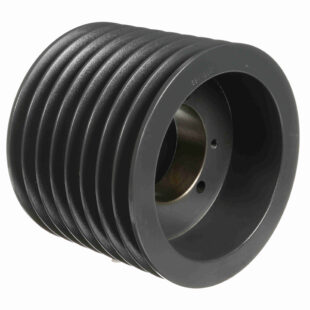

Browning 6 Groove Cast Iron Bushed Bore Multiple Sheave – 6S8V180
Out of stock
| Pulley Material: | Cast Iron | Bushing Used: | S1 |
|---|---|---|---|
| Pitch Diameter (8V): | 17.8 | Overall Length (in): | 7.125 in |
| Outside Diameter (in): | 18 in | Number of Grooves: | 6 |
| Material: | Cast Iron | Product Type: | Multiple Sheaves |
| Belt Section: | 8V | Bore (Min) (in): | 1.6875 in |
| Bore Type: | Split Taper Bushed | Keyway Size: | .750 |
| Bushing Bore Range: | 1.6875 - 4.1875 | UPC: | 662289111930 |
| Weight: | 154.00 LB | Packaged Length: | 18.00 Inches |
| Packaged Width: | 18.00 Inches | Packaged Height: | 7.13 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
