- Combination Groove – All Browning B5V Sheaves permit the running of A, 4L, B, 5L& 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Broad horsepower coverage – The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- New Casting design – The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.

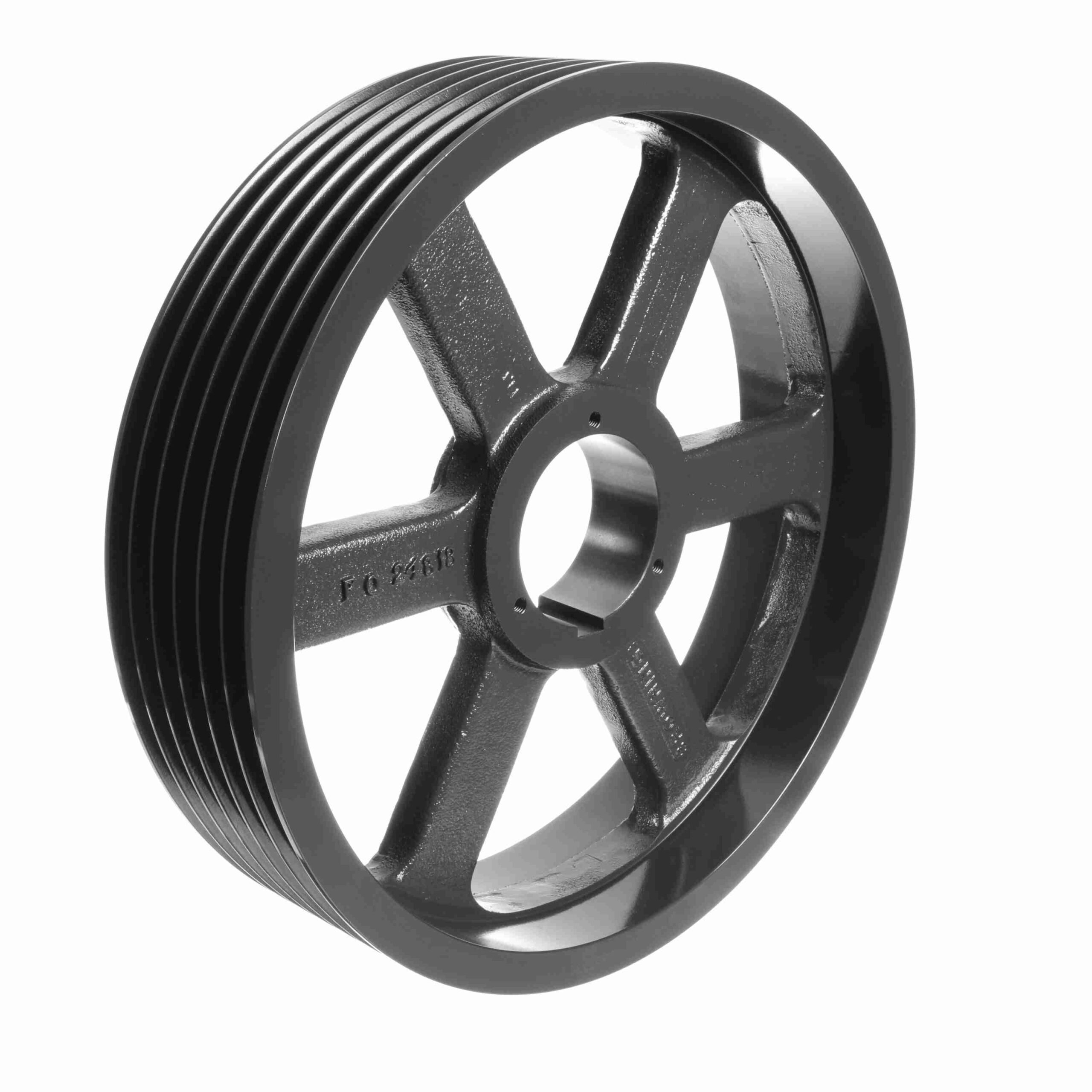

6B5V184
Browning 6 Groove Cast Iron Bushed Bore Multiple Sheave – 6B5V184
$1,427.31
Out of stock
Out of stock
| Bushing Used: | R1 | Pitch Diameter (5V): | 18.5 |
|---|---|---|---|
| Datum Diameter (B): | 18.4 | Overall Length (in): | 4.59375 in |
| Outside Diameter (in): | 18.68 in | Number of Grooves: | 6 |
| Model Name: | 6B5V-SheaveMaster | Material: | Cast Iron |
| Datum Diameter (A): | 18 | Pitch Diameter (B): | 18.7 |
| Pitch Diameter (A): | 18.2 | Pulley Material: | Cast Iron |
| Bore (Min) (in): | 1.125 in | Product Type: | Multiple Sheaves |
| Belt Section: | A, B, 5V | Bore Type: | Split Taper Bushed |
| Keyway Size: | .750 | Face Width (in): | 4.5938 |
| Bushing Bore Range: | 1.125 - 3.750 | Pulley Construction: | Spoked |
| Overall Width (in): | 4.59375 | UPC: | 662460344621 |
| Weight: | 66.85 LB | Packaged Length: | 18.75 Inches |
| Packaged Width: | 18.75 Inches | Packaged Height: | 4.75 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
