- Unmatched Quality and Performance in Morse Brand Chain
- Roller chain with the self-lubricating properties of oil impregnated, sintered metal bushings to assure longer, more reliable chain service where external lubrication is prohibited or severely limited.
- Available in package quantities or via quick-turnaround cut-to-length
- Rigid manufacturing processes result in a fully-featured chain.
60LL R 10FT

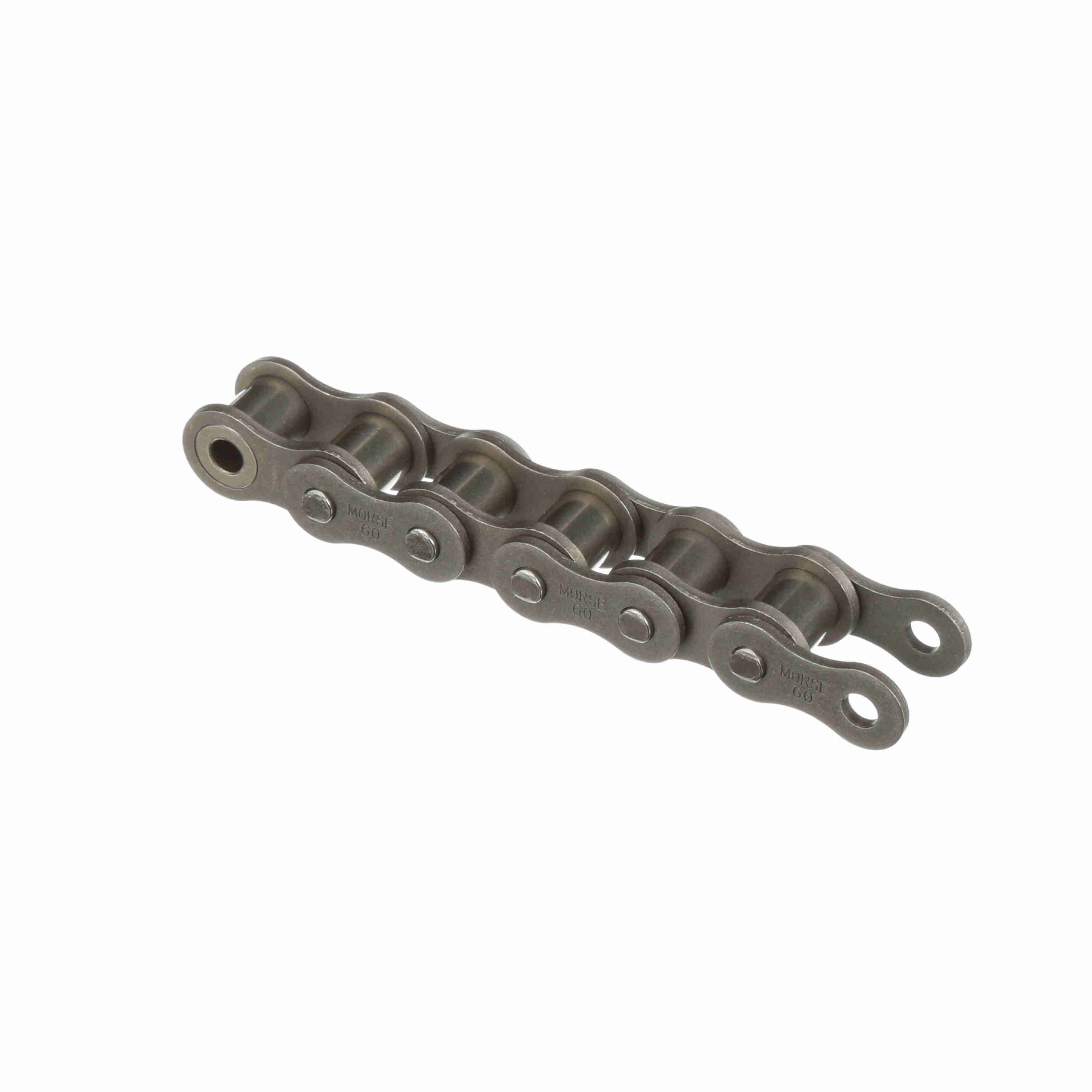

Morse Sintered Bushing Riveted Roller Chain – 60LL R 10FT
$22.44
Out of stock
Out of stock
| Roller Width (in): | 0.5 in | Inside Plate Height: | 0.7 |
|---|---|---|---|
| Chain Size: | 60 | Side Plate Cfg.: | Hourglass |
| Chain Construction: | Riveted | Number of Connecting Links Included: | 1 |
| Material: | Steel | Centerline to Outside of cotter Pin: | 0.586 |
| Plate Thickness: | 0.094 | Width Over Pins/Total Width: | 0.99 |
| Number of Strands/Width: | 1 | Average Ultimate Tensile Strength (psi): | 7, 500 |
| Centerline to Opposite cotter Pin Side: | 0.495 | Pin Diameter (in): | 0.234 in |
| Roller Diameter (in): | 0.468 in | Chain Pitch (in): | 0.75 in |
| Product Type: | Roller Chain | Chain Type: | Sintered Bushing |
| Total Length: | 10 FT ft | Coating: | Uncoated |
| Measurement System: | Imperial | Standard Met: | ANSI B29.1 |
| Pin Length - Riveted: | 0.99 | UPC: | 662288400509 |
| Weight: | 0.97 LB | Packaged Length: | 10.20 Inches |
| Packaged Width: | 10.00 Inches | Packaged Height: | 1.60 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
