- Unmatched Quality and Performance in Morse Brand Chain
- Roller chain with the self-lubricating properties of oil impregnated, sintered metal bushings to assure longer, more reliable chain service where external lubrication is prohibited or severely limited.
- Available from Stock
- Rigid manufacturing processes result in a fully-featured chain.
60LL O/L

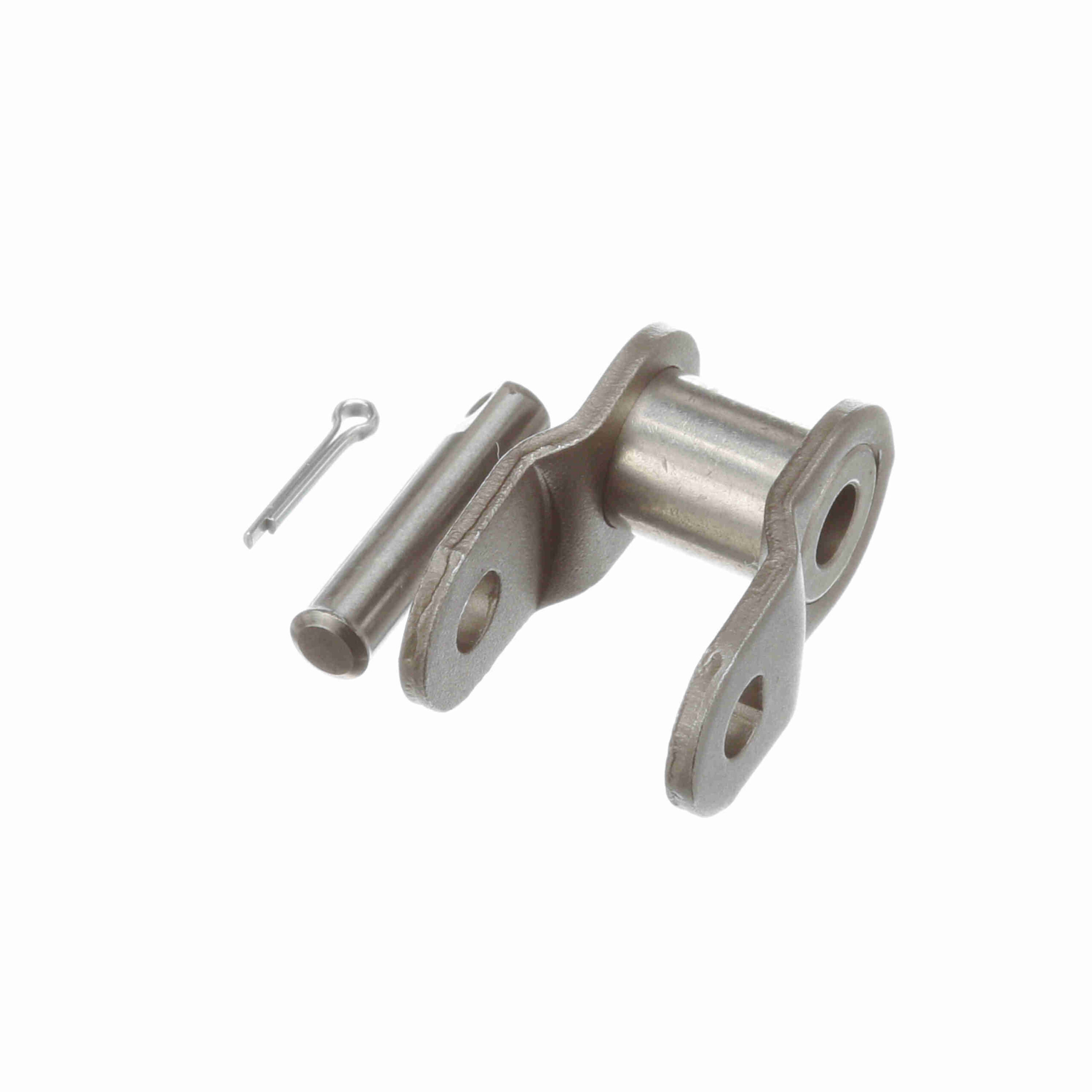

Morse Sintered Bushing Roller Chain Offset Link – 60LL O/L
$12.91
Out of stock
Out of stock
| Inside Plate Height: | 0.7 | Centerline to Opposite cotter Pin Side: | 0.495 |
|---|---|---|---|
| Average Ultimate Tensile Strength (psi): | 7, 500 | Chain Size: | 60 |
| Width Over Pins/Total Width: | 0.99 | Pin Diameter (in): | 0.234 in |
| Roller Width (in): | 0.5 in | Number of Strands/Width: | 1 |
| Centerline to Outside of cotter Pin: | 0.586 | Plate Thickness: | 0.094 |
| Roller Diameter (in): | 0.468 in | Material: | Steel |
| Single Pitch Offset Link: | Cottered | Side Plate Cfg.: | Hourglass |
| Chain Pitch (in): | 0.75 in | Product Type: | Roller Chain |
| Chain Type: | Sintered Bushing | Link Type: | Offset Link |
| UPC: | 662288400561 | Weight: | 0.07 LB |
| Packaged Length: | 2.35 Inches | Packaged Width: | 1.85 Inches |
| Packaged Height: | 1.35 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
