- Single Taper Bushing: Exclusive single TorqTaper Bushing installs from driving side of the unit for easy on – easy off mounting.
- Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.
- Standard Seals: Commercially available double lip seals ride on plunge ground shafts.
- Options and Accessories: Complete range of motor mounts, fan kits and backstop options.
608SMTP25B

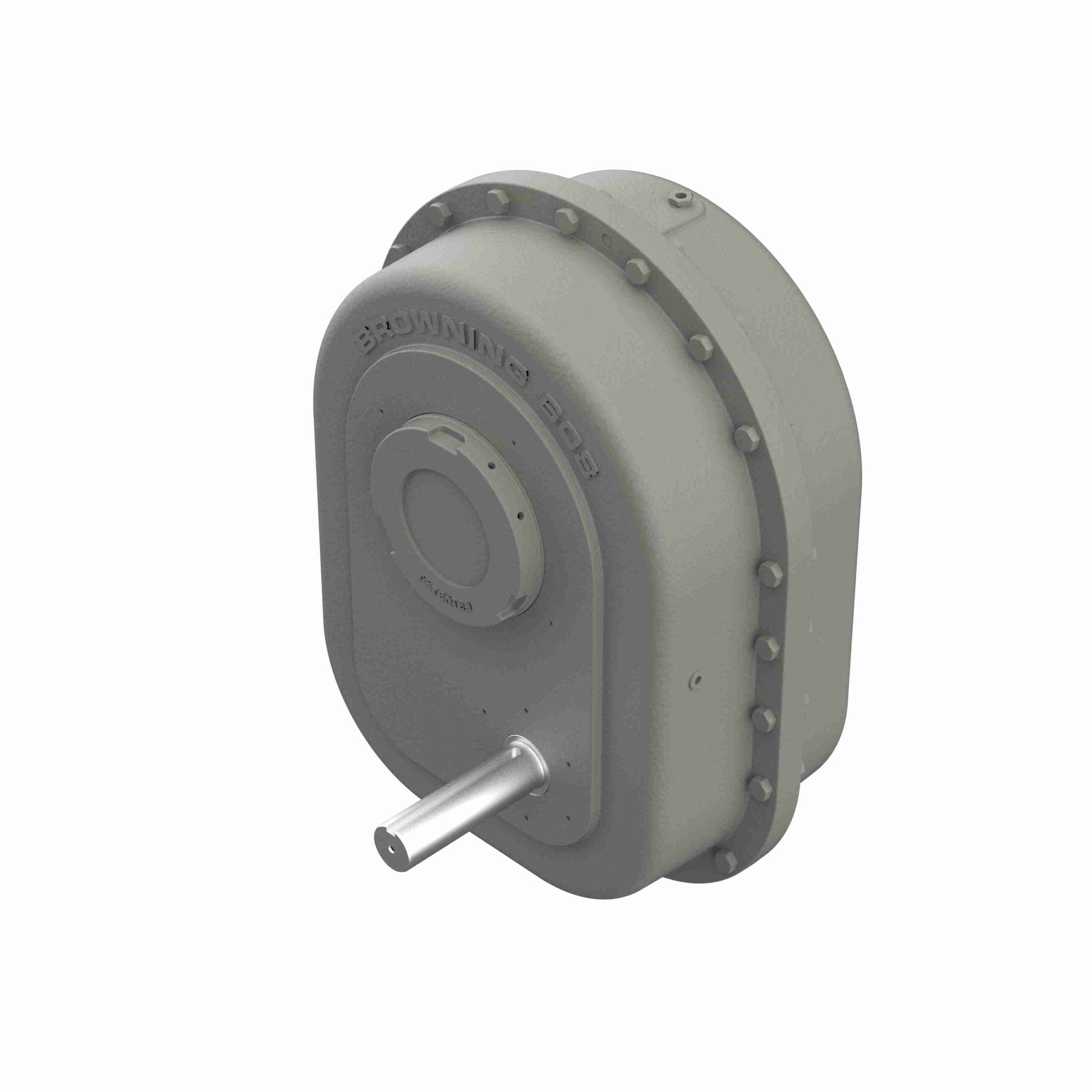

Browning Torque Taper Plus Shaft Mount Reducers Cast Iron Shaft Mount Tapered Bore Reducer – 608SMTP25B
$202,760.67
Out of stock
Out of stock
| Efficiency: | 80 | Input Torque: | 36.013 in-Lbs @1750 input rpm, 1 HP |
|---|---|---|---|
| Bolt Size (in): | 0.75 in | Output Speed: | 70 |
| Ratio: | 25:1 | Input Speed: | 1750 |
| Product Type: | TorqTaper Plus (SMTPB) | Housing Width (in): | 30.23 in |
| Standards met: | AGMA | Housing Length (in): | 21.96 in |
| Housing Height (in): | 39.58 in | Maximum Output Size (in): | 6.5 in |
| Reducer Size: | 608 | Gear Type: | Helical |
| Mounting Style: | Shaft mount | Ratio Range: | 25:1 |
| Input Style: | Shaft | Maximum Output Bore: | 6.5 |
| Reduction: | Double | Output Bore: | Tapered Bushing |
| Maximum Output RPM: | 80 | Drive Type: | Torque Arm |
| Input Shaft Diameter: | 2.688 | Output Shaft: | Tapered Bore |
| Input Shaft Keyseat (in): | 5/8 Sq. X 8 3/4 in | Housing Material: | Cast Iron |
| Output Torque Rating (in-lb): | 900.34 in-Lbs @1750 input rpm, 1 HP in/lbs | UPC: | 662460575643 |
| Weight: | 1, 889.00 LB | Packaged Length: | 28.86 Inches |
| Packaged Width: | 30.23 Inches | Packaged Height: | 39.58 Inches |
| HTC: | 8483.40.1000 | Country of Origin: | United States of America |
