- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
60-2 C/L S/C S/F

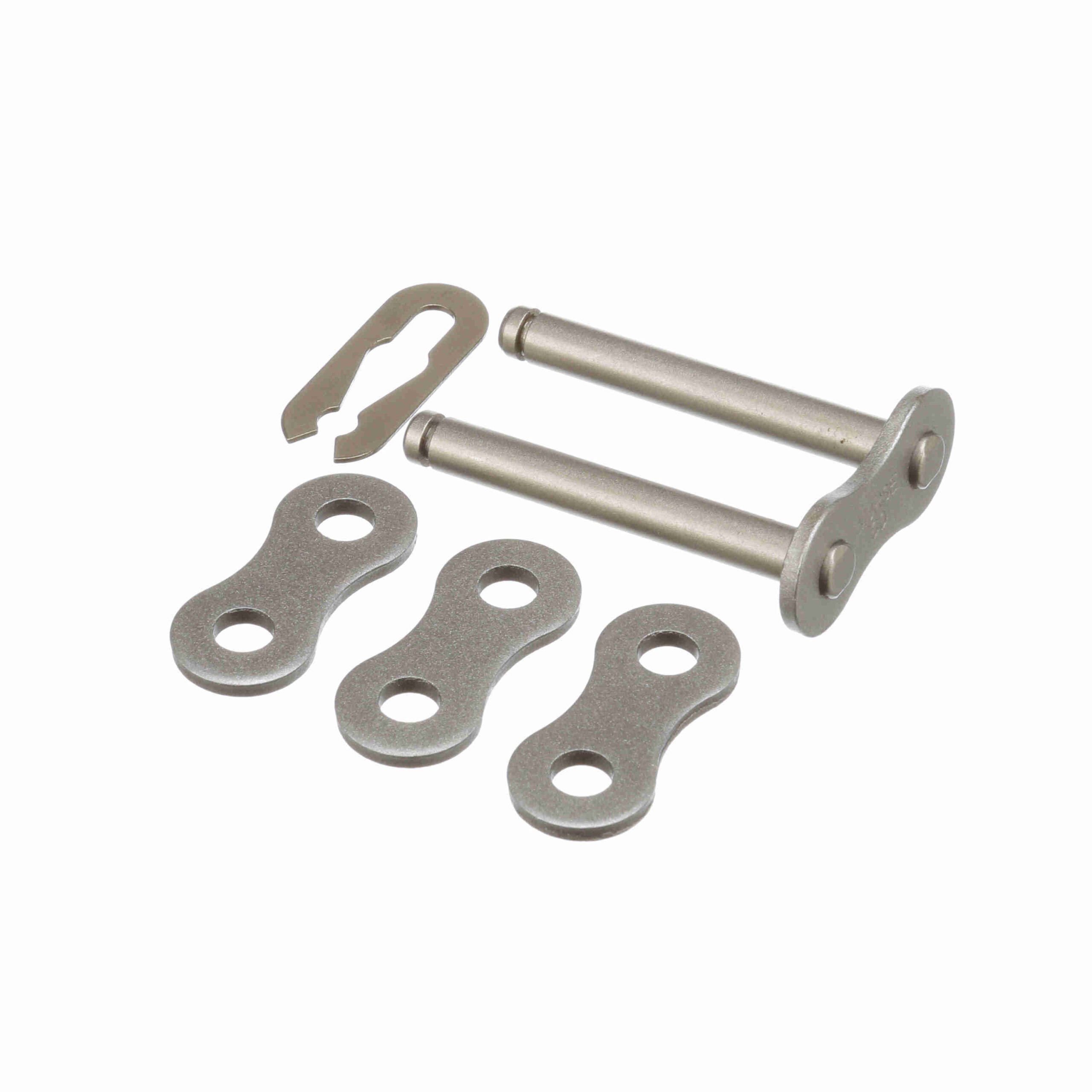

Morse Standard Roller Chain Spring Clip Connecting Link – 60-2 C/L S/C S/F
$6.70
Out of stock
Out of stock
| Width Over Pins/Total Width: | 1.893 | Chain Size: | 60 |
|---|---|---|---|
| Inside Plate Height: | 0.7 | Roller Width (in): | 0.5 in |
| Number of Connecting Links Included: | 1 | Plate Thickness: | 0.094 |
| Average Ultimate Tensile Strength (psi): | 17, 000 | Centerline to Outside of cotter Pin: | 1.038 |
| Centerline to Opposite cotter Pin Side: | 0.947 | Connecting Link - Slip Fit: | Spring Clip |
| Roller Diameter (in): | 0.468 in | Number of Strands/Width: | 2 |
| Material: | Steel | Side Plate Cfg.: | Hourglass |
| Pin Diameter (in): | 0.234 in | Product Type: | Roller Chain |
| Chain Type: | Standard | Chain Pitch (in): | 0.75 in |
| Chain Construction: | Spring Clip | Link Type: | Connecting Link |
| UPC: | 662288561699 | Weight: | 0.53 LB |
| Packaged Length: | 2.70 Inches | Packaged Width: | 2.90 Inches |
| Packaged Height: | 1.15 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
