- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
60-2 C/L C/P S/F

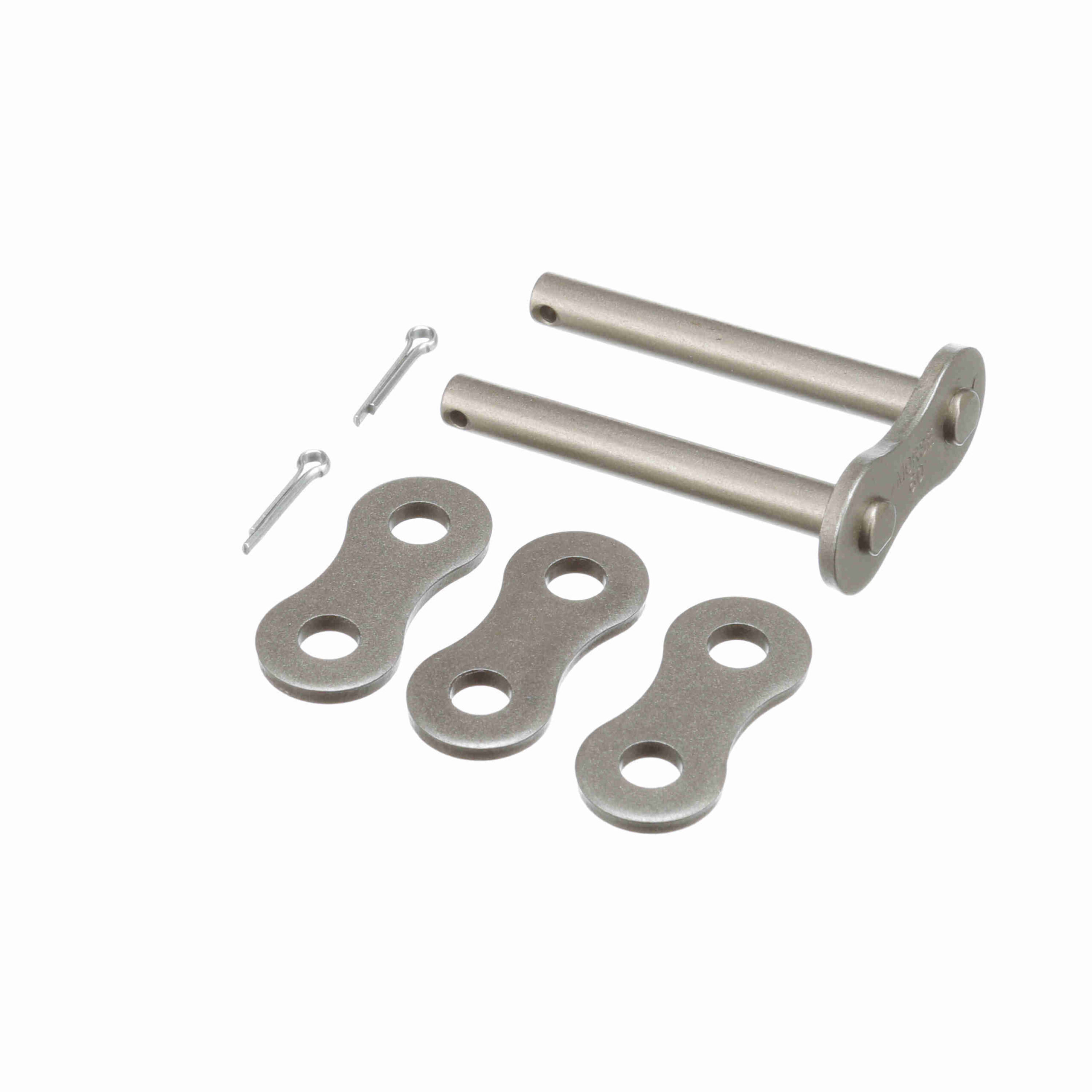

Morse Standard Roller Chain Cotter Pin Connecting Link – 60-2 C/L C/P S/F
$7.48
Out of stock
Out of stock
| Plate Thickness: | 0.094 | Number of Connecting Links Included: | 10 |
|---|---|---|---|
| Side Plate Cfg.: | Hourglass | Connecting Link - Slip Fit: | Cotter |
| Material: | Steel | Centerline to Opposite cotter Pin Side: | 0.947 |
| Chain Size: | 60 | Pin Diameter (in): | 0.234 in |
| Width Over Pins/Total Width: | 1.893 | Average Ultimate Tensile Strength (psi): | 17, 000 |
| Number of Strands/Width: | 2 | Roller Width (in): | 0.5 in |
| Inside Plate Height: | 0.7 | Centerline to Outside of cotter Pin: | 1.038 |
| Roller Diameter (in): | 0.468 in | Product Type: | Roller Chain |
| Chain Type: | Standard | Chain Pitch (in): | 0.75 in |
| UPC: | 662288468448 | Weight: | 0.53 LB |
| Packaged Length: | 2.50 Inches | Packaged Width: | 3.35 Inches |
| Packaged Height: | 1.25 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
