- Browning 358 Notched Belts are constructed of EPDM material wrapped top and bottom increased operating temperature range of -60F to 250F degrees.
- More horsepower in less space – Browning 358 Belts provide more horsepower in the same span than conventional ABC Belts. This enables you to reduce drive cost.
- Greater Horsepower allows for smaller drive sheaves – Using 358 Belts can allow for smaller drive components while still meeting the drive requirements , thus lowering the overall drive cost.
- Close Belt tolerance – Browning Belts offer the “Code 1” Match belt system on all classical and “358” Belts, allowing easy selection of just one match number for each belt size. This ensures tighter than RMA standards.
5VX470

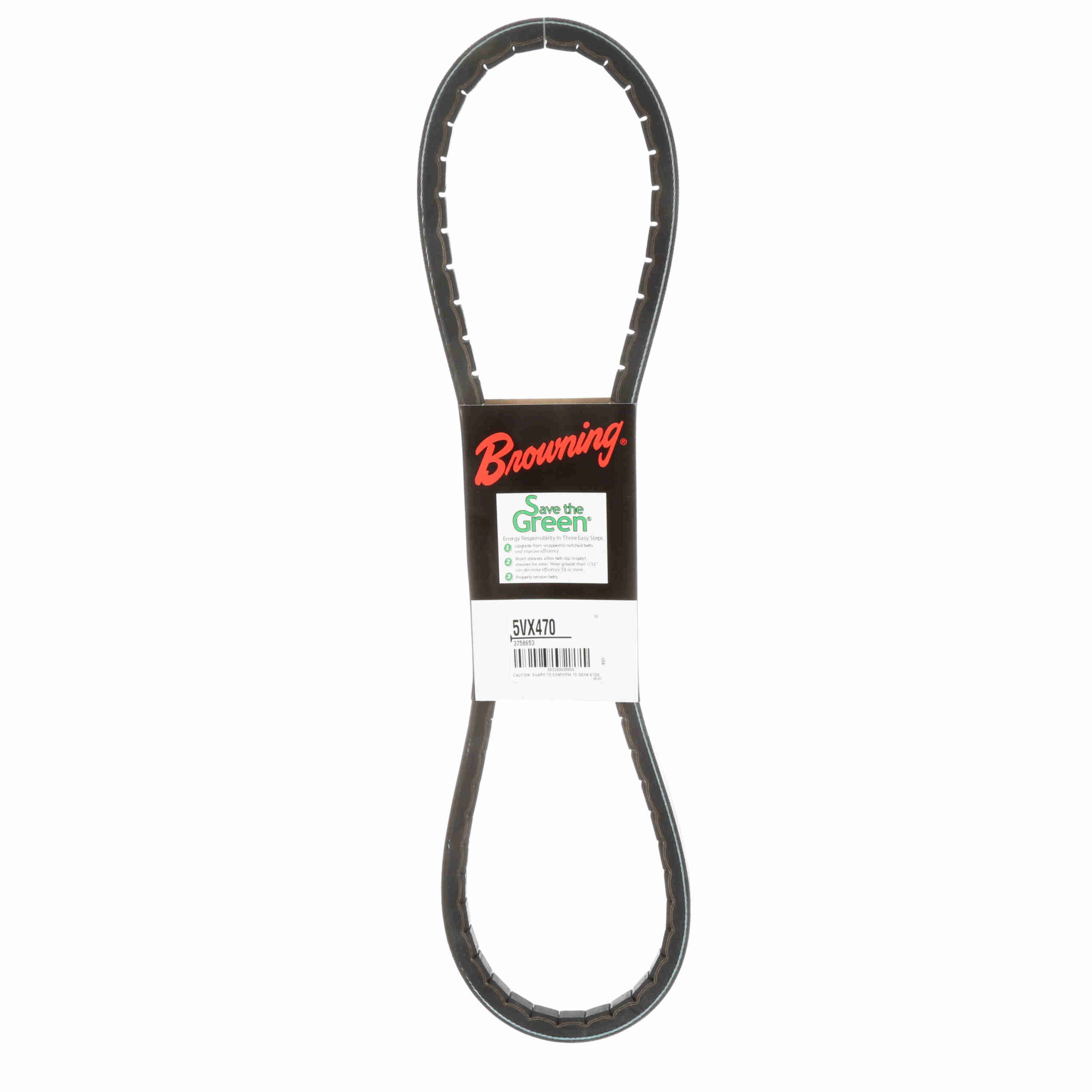

Browning EPDM Notched Belt 98% Efficient – 5VX470
$36.36
Availability: 13 in stock
Availability: 13 in stock
| Type: | 358 Gripnotch Notched V-Belts | Belt Section: | 5VX |
|---|---|---|---|
| Material: | EPDM | Outside Length/Diameter (in): | 47 in |
| Efficiency (%): | 0.98 | Outside Diameter (in): | 47 in |
| Product Type: | Notched Belt | Operating Temperature [Max] ?F: | 250 ?F |
| Operating Temperature [Max] ?C: | 121 ?C | Width (in): | 0.625 in |
| Pitch Length: | 47 | Reinforcing cord material: | Polyester |
| Number of Ribs: | 1 | Belt Series: | Narrow Series - Inch |
| Construction Type: | Cogged | Standards met: | ARPM IP-22 |
| Section Size: | 5VX | Height: | 0.531 |
| Operating Temperature Range: | -60 to +250 ?F | Resistance Features: | Oil & Chemical per ARPM IP-3-2, Static Dissipating per ARPM IP-3-3 |
| UPC: | 662289038800 | Weight: | 0.43 LB |
| Packaged Length: | 20.35 Inches | Packaged Width: | 5.3 Inches |
| Packaged Height: | 0.8 Inches | HTC: | 4010.32.3000 |
| Country of Origin: | United States of America |
