- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
5TB56

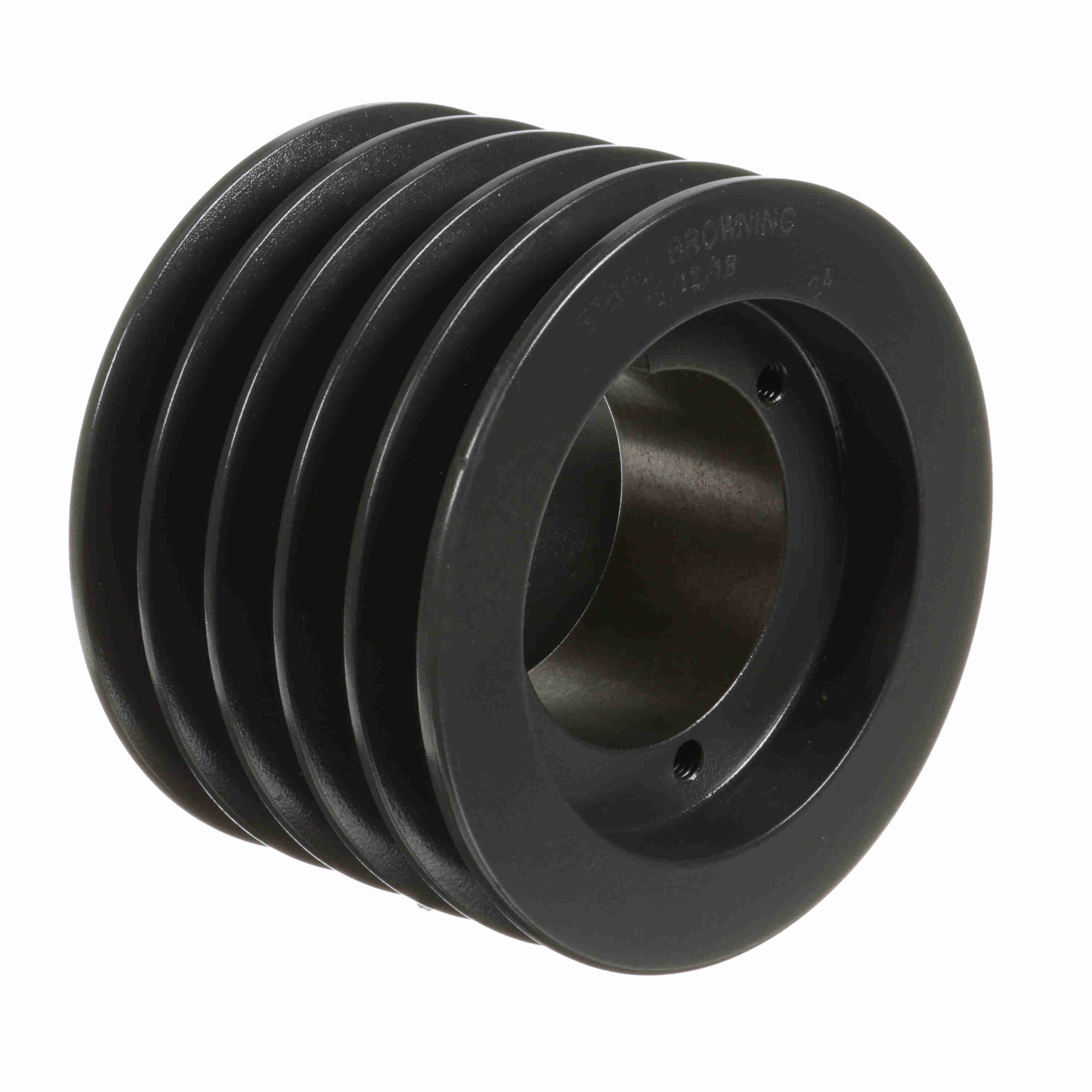

Browning 5 Groove Cast Iron Bushed Bore Multiple Sheave – 5TB56
Out of stock
| Material: | Cast Iron | Number of Grooves: | 5 |
|---|---|---|---|
| Datum Diameter (A): | 5.2 | Pitch Diameter (B): | 5.9 |
| Outside Diameter (in): | 5.95 in | Bushing Used: | Q1 |
| Model Name: | 5TB-M_Sheave_Master | Datum Diameter (B): | 5.6 |
| Pitch Diameter (A): | 5.4 | Pulley Material: | Cast Iron |
| Overall Length (in): | 4.328125 in | Belt Section: | A, B |
| Product Type: | Multiple Sheaves | Bore (Min) (in): | 0.75 in |
| Bore Type: | Split Taper Bushed | Pulley Construction: | Webbed |
| Keyway Size: | .500 | Bushing Bore Range: | 2.6875 - 2.6875 |
| Overall Width (in): | 4.28125 | Face Width (in): | 4 |
| UPC: | 662289310326 | Weight: | 12.25 LB |
| Packaged Length: | 6.06 Inches | Packaged Width: | 6.06 Inches |
| Packaged Height: | 4.00 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
