- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
5R5V103

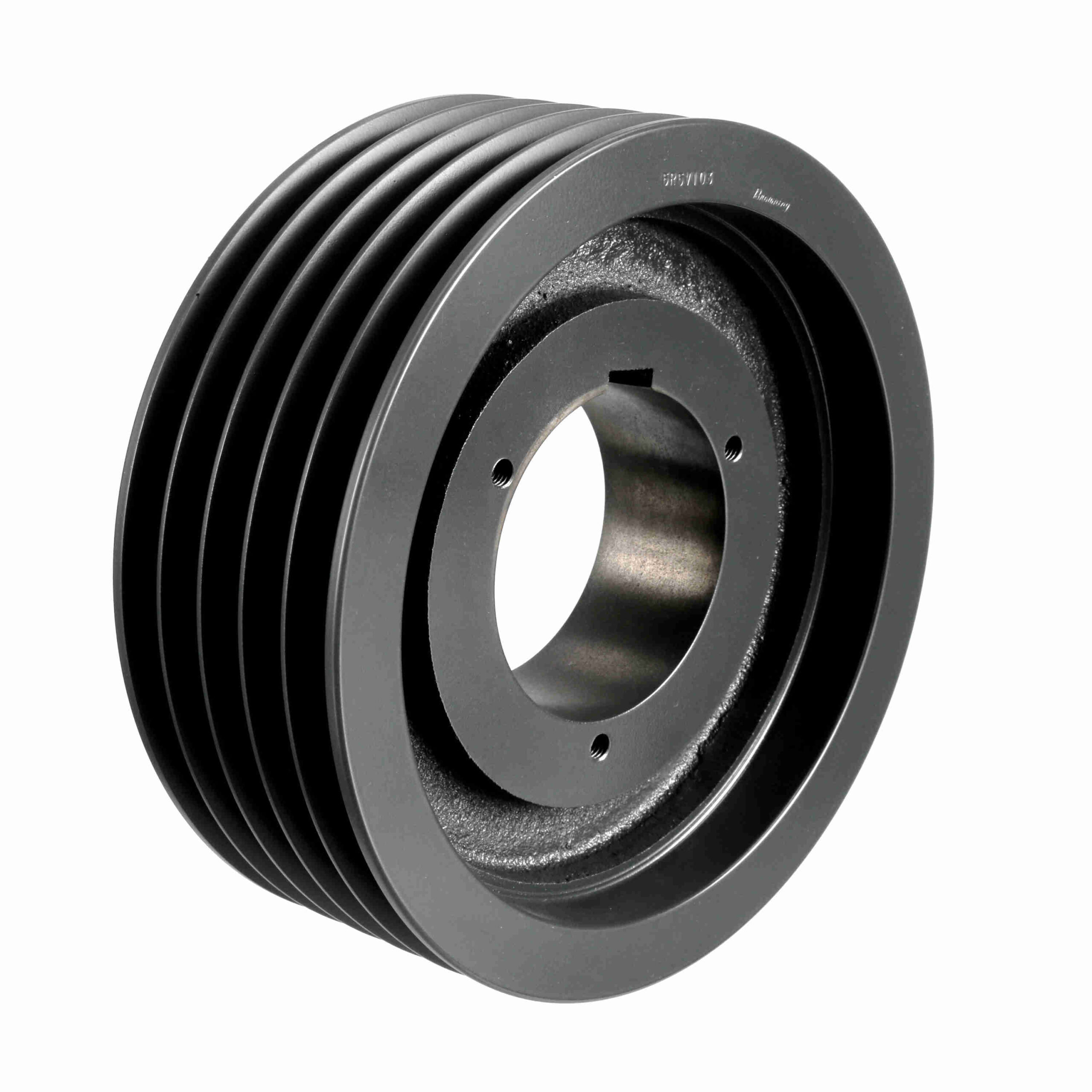

Browning 5 Groove Cast Iron Bushed Bore Multiple Sheave – 5R5V103
$532.75
Out of stock
Out of stock
| Bushing Used: | R1 | Outside Diameter (in): | 10.3 in |
|---|---|---|---|
| Overall Length (in): | 4.046875 in | Material: | Cast Iron |
| Pitch Diameter (5V): | 10.2 | Pulley Material: | Cast Iron |
| Number of Grooves: | 5 | Bore (Min) (in): | 1.125 in |
| Product Type: | Multiple Sheaves | Belt Section: | 5V |
| Bore Type: | Split Taper Bushed | Bushing Bore Range: | 1.125 - 3.750 |
| Face Width (in): | 3.75 | Keyway Size: | .750 |
| Overall Width (in): | 4.03125 | Pulley Construction: | Webbed |
| UPC: | 662289312061 | Weight: | 34.11 LB |
| Packaged Length: | 11.60 Inches | Packaged Width: | 11.70 Inches |
| Packaged Height: | 5.30 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
