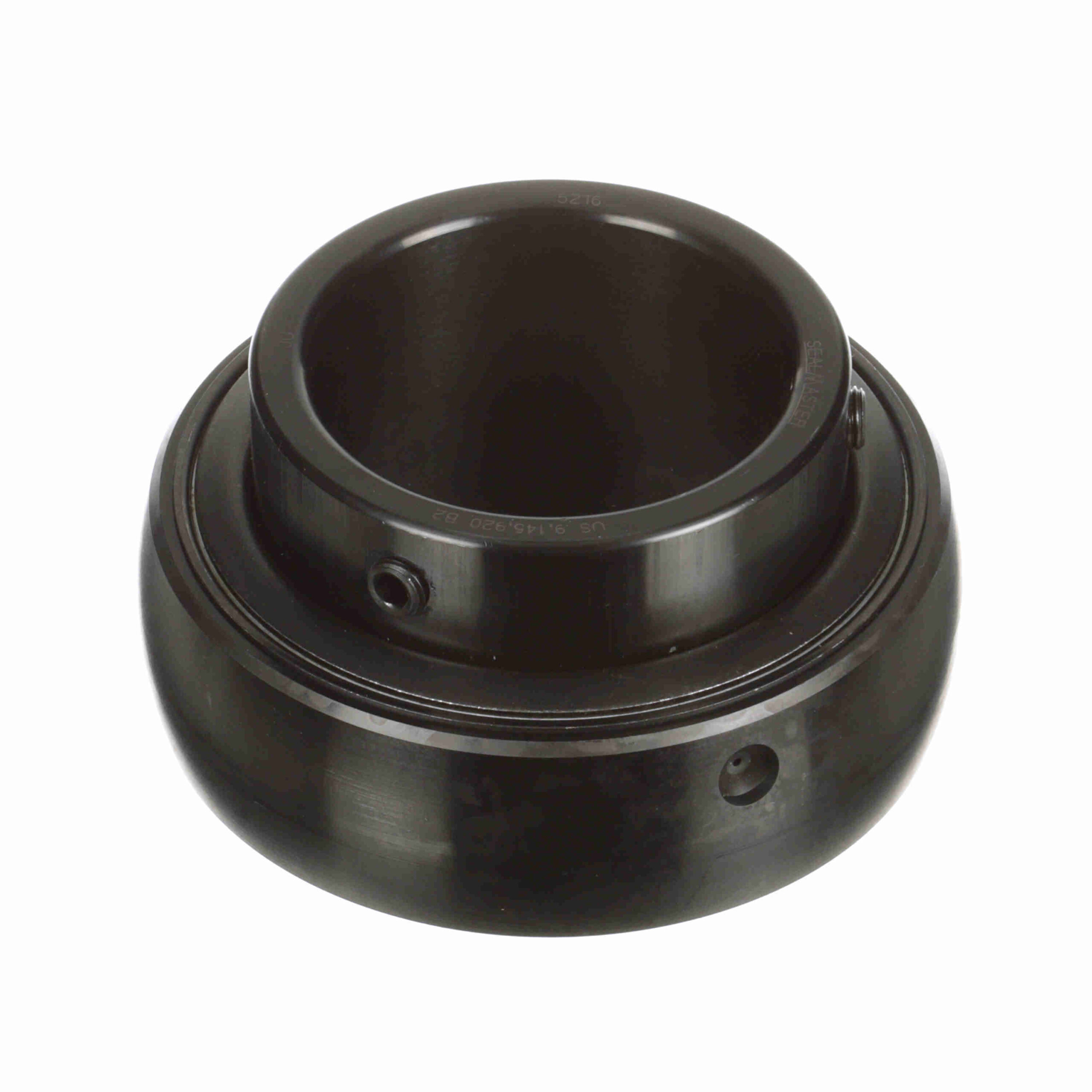

5216

Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Misalignment Type:	Static Only	Maximum Operating Temperature (F):	220 °F
Rolling Element:	Ball Bearing	Misalignment:	±2.0° Misalignment - Static Only
Radius:	0.12	Measure Units:	Metric
Platform:	Gold Line Ball Bearing	Housing Type:	Insert Only
Inner Race Heat Treat Method:	Zone-Hardened	Radial Dynamic Load Capacity (lb):	17, 412 lb
Speed (Max) (RPM):	2250 rpm	Insert Material:	52100 Bearing Steel, Black Oxided
Duty/Series:	Standard	End Cap:	No
Set Screw Thread:	7/16-20	Internal Clearance:	Standard
Bearing Insert Coating:	Black Oxide Coated	Outer Ring Land Profile:	Standard
Bore Shape:	Straight	Radial Static Load Capacity (lb):	13, 174 lb
Precision Rating:	ABEC 1	Cage Material:	Brass
Inner Race Profile:	Wide Inner Ring	Outer Race Profile:	Spherical
Fixed vs. Expansion:	No	Lubrication Type:	Lithium Complex NLGI 2 Grease
Retainer Type:	Land Riding Retainer	Type of Seal:	Felt Labyrinth Seal
Ability to Relubricate:	Yes	Locking Type:	Setscrew
UPC:	662461000519	Weight:	7.20 LB
Packaged Length:	5.75 Inches	Packaged Width:	5.63 Inches
Packaged Height:	3.63 Inches	HTC:	8482.10.5056
Country of Origin:	United States of America
