5206

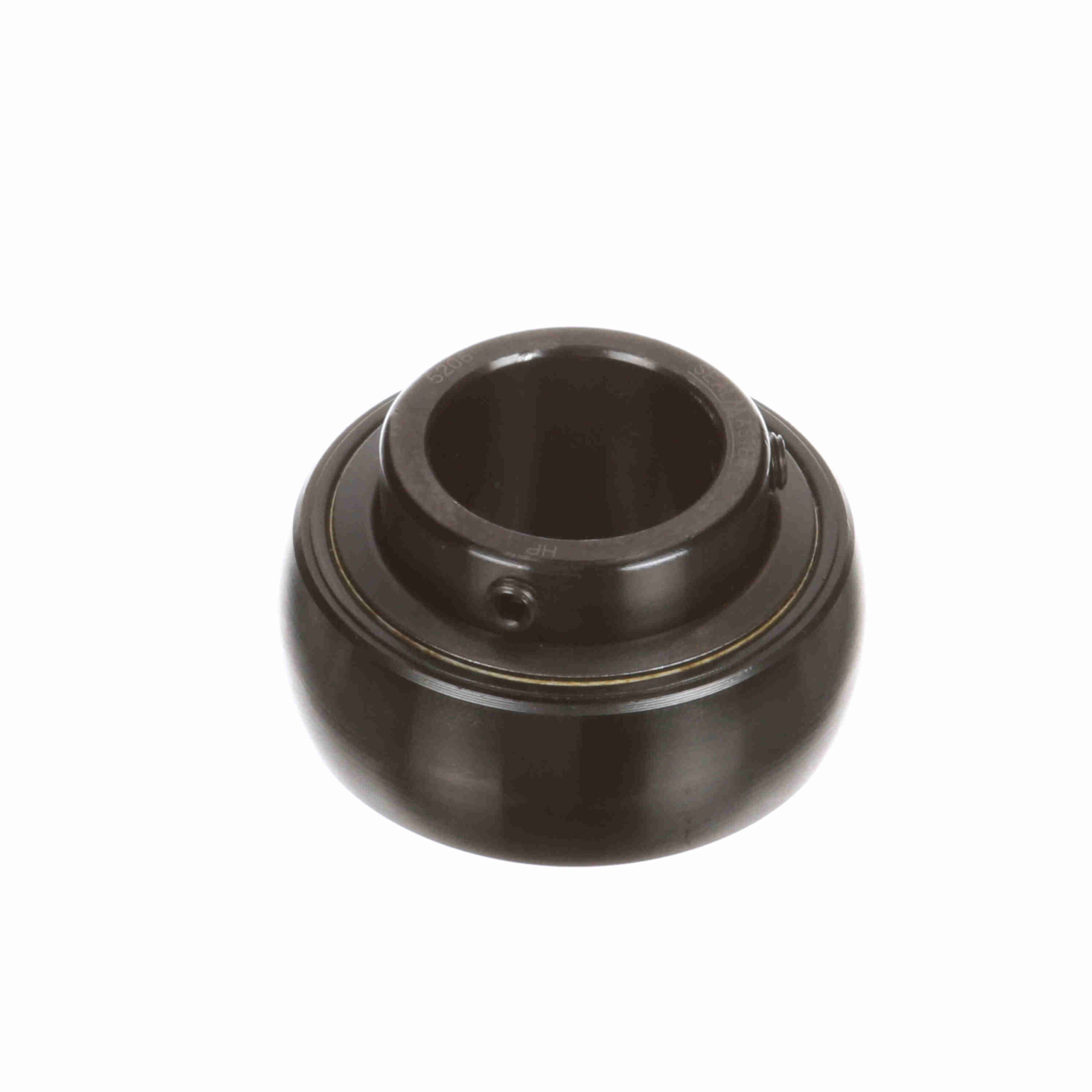

Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Inner-Race Heat-Treat Method:	Zone-Hardened	Radius:	0.04
Retainer Type:	Land Riding Retainer	Seal Type:	Felt Labyrinth Seal
Measure Units:	Metric	Bore Shape:	Straight
Set Screw Thread:	1/4-28	Maximum Operating Temperature:	220 °F
Housing Type:	Insert Only	Duty Series:	Standard
Rolling Element:	Ball Bearing	Insert Material:	52100 Bearing Steel, Black Oxided
Misalignment:	±2.0° Misalignment - Static Only	Expansion:	No
Relubricatable:	Yes	Speed (Max):	5450
Lubrication:	Lithium Complex NLGI 2 Grease	Internal Clearance:	Standard
Radial Dynamic Load Capacity (lb):	4, 381	Locking Type:	Setscrew
End Cap:	No	Outer Ring Land Profile:	Standard
Bearing Insert Coating:	Black Oxide Coated	Misalignment Type:	Static Only
Platform:	Gold Line Ball Bearing	Radial Static Load Capacity (lb):	2, 567
Cage Material:	PPS	Precision Rating:	ABEC 1
Inner Race Profile:	Wide Inner Ring	Outer Race Profile:	Spherical
UPC:	662461000151	Weight:	0.82 LB
Packaged Length:	2.75 Inches	Packaged Width:	1.56 Inches
Packaged Height:	2.75 Inches	HTC:	8482.10.5052
Country of Origin:	Mexico
