- Raceway: Asymmetric, circular grooves
- Two direction axial load carrying
- Dimensions in accordance with ISO 355:2007
3217

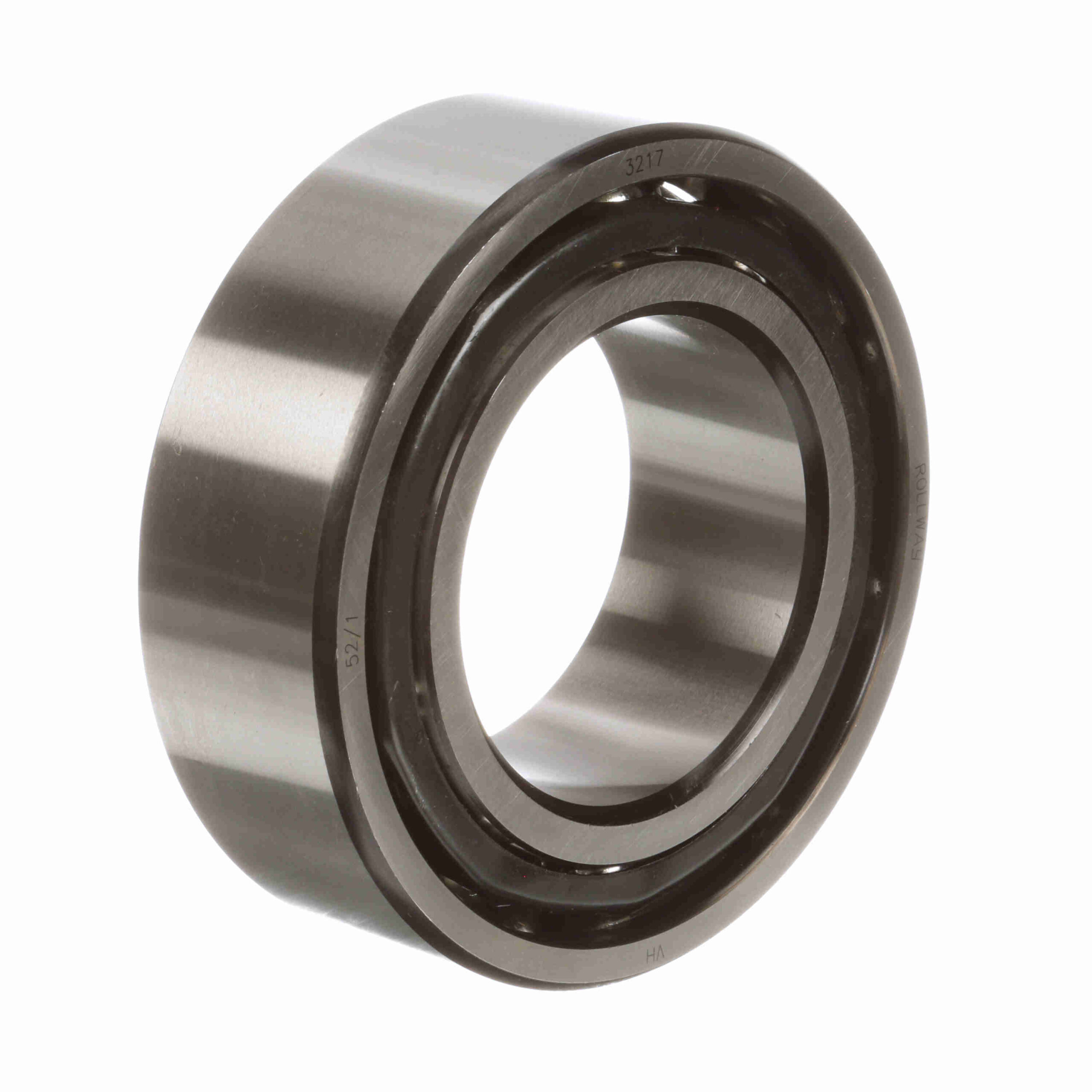

Rollway Angular Contact Ball Bearing – Double Row – Straight Bore – 3217
$828.18
Out of stock
Out of stock
| Radial Clearance: | Normal | Seal Type: | Unsealed |
|---|---|---|---|
| Contact Angle: | 30° | Series: | 3200 |
| Bore Type: | Straight | Misalignment: | No |
| Rolling Element: | Ball | Number of Rows: | 2 |
| Dynamic Load Rating (kN): | 112 kN | Material: | 52100 Bearing Steel |
| Static Load Rating (kN): | 132 kN | Cage Material: | Steel |
| Sealed: | None | Speed (Max) Oil (rpm): | 3, 600 rpm |
| Full Complement/Caged: | Caged | Speed (Max) Grease (rpm): | 2, 600 rpm |
| Duplexing: | No | Platform: | Double Row Angular Contact Ball Bearing |
| Dynamic Load Rating (lb): | 25179 lb | UPC: | 637410095489 |
| Weight: | 6.93 LB | Packaged Length: | 6.4 Inches |
| Packaged Width: | 6.9 Inches | Packaged Height: | 2.4 Inches |
| Country of Origin: | China |
