- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
50Q44

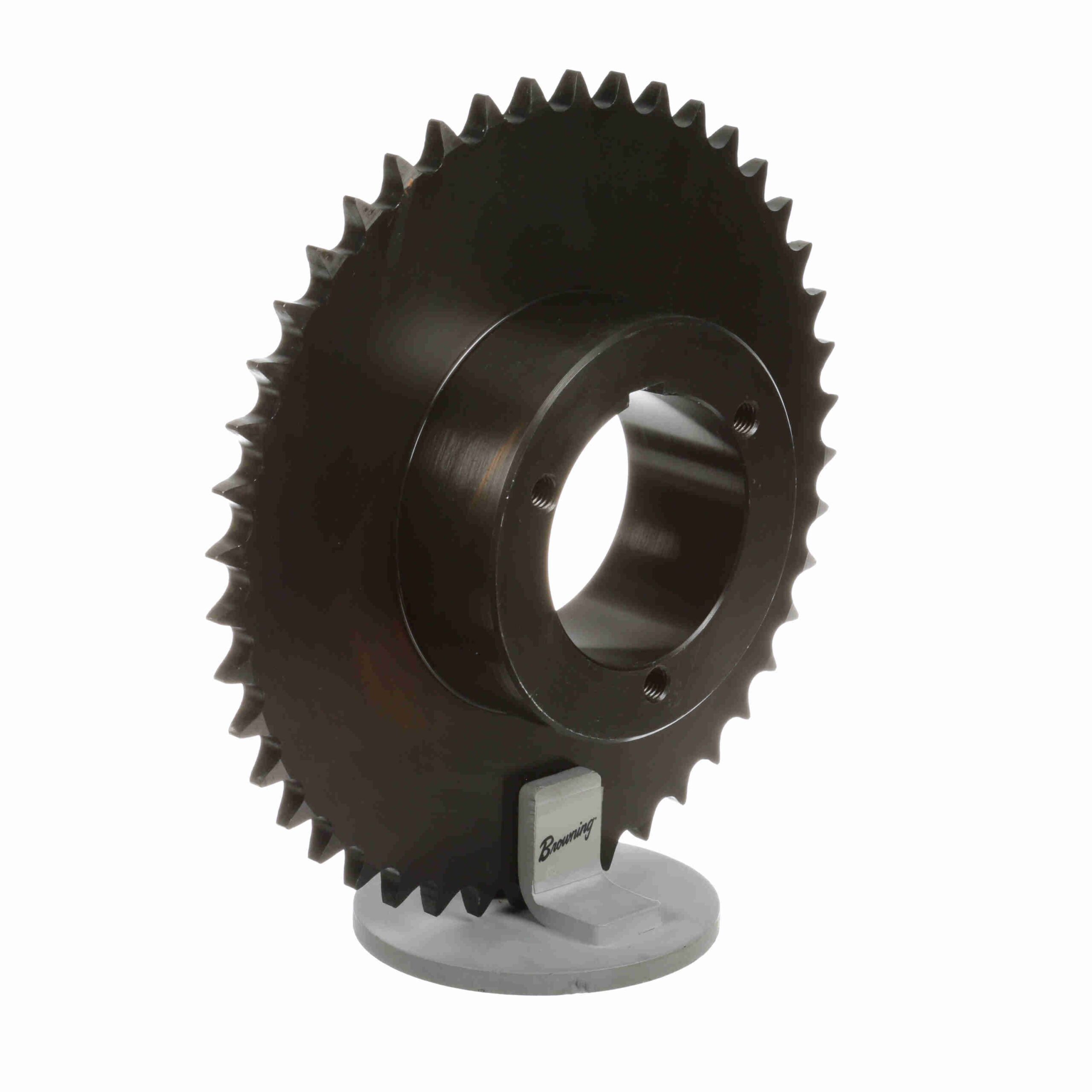

Browning Steel Bushed Bore Roller Chain Sprocket – 50Q44
$389.75
Out of stock
Out of stock
| Material: | Steel | Bushing Used: | Split Taper |
|---|---|---|---|
| Bore (Min) (in): | 0.75 in | Pitch Diameter (in): | 8.761 in |
| Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain | Number of teeth: | 44 |
| Product Type: | Bushed Roller Chain Sprocket | Bore (Max) (in): | 2.6875 in |
| Chain Pitch (in): | 0.625 in | Bore Type: | Bushed Bore |
| Outside Diameter (in): | 9.114 in | Overall Length (in): | 2.828125 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Maximum Bore (in): | 2.6875 | Minimum Bore (in): | 0.75 |
| Width Across Tooth Sets: | 0.343 | Pitch Type: | Single |
| Number of Hubs: | 1 | UPC: | 662289165704 |
| Weight: | 9.11 LB | Packaged Length: | 10.30 Inches |
| Packaged Width: | 10.50 Inches | Packaged Height: | 2.80 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
